3-55
1
2
3
4
5
6
7
8
9
10
ENGINE

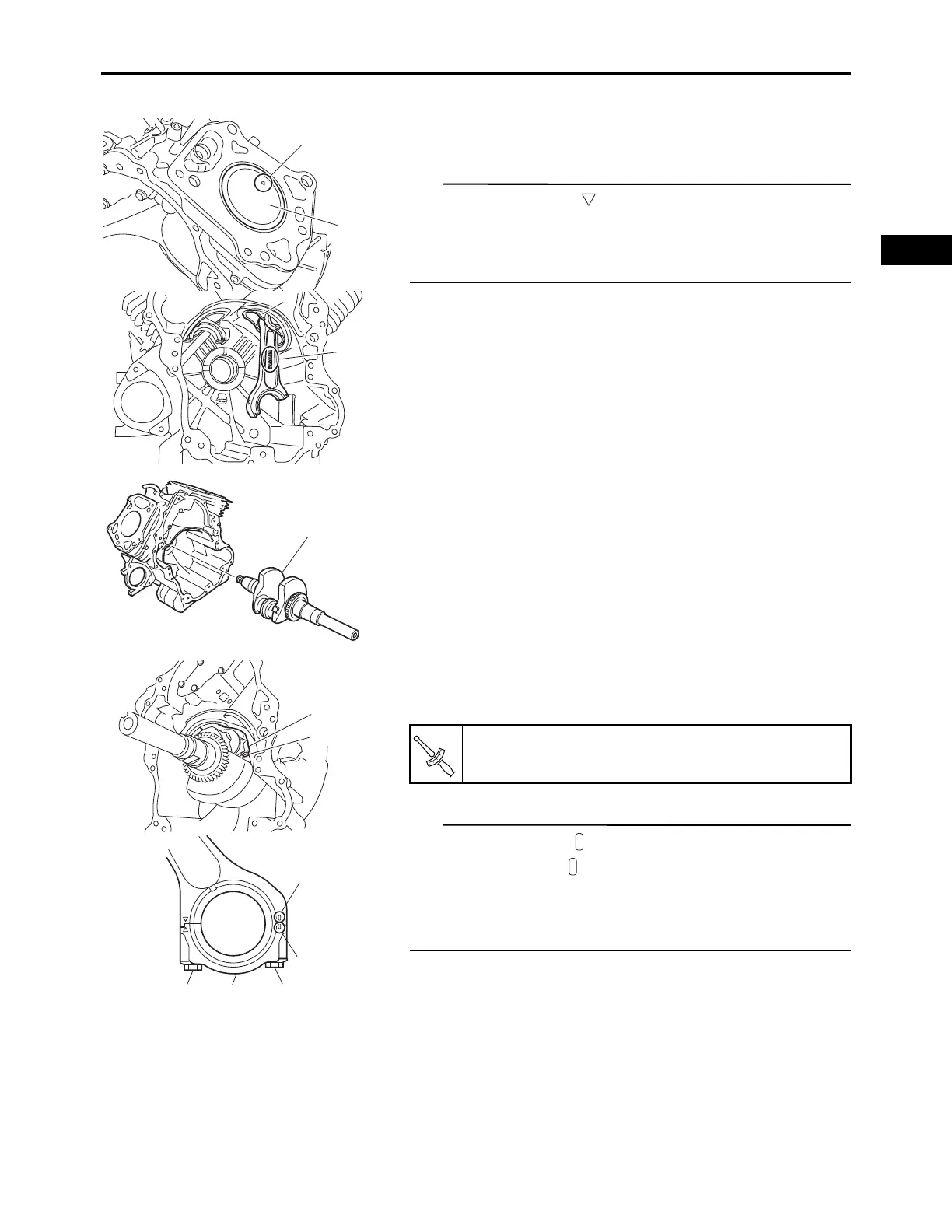

PISTONS, CAMSHAFT, CRANKCASE, AND CRANKSHAFT
5. Check:
• Piston #2 with the connecting rod #2 “1” position.
TIP
• Make sure that the “ ” mark “a” on the piston #2 head
faces toward the flywheel.
• Make sure that the “YAMAHA” mark “b” on the connect-
ing rod #2 faces toward the crankcase cover 1.
6. Install:
• Crankshaft “1”
7. Install:
• Connecting rod cap #1 “1”
• Connecting rod cap #1 bolts “2”
TIP
• Make sure that the “ ” mark “a” on the connecting rod #1
is aligned with the “ ” mark “b” on the connecting rod cap
#1.
• Tighten the connecting rod cap #1 bolts alternately two
to three times.
a
1
1
b
1
2
1
221
a
b
Connecting rod cap bolt:
20 N·m (2.0 kgf·m, 14 lb·ft)
T
R
.
.
