4.3
Starting Sample Program - MPE720 Ver 5.
4-31
4
System Startup and Sample Programs
■
Logging On Online
When using MPE720 Ver 5.
, logging on is performed for each Controller Folder. Controller Folders that
have not been logged onto cannot use the MPE720 functions.
6.

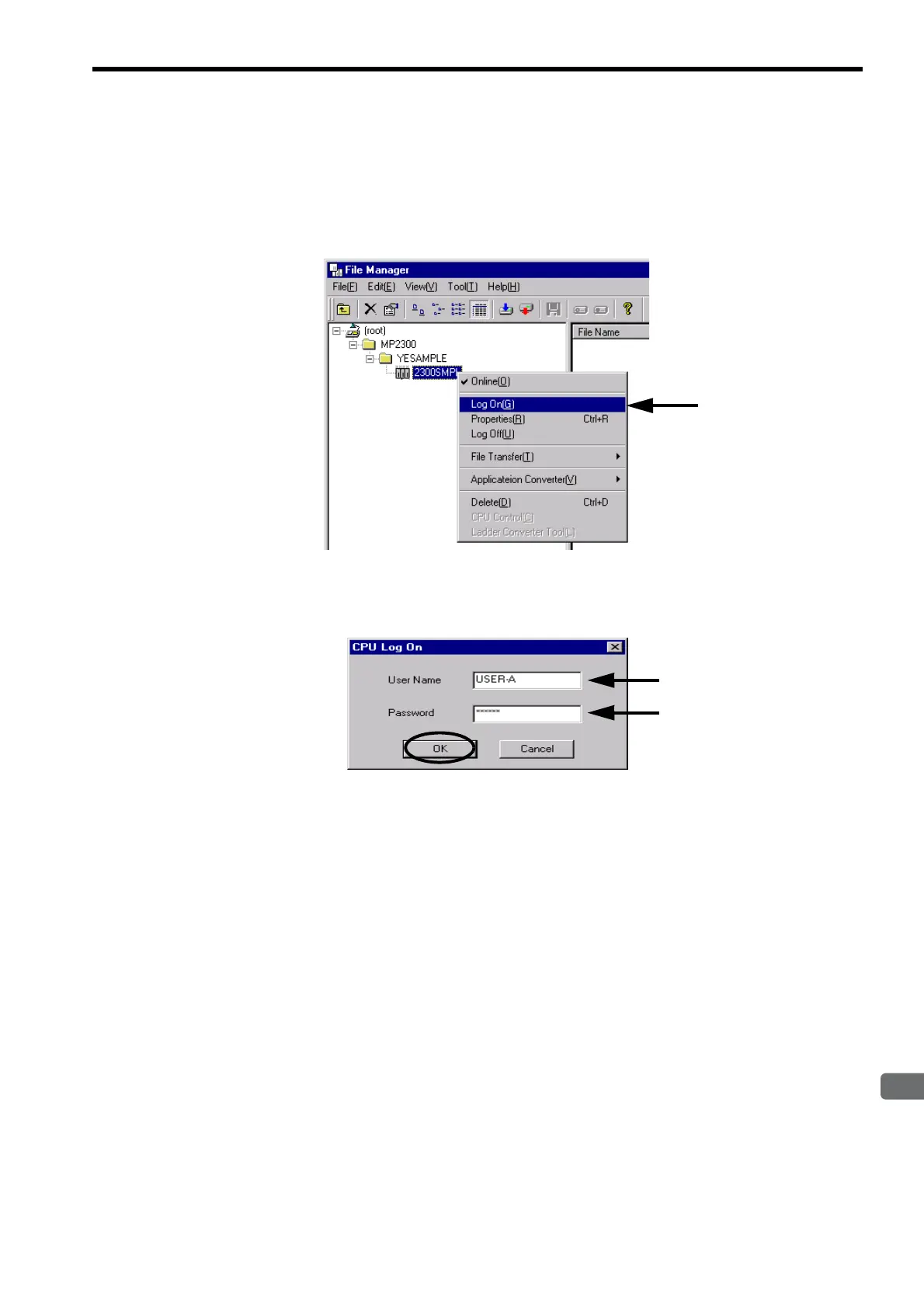

Right-click on the Conroller Folder that was selected in step 1 and select Log On from the pop-up
menu that is displayed.
The CPU Log On Dialog Box will appear.
7.
Enter USER-A (default) under User Name and Password, and click the OK Button.
Logon will be executed for the selected Controller folder, and the dialog box will close.
The user name and password may have already been changed. Ask the system administrator beforehand.
The user name and password are changed from the File menu in the File Manager Window. Refer to Machine
Controller MP900/MP2000 Series MPE720 Software for Programming Device User’s Manual (Manual No.:
SIEPC88070005) for details.
To Next Page
