4
System Startup and Sample Programs
4.3.2
Reading Sample Programs and Setting and Saving Parameters
4-32

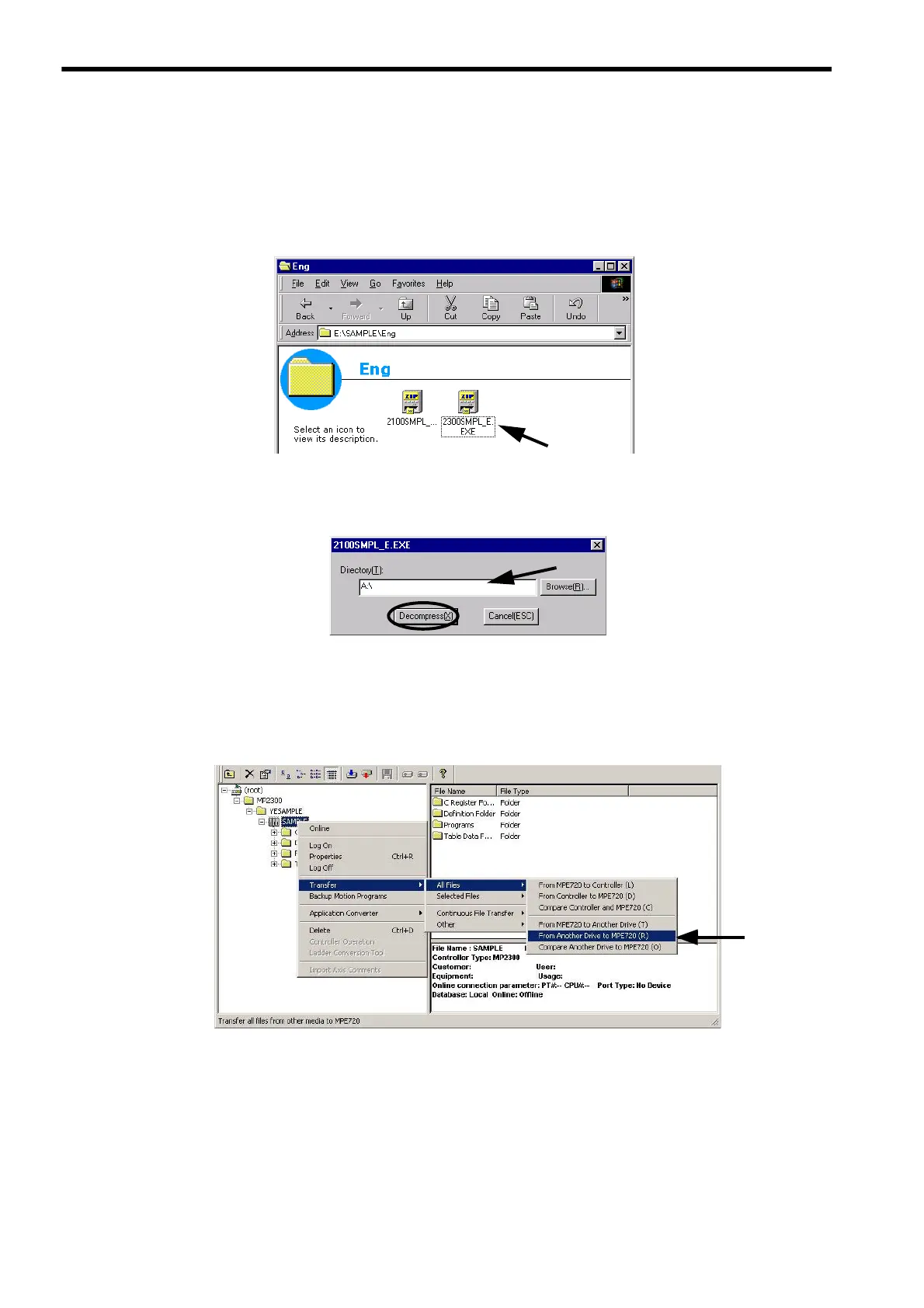

( 2 ) Loading the Sample Programs
The sample programs on the MPE720 system CD-ROM will be decompressed on the personal computer and loaded to
the Controller Folder. Set the MPE720 system CD-ROM in the CD-ROM drive of the personal computer.
1.
Use Explorer to open the SAMPLE - Eng folders and double-click the 2300SMPL_E.EXE icon.
A dialog box for specifying where to unpack the file will appear.
2.
Specify the destination path (a path other than File Manager) and click the Decompress Button.
The sample program will be unpacked and saved to the specified path and a folder called 2300SMPL_E will be
created.
3.
Right-click on the Controller folder where the sample program is to be saved in File Manager Window
and select Transfer - All Files - From Another Drive to MPE720 in the pop-up menu that is
displayed.
An execution confirmation dialog box will appear.
To Next Page
