4.3
Starting Sample Program - MPE720 Ver 5.
4-33
4
System Startup and Sample Programs
4.

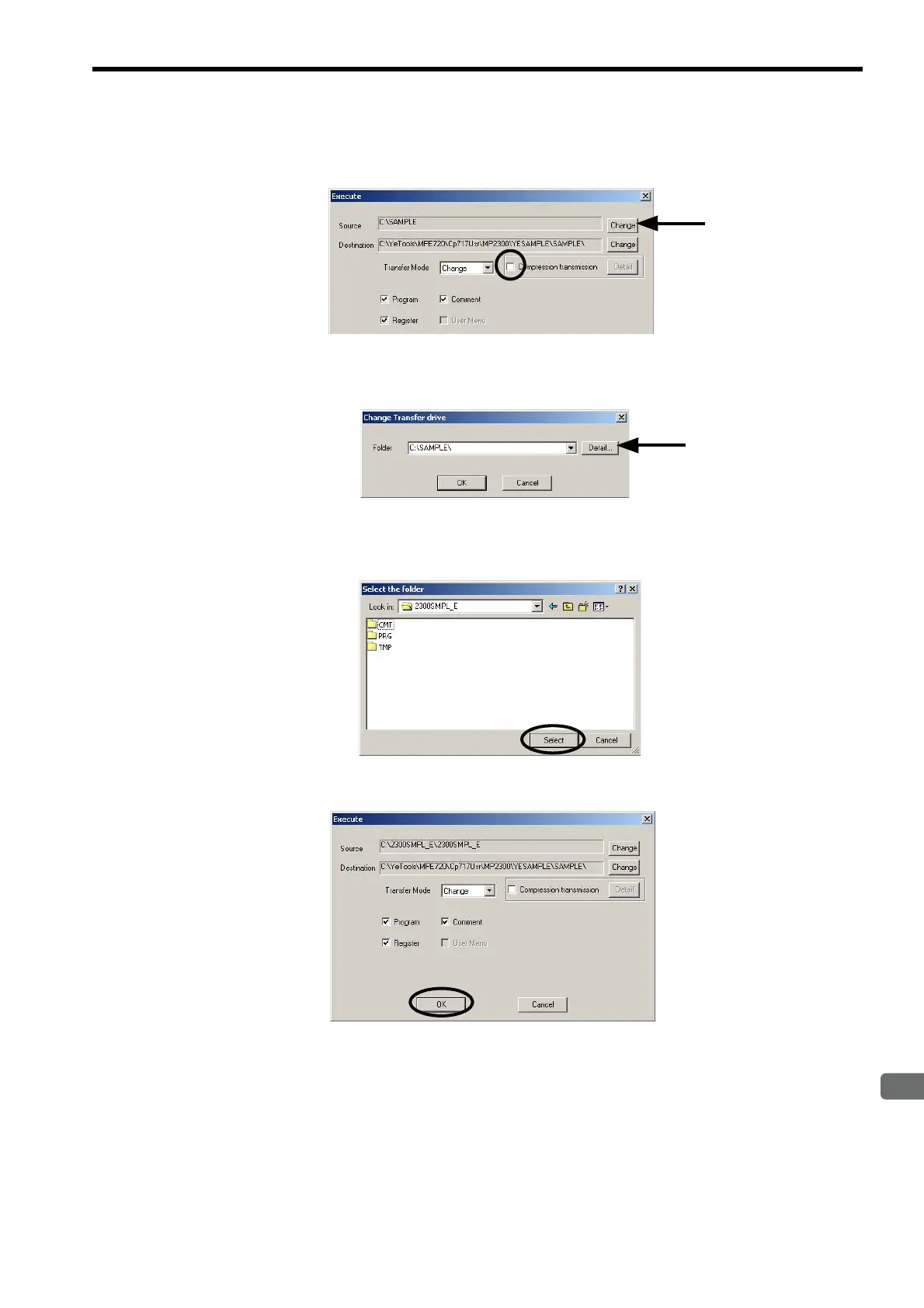

Deselect Compression transmission. Check the Source. If the Source is different from the decompression
destination folder, click the Change Button and continue to step 5. If the Source is correct, move to step 6.
5.
The Change Transfer Drive Dialog Box will appear. Click the Detail Button to open the Select the
Folder Dialog Box.
6.
Three sub-folders under the 2300SMPL_E folder will appear. Click the Select Button to close the
dialog box.
7.
The Execute Dialog Box will appear. Click the OK Button.
The Execution Status Dialog Box will appear. Once the transfer has been completed, a confirmation dialog box
will appear. Click the OK Button.
