4.3
Starting Sample Program - MPE720 Ver 5.
4-37
4
System Startup and Sample Programs
2.

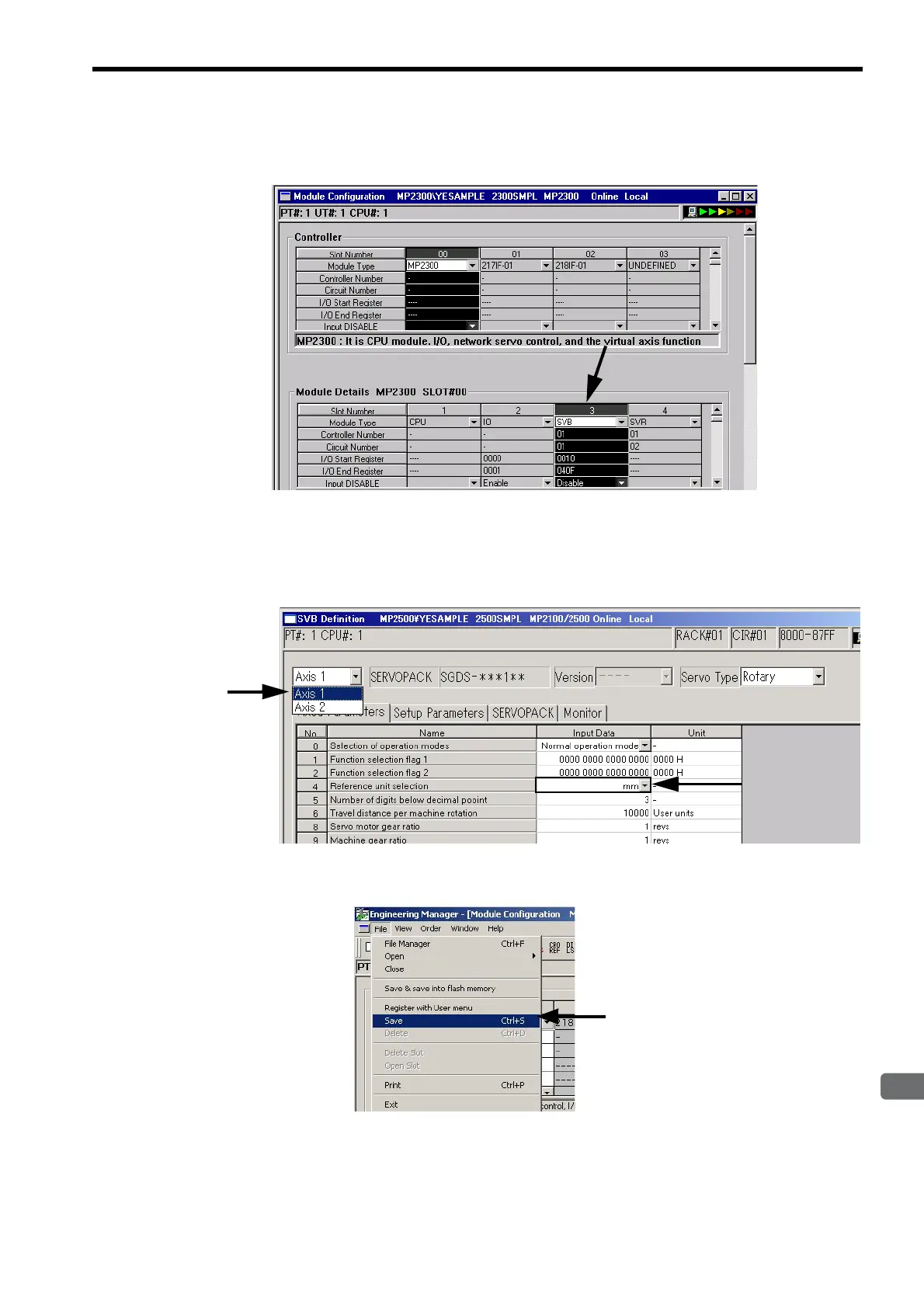

Select 00 in the Controller Area and double-click the 3 in the Module Details MP2300 SLOT
≠
00 Area
in the Module Configuration Window.
The SVB Definition Window with Fixed Parameters Tab Page will appear.
3.
Set the fixed parameters for axis 1.
Select Axis 1 from the axis selection box at the top-left of the window and select mm under No. 4 Reference unit
selection on the Fixed Parameters Tab Page.
4.
In the Engineering Manager Window, select File - Save to save the settings for axis 1 fixed
parameters.
5.
Follow steps 3 and 4 to set and save the fixed parameters for axis 2 as well.
The process for saving fixed parameter settings has now been completed. Next, save the SERVOPACK parameters.
To Next Page
