System Startup and Sample Programs
4.3.2
Reading Sample Programs and Setting and Saving Parameters
4-36
3.

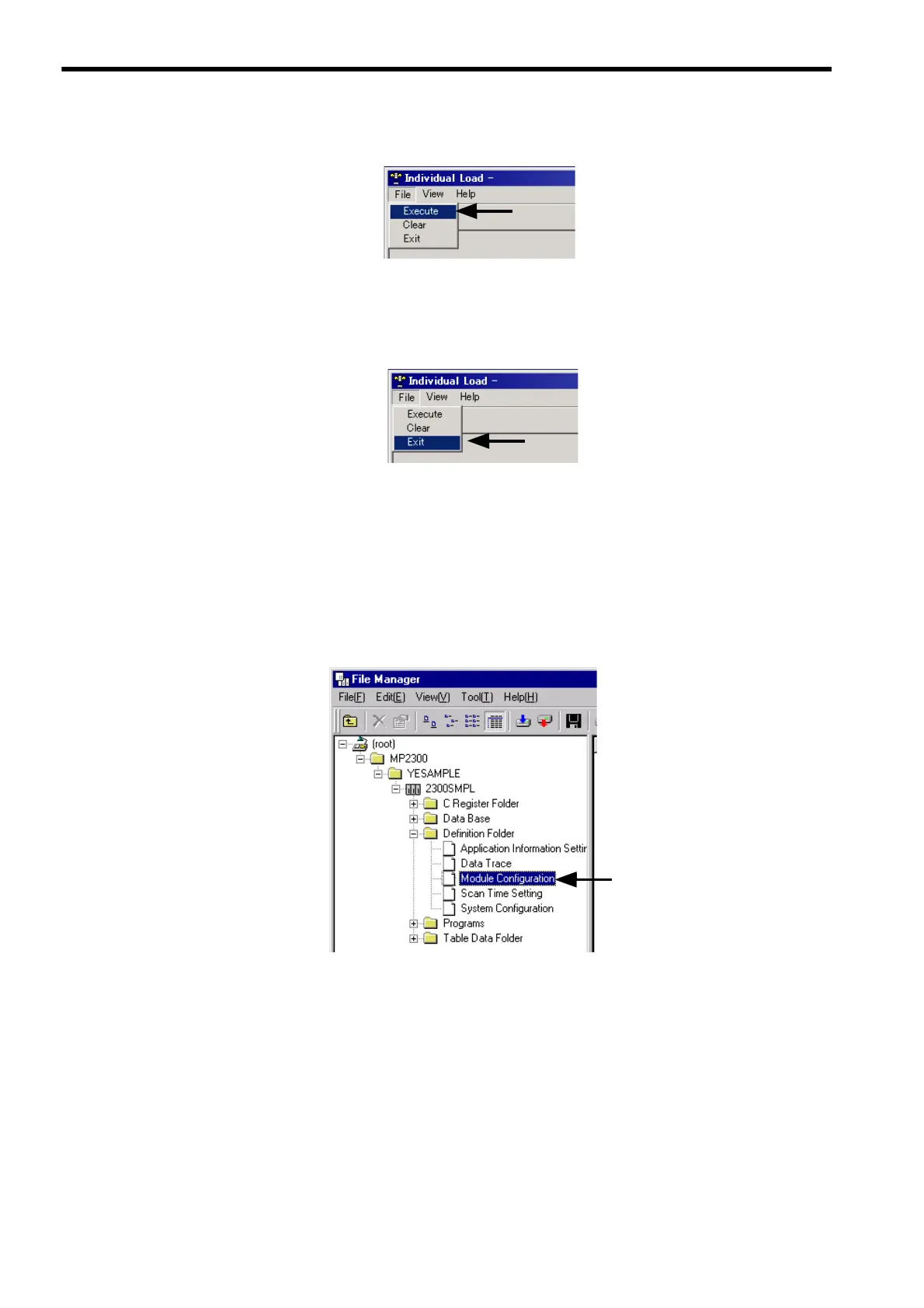

Select File - Execute.
Click the Ye s Button in the confirmation dialog box to start the file transfer. When the transfer has been
completed, a confirmation dialog box will appear again. Click the OK Button.
4.
Select File - Exit in the Individual Load Window to exit the transfer.
( 4 ) Set and Save Motion Fixed Parameters
This section describes the procedure for setting motion fixed parameters for axes 1 and 2 to match the sample program .
When using a program, set the fixed parameters to match the devices being used. Refer to Machine Controller
MP2000 Series Built-in SVB/SVB-01 Motion Module User’s Manual (Manual No.: SIEPC88070033).
1.
Double-click the 2300SMPL Controller Folder - Definition Folder in the File Manager Window to
display the five folders contained within it. Double-click the Module Configuration Folder.
.
The Enginnering Manager Window will open and the Module Configuration Window will appear.
