Starting Sample Program - MPE720 Ver 5.
4-35
4
System Startup and Sample Programs
2.
Select the programs to be transferred. For programs with a Details Button next to them, click the
Details Button and select the individual function programs for the program listed in the Set Details
Dialog Box that is displayed.
In this example, DWG, Scan Time, Data Trace, Group Definition, and Motion Main Program are
selected, and detailed settings are made for DWG and Motion Main Program.

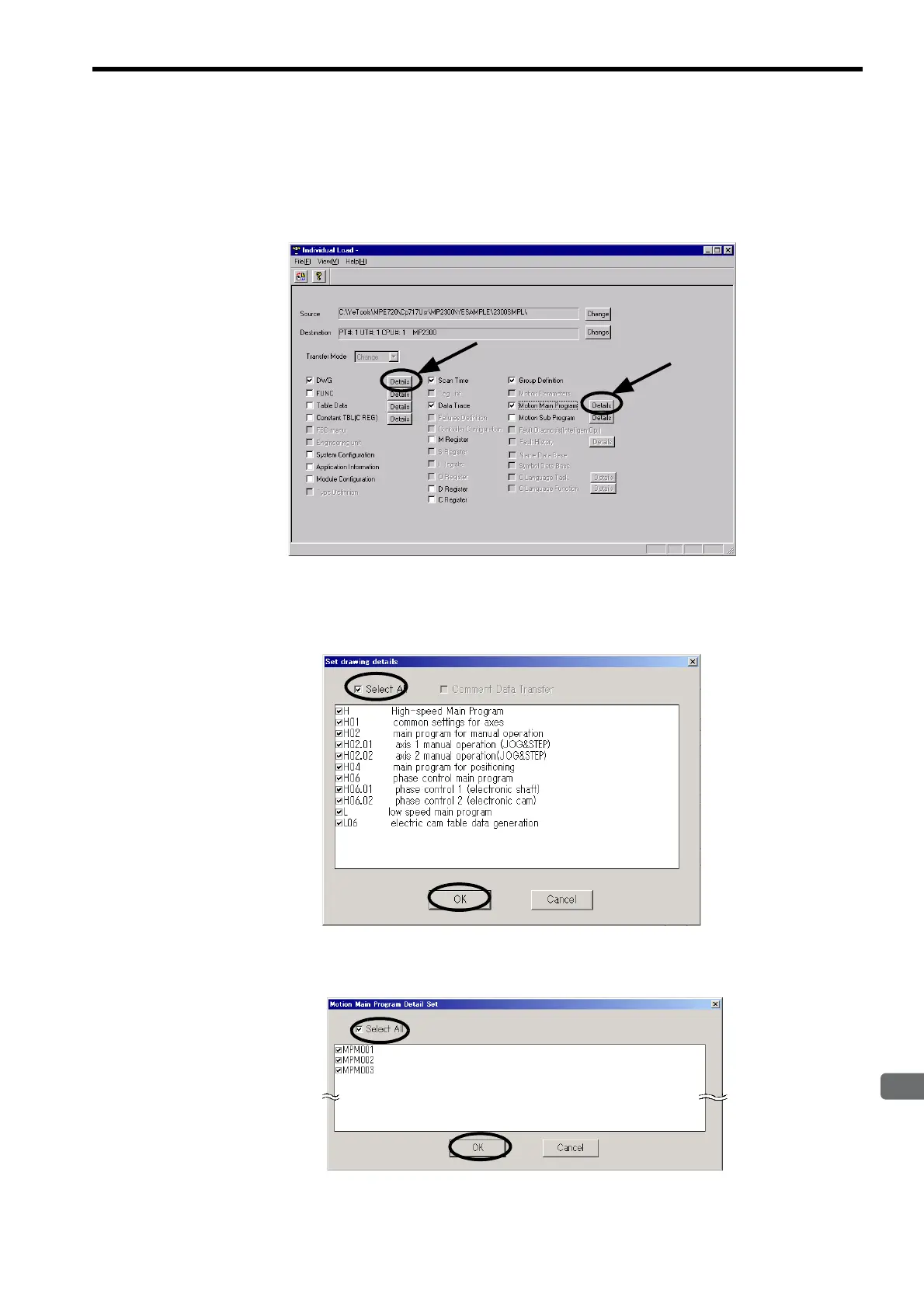

a) Set Drawing Details Dialog Box
The details for the DWG sample program are shown below. Select the programs to be transferred and click
the OK Button. If Select All is selected, all programs for the DWG program will be selected. In this example,
select Select All and click the OK Button to return to the Individual Load Window.
b) Motion Main Program Detail Set Dialog Box
The details for the Motion Main Program of sample program are shown below.
In this example, select Select All and click the OK Button to return to the Individual Load Window.
