4.3
Starting Sample Program - MPE720 Ver 5.

4-39
4
System Startup and Sample Programs
5.

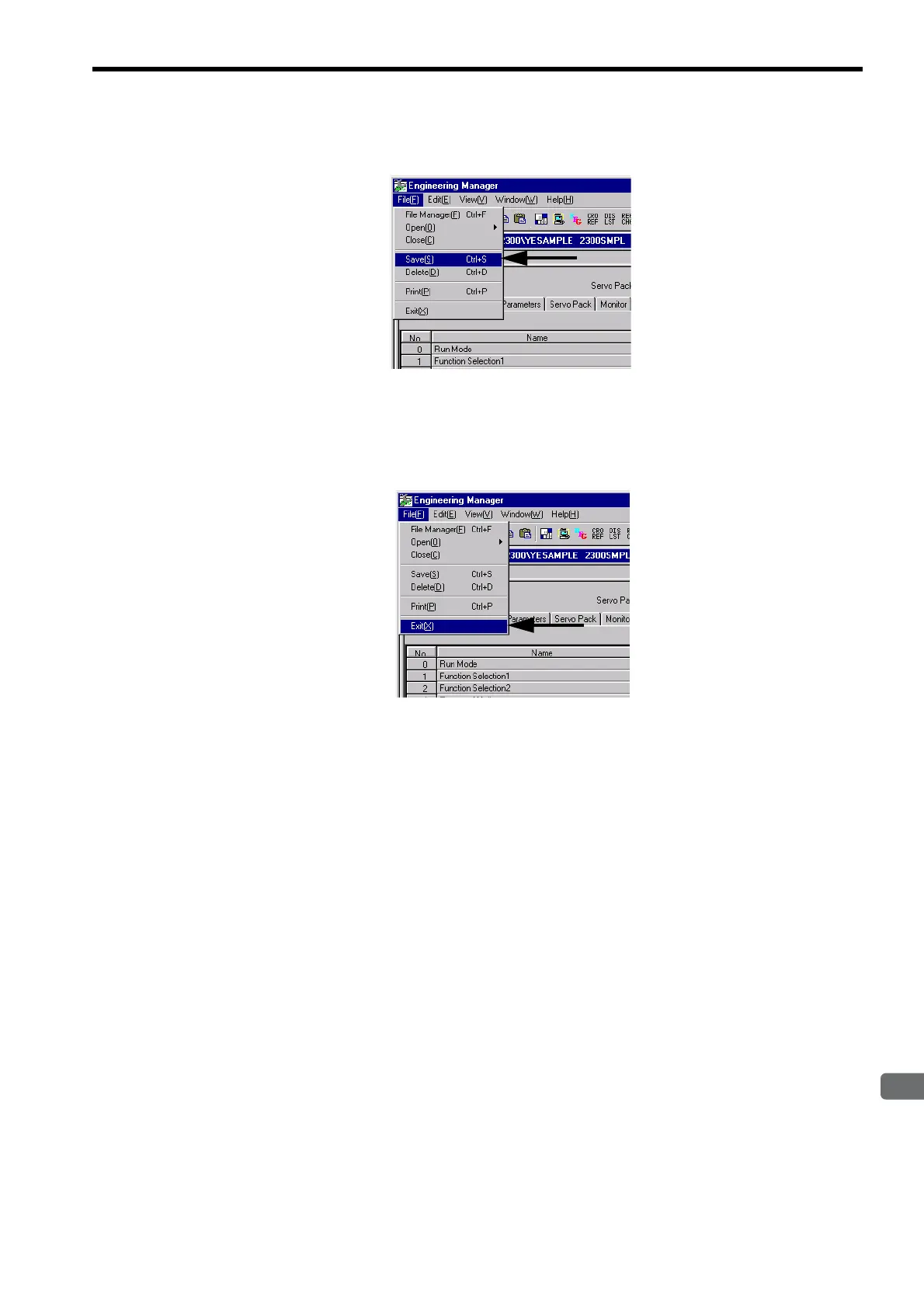

Select File - Save to save the SERVOPACK settings for axis 1 to the MP2300.
6.
Follow steps 2 to 5 to write and save the SERVOPACK current position for axis 2 as settings data as
well.
7.
Select File - Exit to exit the setting and saving process in the Engineering Manger Window.
