4
System Startup and Sample Programs
4.3.2
Reading Sample Programs and Setting and Saving Parameters
4-40

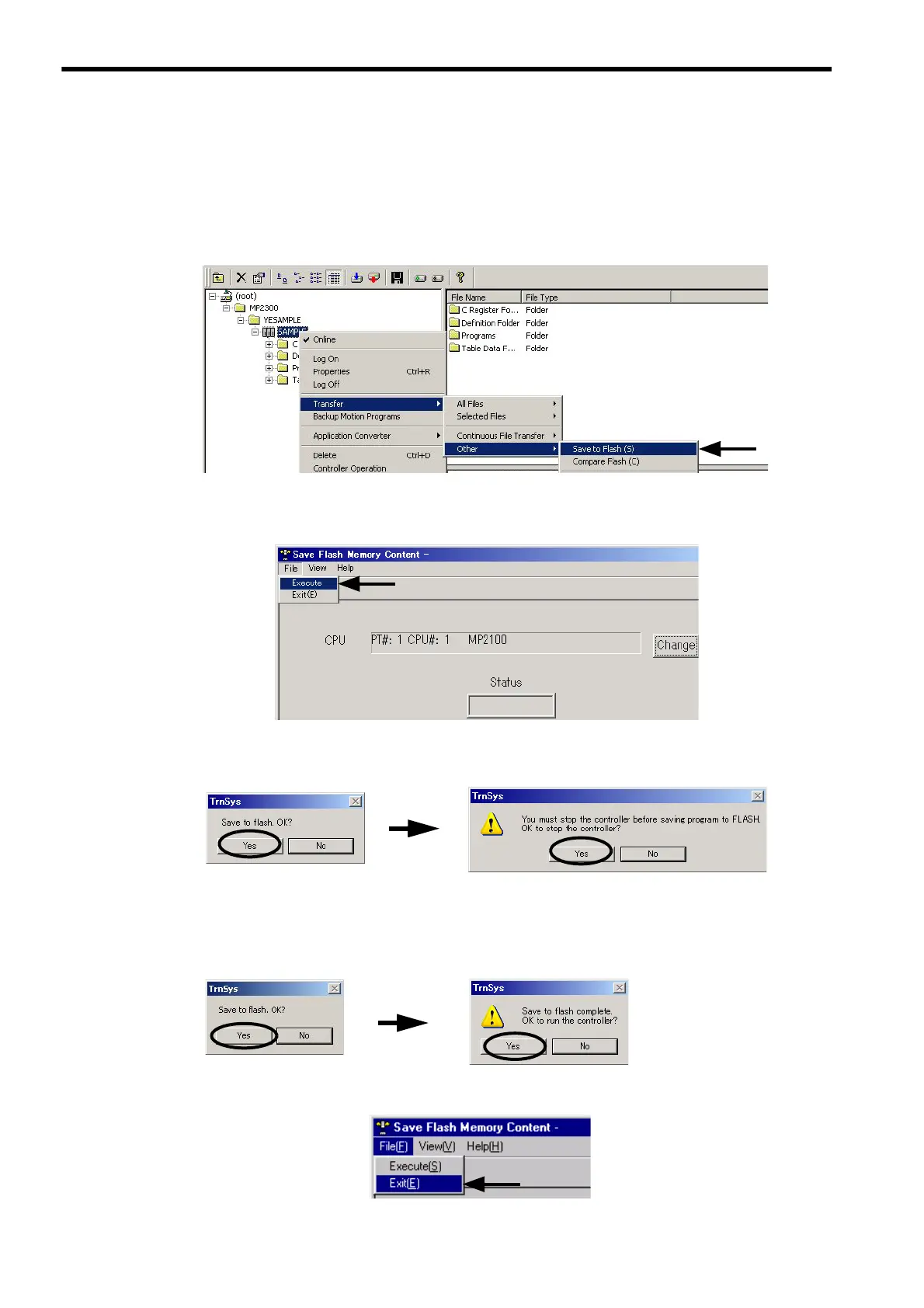

( 6 ) Saving to Flash Memory
Save sample programs that have been transferred individually to the MP2300 to the MP2300 flash memory using the
procedure below.
1.
Right-click the Controller Folder in which the sample programs have been saved and select Transfer -
Other - Save to Flash from the pop-up menu that is displayed.
The Save Flash Memory Content Window will appear.
2.
Select File - Execute.
3.
Click the Yes Button in the displayed confirmation dialog box, and then click the Yes Button in the
TrnSys Dialog Box that is displayed.
4.
Another confirmation dialog box will be displayed. Click the Yes Button. The data will be saved to
flash memory. When saving to flash memory has been completed, a dialog box to confirm that the CPU
is to be run will be displayed. Click the Yes Button. Then the display will automatically return to the
Save Flash Memory Content Window.
5.
Select File - Exit to exit saving to flash memory.
To Next Page
