( 7 ) Dumping All Data
Execute All Program File Dump to back up to a personal computer the module configuration definitions automatically
detected by the MP2300 during self-configuration and edited programs. The MP2300 program data and the program
data in the personal computer hard disk are synchronized when all programs are dumped.
1.

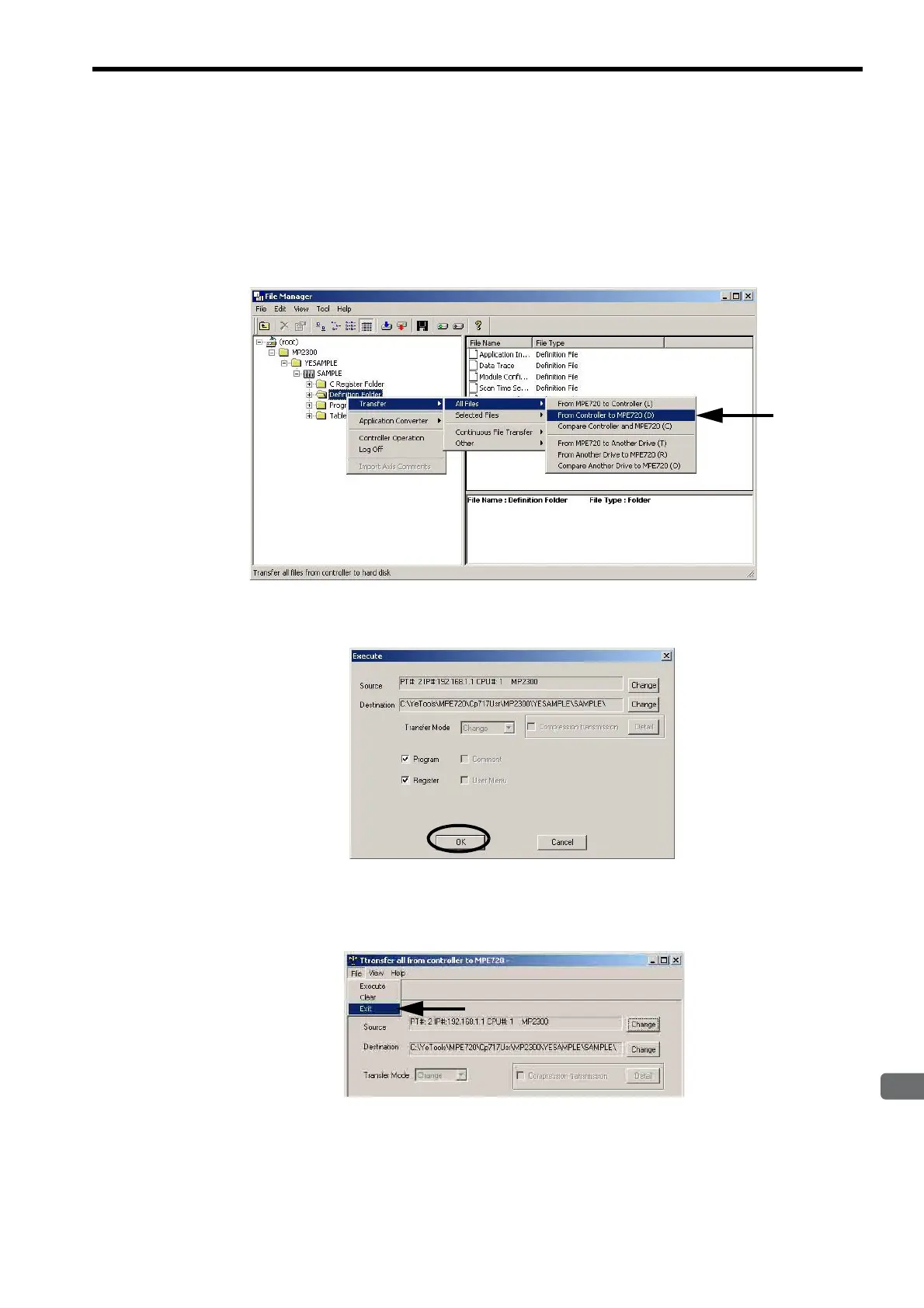

Right-click the Controller Folder in which the sample programs have been saved, and select Transfer
- All Files - From Controller to MPE720 from the pop-up menu that is displayed.
An execution confirmation dialog box will appear.
2.
Check the details and click the OK Button.
The file transfer will start. A notification dialog box will be displayed when the transfer has been completed.
Click the OK Button in the dialog box to display the All Dump Window.
3.
Select File - Exit to stop the dumping of all data.
Now, the sample program is available. Refer to 4.4 Checking Sample Program Operation on page 4-44 to check
the sample program operation.
