5.4
Self-configuration
5-35
5
Outline of Motion Control Systems
The Engineering Manager Window will start and the Module Configuration Window will appear.
2.

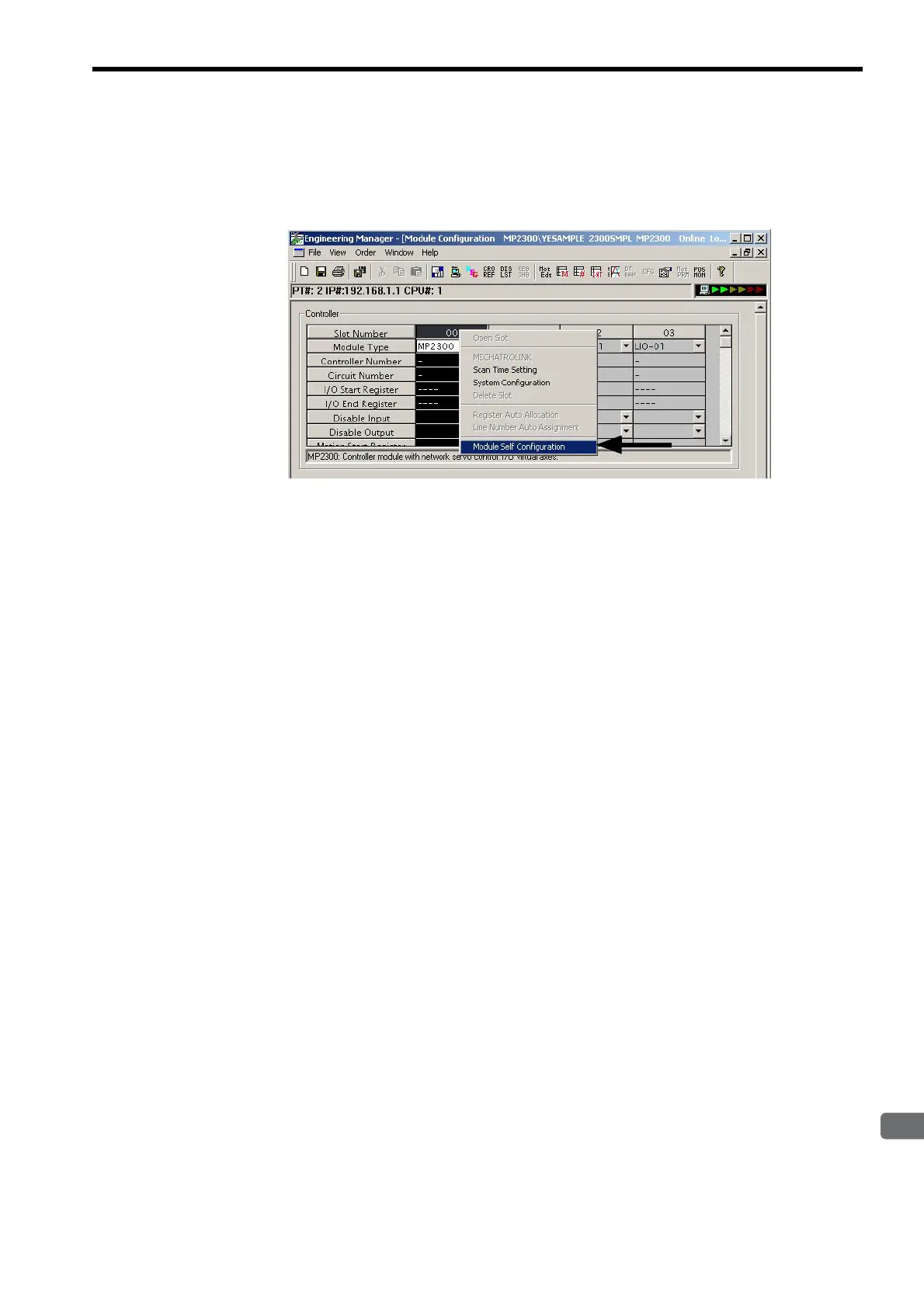

Right-click the Module for which devices have been added and select Module Self Configuration
from the pop menu to execute self-configuration.
The RUN LED indicator will blink and a message indicating that the module configuration definitions are being
created will be dispayed. Once self-configuration has been completed, the message will disappear and the RUN
LED indicator will return to its original state.
When MP2300 is selected as an individual module, executing Module Self Congifutation will configure all the
modules.
3.
Select File - Save & Save to Flash from the main menu. A confirmation message will appear. Click
the Yes Button to save the module configuration definitions.
