Current Values and Set Values (Input Data) in the SVB Definition Window
A-10
( 6 ) Changing Parameters in the SERVOPACK Tab Page

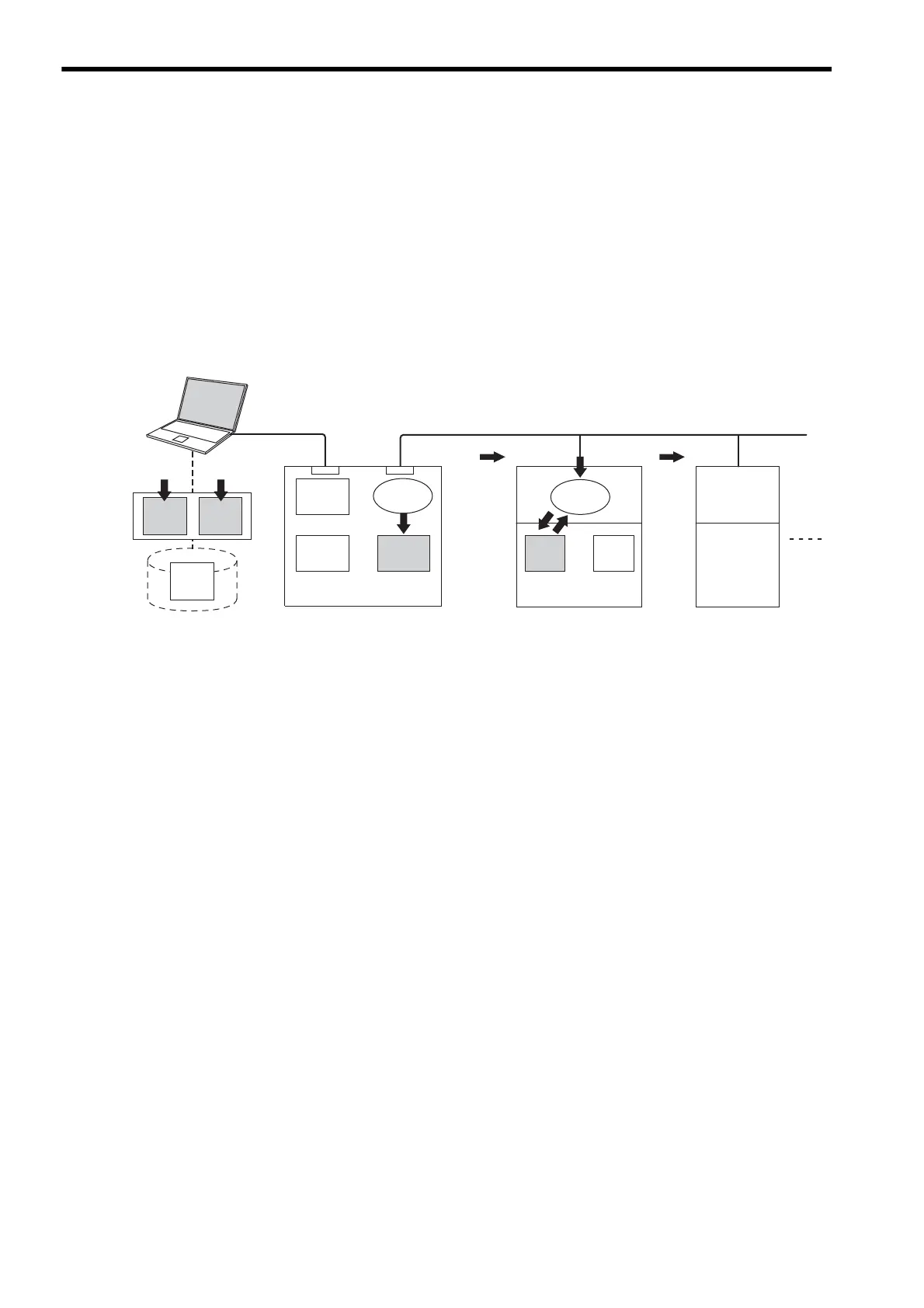

The data flow for SERVOPACK parameters is as follows when parameters for the cursor position are changed from the
SERVOPACK Tab Page in the SVB Definition Window for MPE720:
• The MPE720 writes parameters of the relevant axis to the followings when the ENTER Key is pressed on the
computer. (The parameters other than those of the relevant axis will not be written.)
• Input Data (set data) on the SERVOPACK Tab Page
• SDRAM of the MP2300
• RAM of the SERVOPACK
• After having completed writing, the MPE720 updates the values in Input Data on the SERVOPACK Tab Page with
the parameter values stored in the RAM of the SERVOPACK.
