B.1
Operations and Parameter Data Flow
A-11

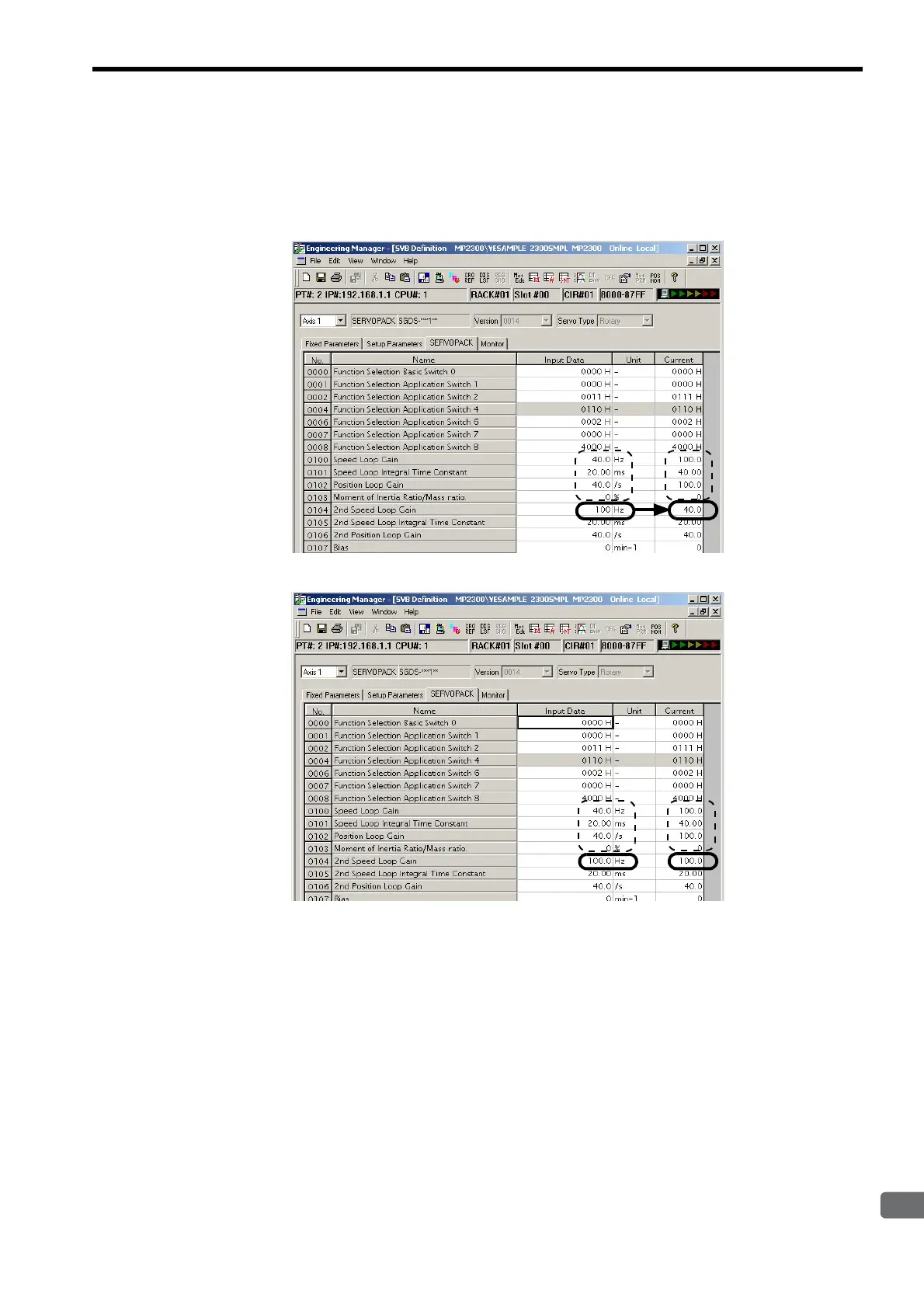

The following figure shows a display example after having changed the value (2nd Speed Loop Gain) in Input Data on
the SERVOPACK Tab Page. After having pressed the ENTER Key, the values of Speed Loop Gain, Speed Loop Inte-
gral Time Constant, and Position Loop Gain (boxed in dotted line) in Input Data remain different from the values in
Current Value since the parameters other than the one that has been changed are not written.
After having
pressed ENTER
Key
To Next Page
