4.2
Starting the Sample Program - MPE720 Ver 6.
4-15
4
System Startup and Sample Programs
3.

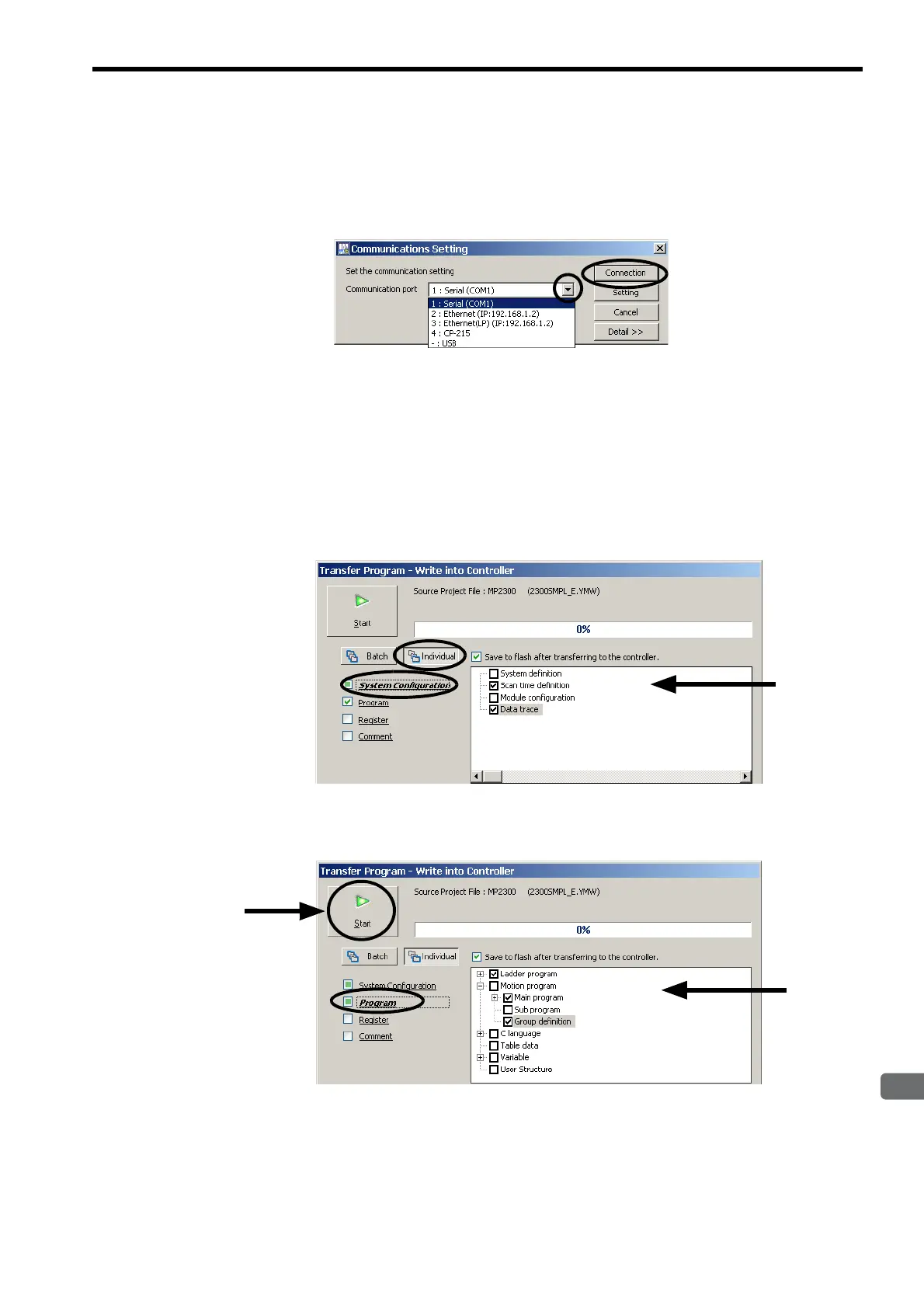

Click the
▼
Button, and select a port to be used for communications with the MP2300 from the drop-
down list box. Then, click the Connection Button.
In the drop-down list box, the details of each port set in the procedure described in 4.1.4 Setting and Saving
Communication Process (Communication Manager) on page 4-6 will be displayed.
The MP2300 and your computer will be connected online.
4.
Select Online - Write into Controller in the menu bar.
The Transfer Program - Write into Controller Dialog Box will appear.
5.
Click the Individual Button to select an individual file transfer, and click the Save to flash after
transferring to the controller Check Box to clear it. Then, select the System Configuration Check
Box. Select the Scan time definition and Data trace Check Boxes from the list of files that will be
displayed on the right.
6.
Select the Program Check Box. Then, select the Ladder program, Main program and Group
definition Check Boxes under Motion Program. Click the Start Button.
A message box will appear and ask whether or not to stop the MP2300 to allow transfer of the files.
To Next Page
