SERVO SELECTION AND DATA SHEETS

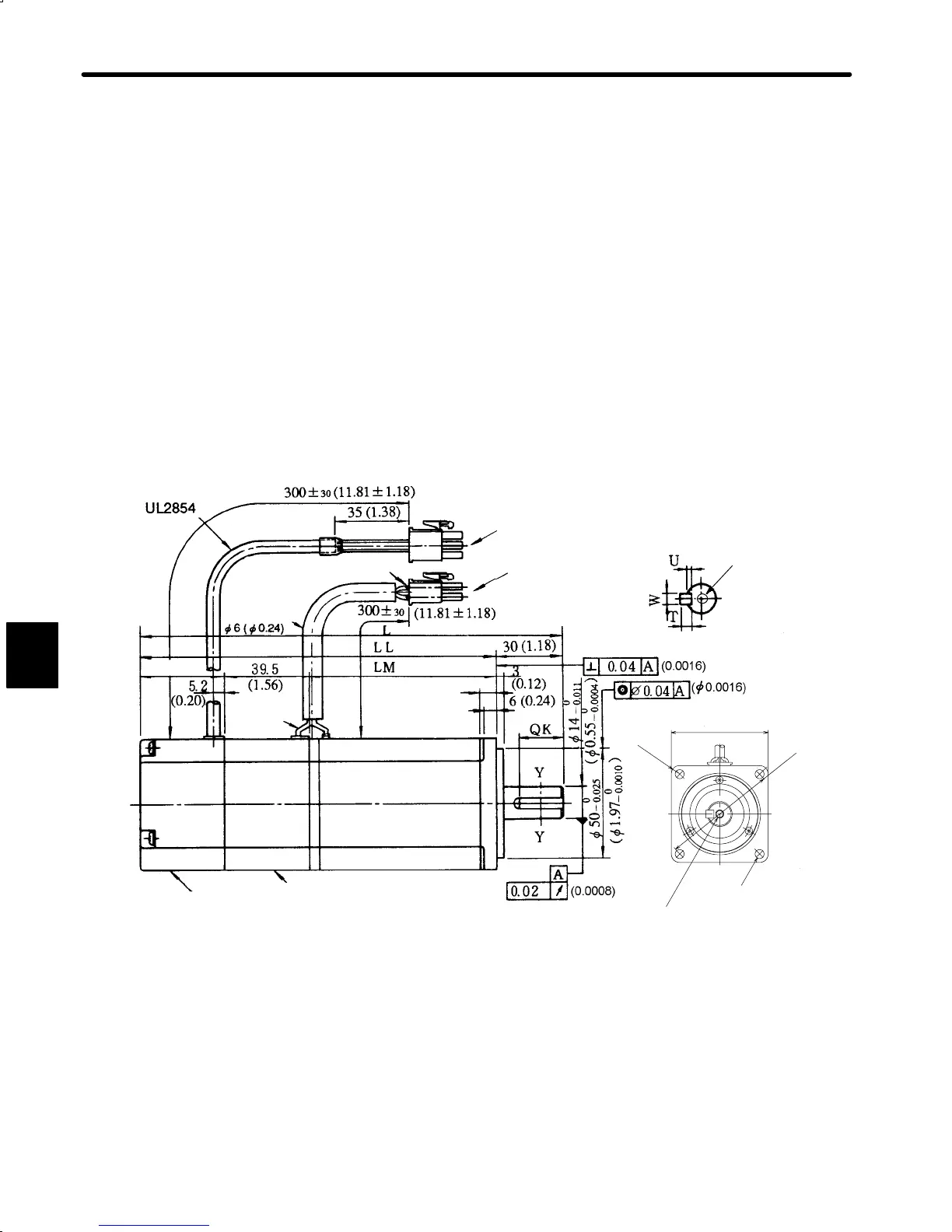

5.4.1 Servomotor Dimensional Drawings cont.
254
Note 1) The detector uses an incremental encoder 2048 P/R.
2) Type “A” indicates 200 V specification, and type “B” indicates 100 V specification.
3) “A3A(B)314B”, “A3A(B)316B”, “A5A(B)314B”, “A5A(B)316B”, “01A(B)314B” and
“01A(B)316B” have a keyed shaft. The keyway complies with JIS B 1301-1976 (preci-
sion). A straight key is supplied.
4) The quoted allowable radial load is the value at a position 20 mm (0.79 in.) from the mo-
tor mounting surface.
5) The electromagnetic brake is only to hold the load in position and cannot be used to stop
the motor.
• 200 W (0.53 HP), 300 W (0.40 HP), 400 W (0.27 HP)
Encoder Lead
Encoder Plug
Motor Plug
Protective Tube
(Black)
Incremental Encoder
2048 P/R
Cross-section Y-Y
Holding Brake
(Deenergisation Operation)
Voltage: 90 VDC, Dissipated
current (Reference): 0.1 A
Brake Holding Torque
= Motor Rated Torque
Brake Lead
34 (1.34)
12 (0.47)
Motor Lead (Teflon wire) AWG22
UL1828 or UL3534
Screw
4-φ5.5
(φ0.22)
MTG Holes
60 (2.36)
4−R5.3
φ70
(φ2.76)
Shaft end screw hole
(SGM-jjA(B)316B,
with key type only)
5
To Next Page
