5.6 Specifications and Dimensional Drawings of Peripheral Devices
377

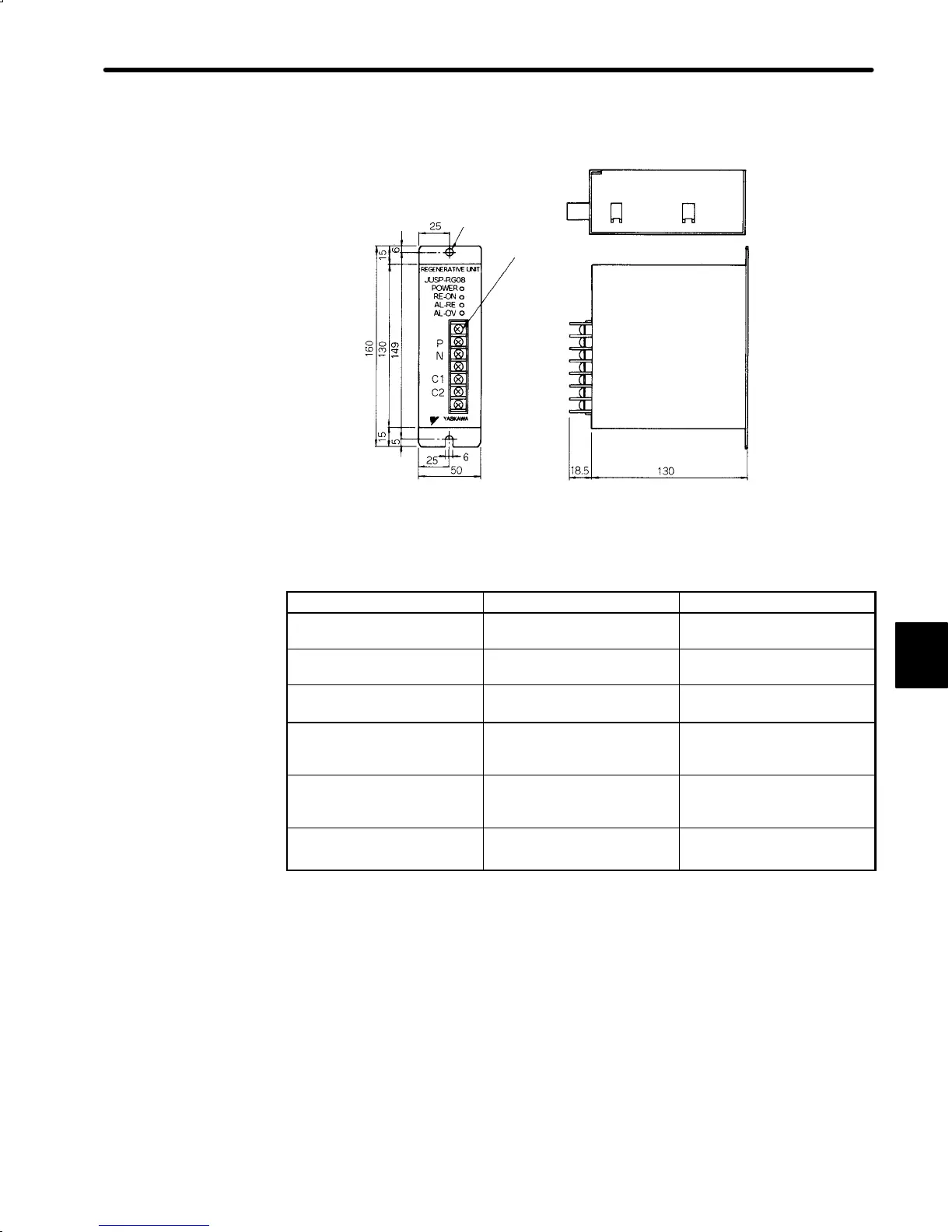

• Dimensional Drawings
M4 External Terminal Screws
Mass: 1 kg (2.20 lb)
Hole6 dia.
(Φ0.24)
(0.78)
(0.24)
(1.97)
(0.98)
(0.73)
(5.12)
(0.59)
(6.30)
(5.12)
(5.87)
(0.20)
(0.59)
(0.24)
• Regenerative Unit Specifications
Type JUSP-RG08 Comments
Applicable Servopack Only for 200V, 30 to 200W
specifications
Regenerative Working
Voltage
380Vdc
Regenerative Process
Current
8Adc Built−in regenerative
resistance: 50 Ω,60W
Error Detection Functions Regenerative resistance
failure, regenerative
transistor failure, overvoltage
Alarm Output Normally closed contact
(open when protective
function operates)
200 V operation OK
Dimensions in mm
(inches)
55W¢160H¢130D
(2.17W ¢ 6.30H¢ 5.31D)
5
