SERVO SELECTION AND DATA SHEETS
5.6.12 Regenerative cont.
378
2) JUSPRG08C type
JUSPRG08C type is an exterior type regenerative unit. When regenerative ability of the
builtin resistor is insufficient, install this regenerative unit to enhance the regenerative
ability. When regenerative resistor is installed externally, disconnect the jumper cable
between terminals Y4 and Y5. Connect exterior type regenerative unit between termi-
nals P/Y3 and Y4.

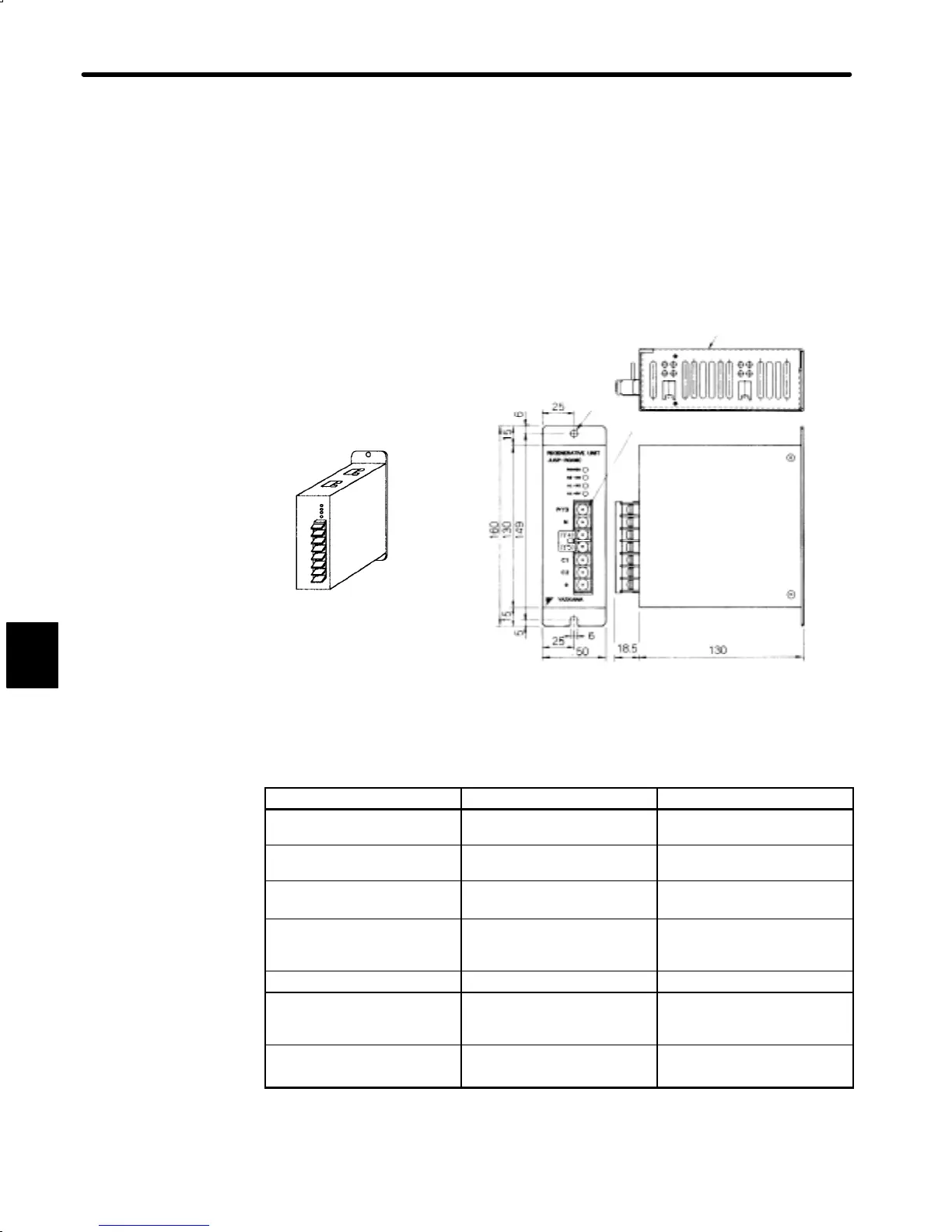

Dimensional Drawings
M4 External Terminal Screws
Approx. Mass: 1 kg (2.20 lb)
Hole 6 dia.
(Φ0.24)
(1.97)
(0.98)
(0.73)
(5.12)
(6.30)
(5.12)
(5.87)
(0.20)
(0.59)
(0.24)
(0.24)
(0.98)
(0.59)
Nameplate
Regenerative Unit Specifications
Type JUSPRG08C Remarks
Applicable Servopack Only for 200 V, 30 to 200 W
specifications
Regenerative Working
Voltage
380Vdc
Regenerative Processing
Current
8Adc Regenerative Resistance:
50 Ω,60W
Error Detection Function Regenerative resistance
disconnection, regenerative
transistor fault, overvoltage
Minimum Exterior Resistance
50 Ω
Alarm Output Normally closed contact
(open when protective
function operates)
200 V operation OK
Dimensions in mm
(inches)
55W¢160H¢130D
(2.17W ¢ 6.30H¢ 5.31D)
5
