7.8 Offset Adjustment of Analog Monitor Output (Fn00C)
7-15
7
Utility Functions (Fn)
4
Press the DATA/SHIFT Key. Offset data will be displayed
as shown on the left.
5 Press the UP or DOWN Key to change the data.
6
Press the DATA/SHIFT Key to return to the screen as
shown on the left.
7
Press the MODE/SET Key to switch to channel 2 (analog
monitor 2) monitor output.
8
Press the DATA/SHIFT Key. Offset data will be displayed
as shown on the left.
9 Press the UP or DOWN Key to change the data.
10
Press the DATA/SHIFT Key for approximately one second.
"Ch2-o" is displayed, and then "Fn00C" is displayed again.
(cont’d)

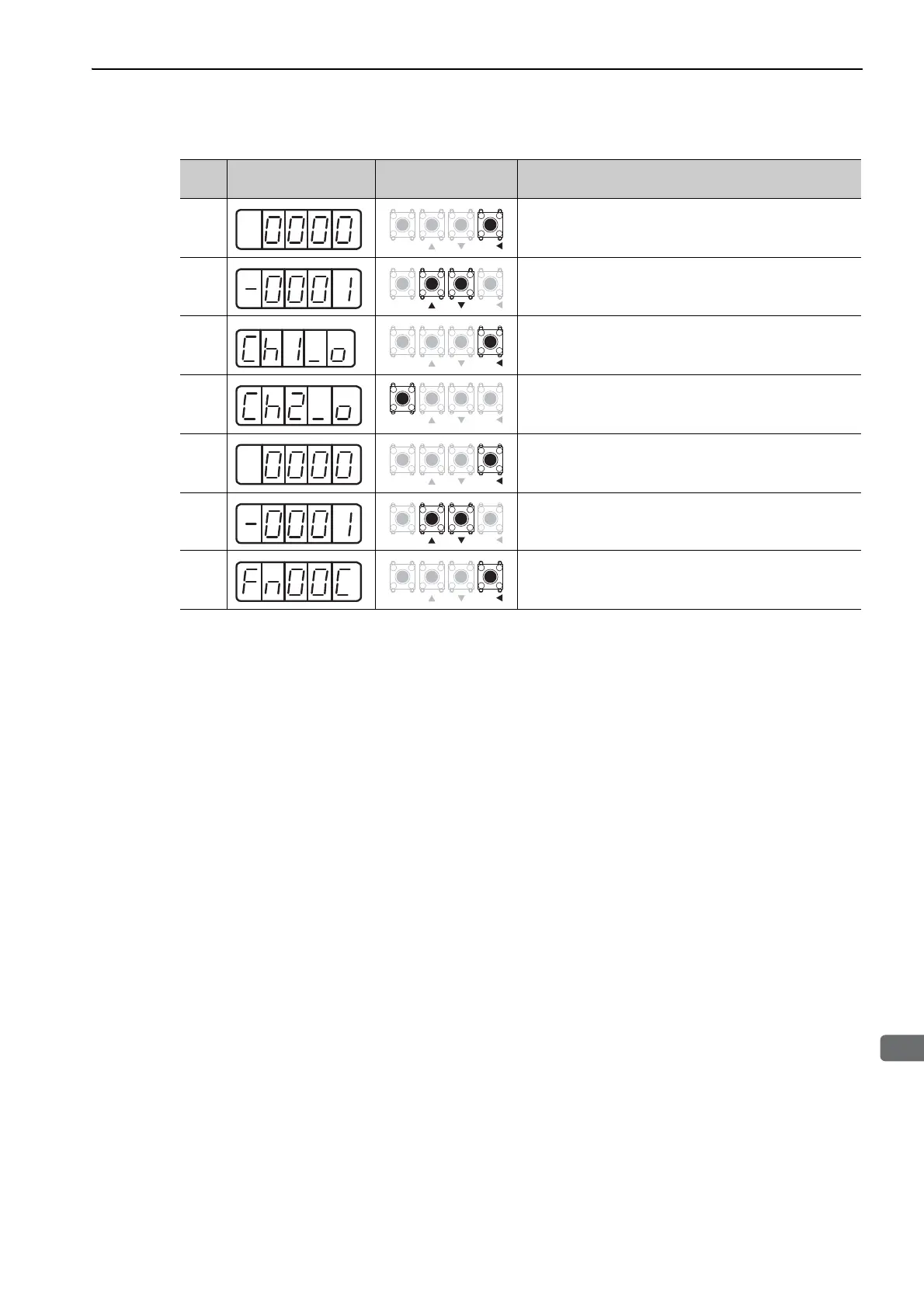

Step
Display after
Operation
Keys Operation
MODE / SET DATA /
MODE
/
SET DATA
/
MODE
/
SET DATA
/
MODE / SET DATA /
MODE
/
SET DATA
/
MODE / SET DATA /
MODE
/
SET DATA
/
