YASKAWA Sigma-V Series User Manual

3.7 Selecting and Connecting a Regenerative Resistor Unit
3-45
3
Wiring and Connection
3.7.2 Connecting a Regenerative Resistor Unit

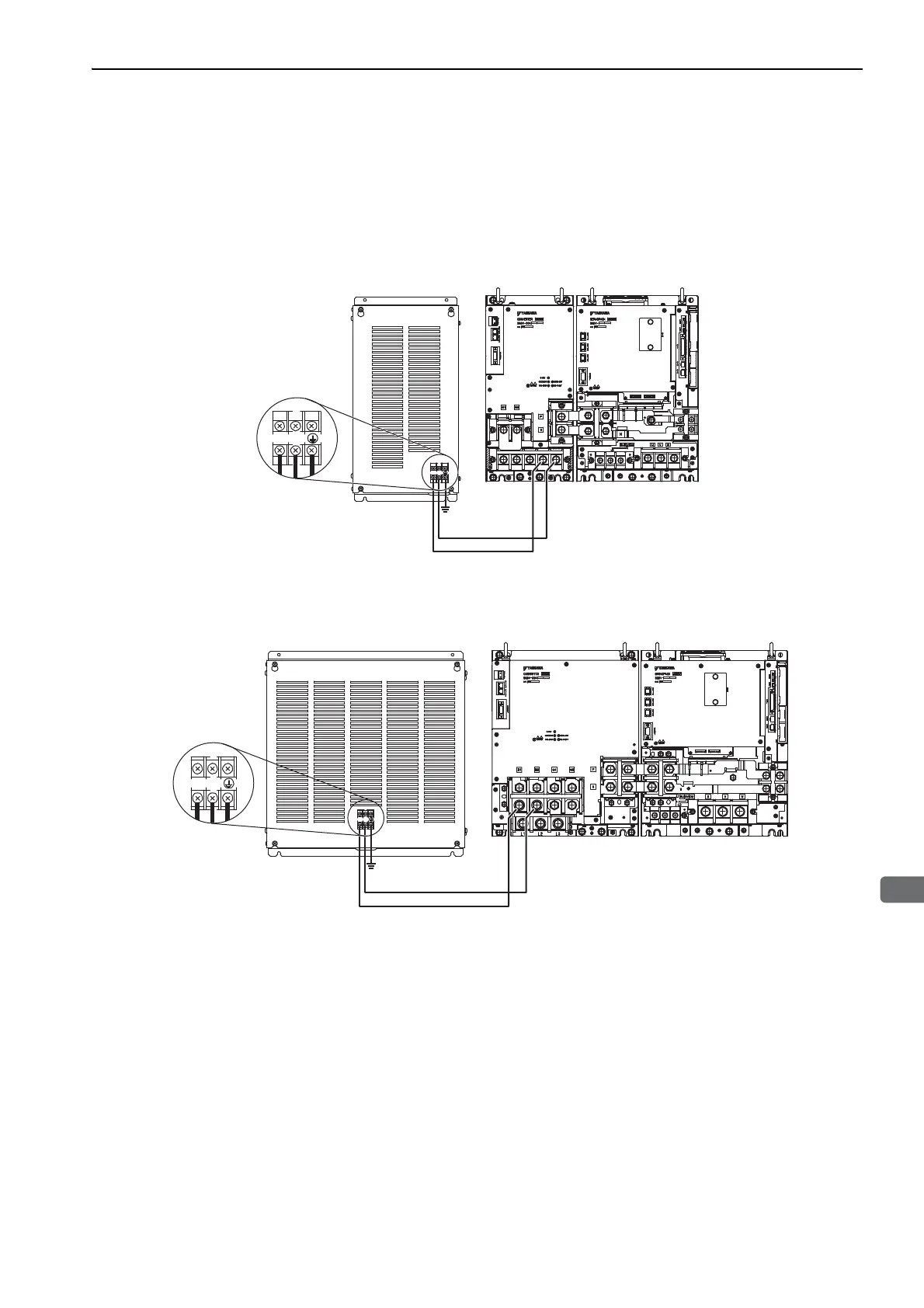

Connect the B1 terminals and connect the B2 terminals between the converter and regenerative resistor unit.
Connect them as shown in the following figures.
(1) Converter Model: SGDV-COA2BAA, -COA3ZDA
(2) Converter Model: SGDV-COA3GAA, -COA5EDA
B1 B2
Regenerative Resistor Unit
JUSP-RA-E
SERVOPACKConverter
B1 B2
Analog
B1B2
B1B2
Regenerative Resistor Unit
JUSP-RA-E
SERVOPACKConverter
Analog
