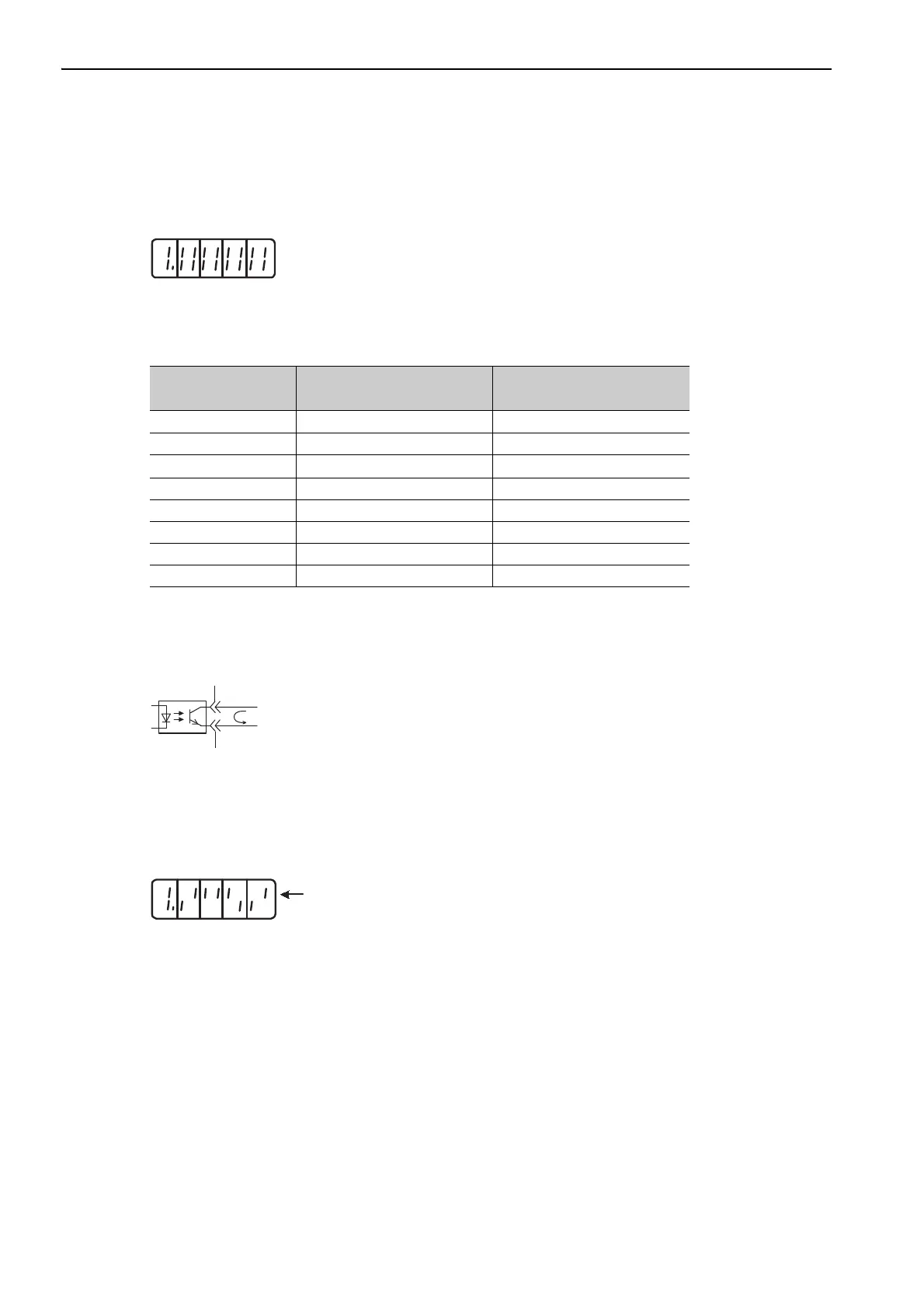

8 Monitor Displays (Un)
8.5.2 Interpreting Output Signal Display Status
8-8
8.5.2 Interpreting Output Signal Display Status
The status of allocated signals is displayed on the 7-segment display on the panel operator.
Output terminals correspond to LED numbers as shown in the following table.
When the output signal is in OFF status, the top segment (LED) is lit.
When the output signal is in ON status, the bottom segment (LED) is lit.
Note: Output signals use the following circuit configuration.
OFF: Transistor OFF
ON: Transistor ON
Example
8.5.3 Output Signal Display Example
Output signals are displayed as shown below.
When the ALM signal is OFF
Display LED
Number
Output Terminal Name
Signal Name
(Factory Setting)
1
CN1-31
,
-32
ALM
2 CN1-25, -26 /COIN or /V-CMP
3
CN1-27,
-28
/TGON
4 CN1-29, -30 /S-RDY
5 CN1-37 ALO1
6 CN1-38 ALO2
7 CN1-39 ALO3
8 Reserved
4 321
Top: OFF
Bottom: ON
Number
6 785
Analog
ON: Transistor ON
The top segment of
number 1 is lit.
76854321
Analog
