YASKAWA Sigma-V Series User Manual

2 Panel Operator

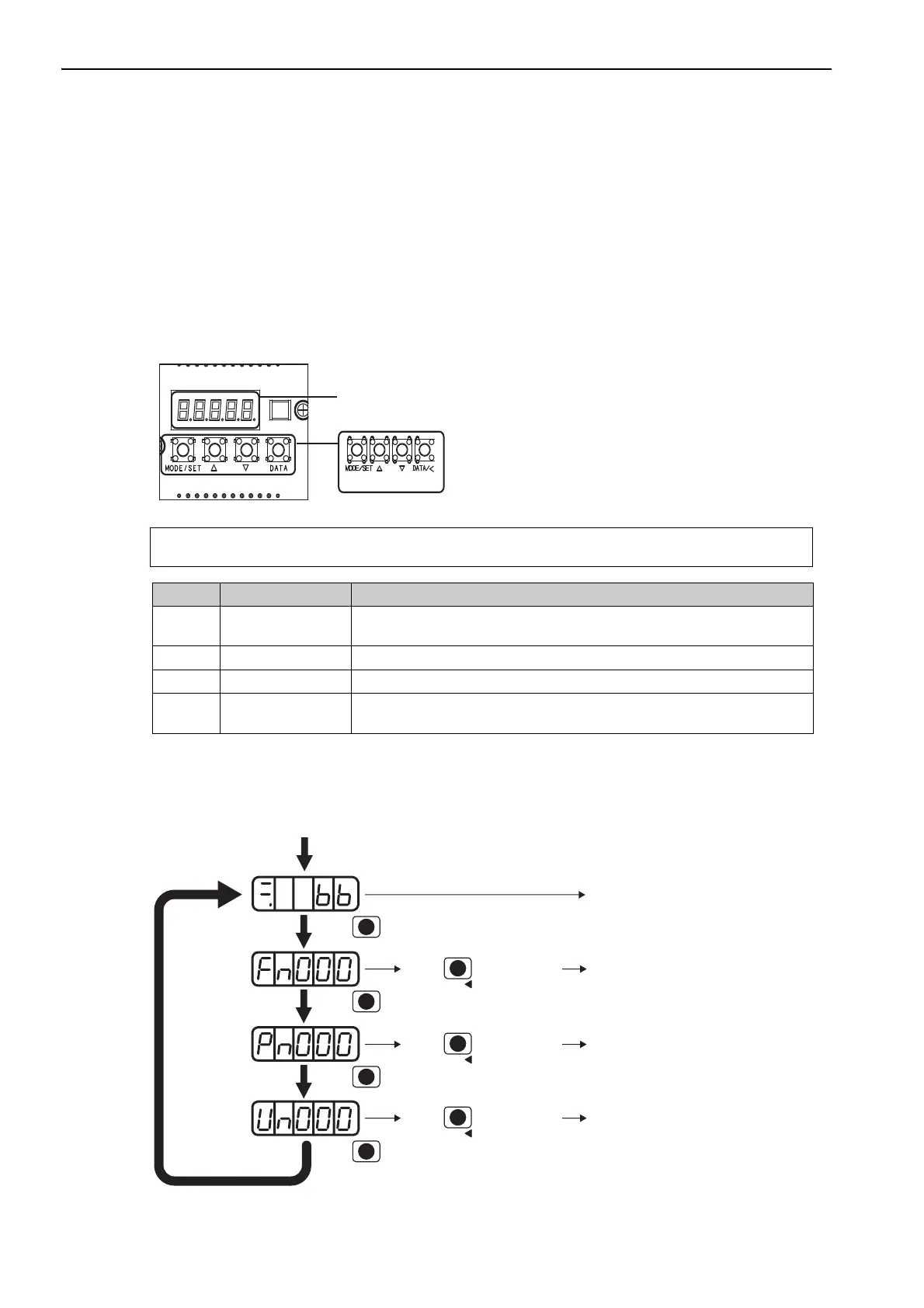

2.1.1 Names and Functions
2-2
2.1 Overview
2.1.1 Names and Functions
Panel operator consists of display part and keys.
Setting parameters, displaying status, executing utility functions, and monitoring SERVOPACK or converter
operation are possible with the panel operator.
The names and functions of the keys on the panel operator are as follows.
2.1.2 Display Selection
Press the MODE/SET Key to make a selection in the following order.
ԘԙԚԛ
SERVOPACK
Display part
Keys
Note: To reset the servo alarm, press the UP Key and the DOWN Key simultaneously. Be sure to remove the cause
and then reset the alarm.
Key No. Key Name Function
 MODE/SET Key
• To select a display.
• To set the set value.
 UP Key To increase the set value.
 DOWN Key To decrease the set value.
 DATA/SHIFT Key
• To display the set value by pressing this key for one second.
• To move to the next digit on the left when flashing.
Status Display (Refer to 2.3)
Fn: Utility Function
(Refer to 2.4)
Pn: Parameter Setting
(Refer to 2.6)
Un: Monitor Display
(Refer to 2.7)
Power ON
Press
Press
for one second.
Press for one second.
Press for one second.
Press
Press
Press
Return to
MODE/SET
DATA/
DATA/SHIFT
MODE/SET
MODE/SET
MODE/SET
DATA/
DATA/SHIFT
DATA/
DATA/SHIFT
(Refer to 2.2.)
(Refer to 2.3.)
(Refer to 2.4.)
(Refer to 2.1.3.)
Analog
