YASKAWA Sigma-V Series - Holding Brakes

5.2 Basic Functions Settings
5-9
5
Operation

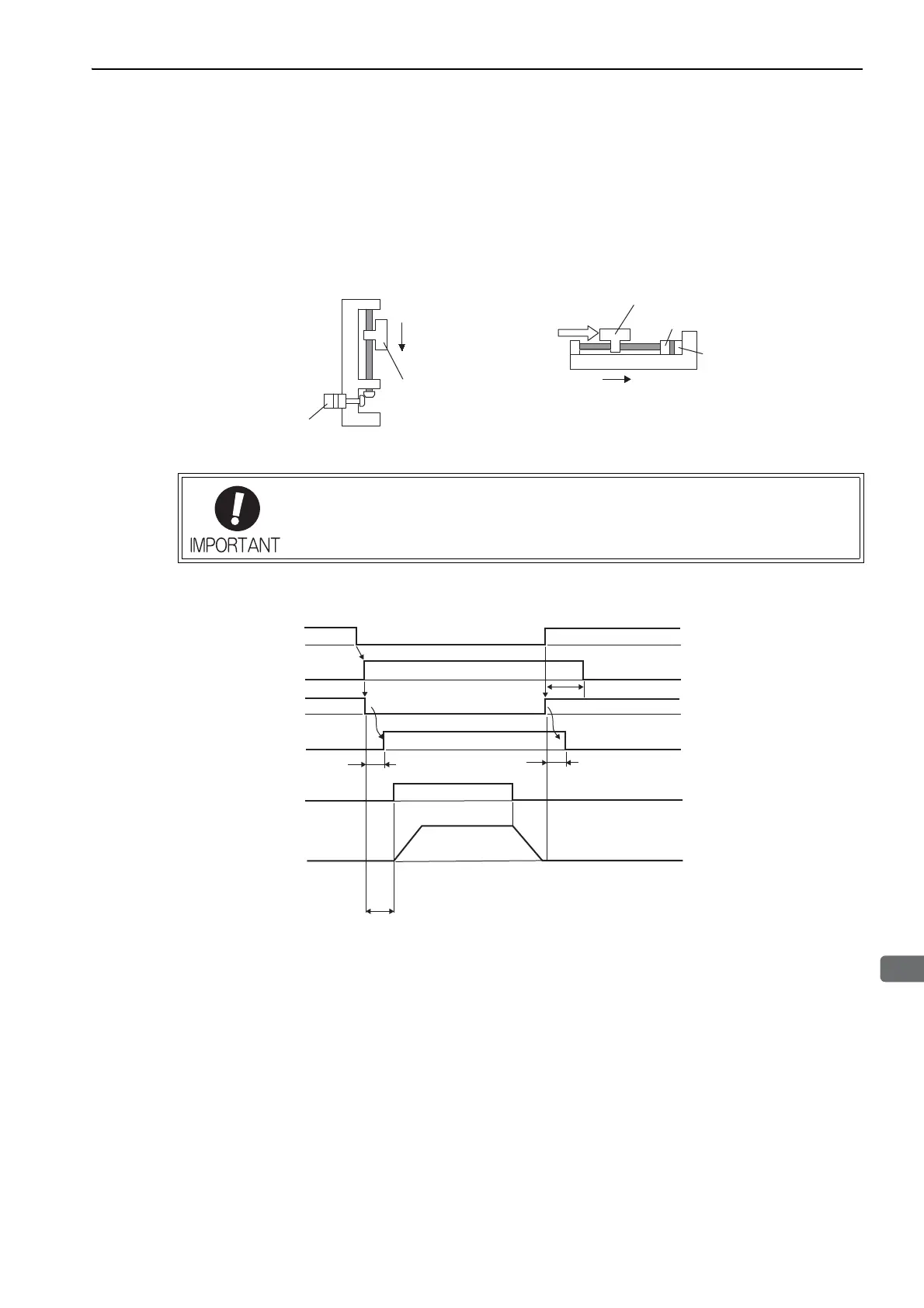

5.2.4 Holding Brakes
A holding brake is a brake that is used to hold the position of the movable part of the machine when the SER-
VOPACK and converter are turned OFF so that movable part does not move due to gravity or external forces.
Holding brakes are built into servomotors with brakes.
The holding brake is used in the following cases.
There is a delay in the braking operation. Set the following ON/OFF timing.
• The brake built into the servomotor with brakes is a de-energization brake, which is
used only to hold and cannot be used for braking. Use the holding brake only to hold
a stopped servomotor.
Servomotor

Vertical Shaft
Holding brake

Shaft with External Force Applied
Movable part of machine
Holding brake
Movable part of
machine
Servomotor
External
force
Prevents the movable part (table)
from moving due to external force.
Prevents the
movable part from
moving due to its
own weight when the
power is OFF.
Rotation
*1
*2
0V
*1
*3
Servo ON signal
(/S-ON)
Servomotor power
Brake signal (/BK)
Brake contact part
(lining)
Position reference/
Speed reference
Motor speed
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
Brake release Brake applied
Brake applied
Analog
