1 Outline
1-2
1.1 Σ-V Large-Capacity SERVOPACKs and Converters
The Σ-V large-capacity SERVOPACKs and converters are designed for applications that require frequent
high-speed, high-precision positioning. The SERVOPACKs and converters make the most of machine
performance in the shortest time possible, therefore contributing to improving productivity.

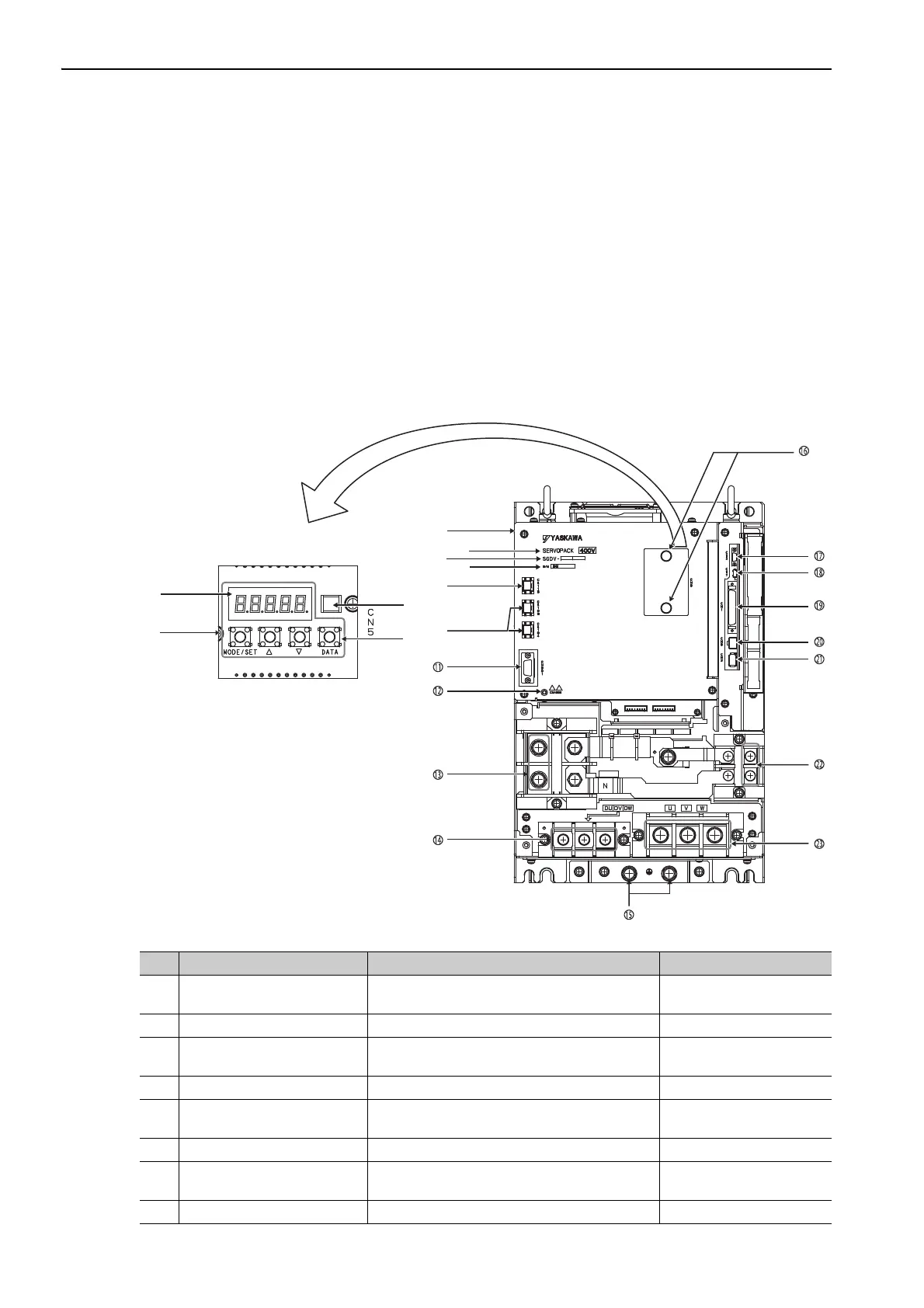

1.2 SERVOPACK Part Names
This section describes the part names of SERVOPACKs.
Use a SERVOPACK together with a converter. For details, refer to 1.9 Combinations of Servomotors, SER-
VOPACKs, and Converters.
Note: For the purpose of this description, the SERVOPACK is shown with the front cover removed. Always keep the front
cover attached when using the SERVOPACK.
No. Name Description Reference
Panel display
Used to display SERVOPACK status, alarm num-
bers, and other values when parameters are input.
2.1 Overview
Panel operator ––
CN5 Analog monitor
connector
Used to monitor motor speed, torque reference,
and other values through a special cable (option).
6.1.3 Monitoring Operation
during Adjustment
Panel operator keys Used to set parameters. 2.1 Overview
Nameplate
Indicates the SERVOPACK model and ratings.
Located on the side of the SERVOPACK.
Input voltage ––
SERVOPACK model Indicates the model number of the SERVOPACK.
1.7 SERVOPACK Model
Designation
Serial number ––
With plastic cover open
Analog
