IM 04P01B01-01E
5-6

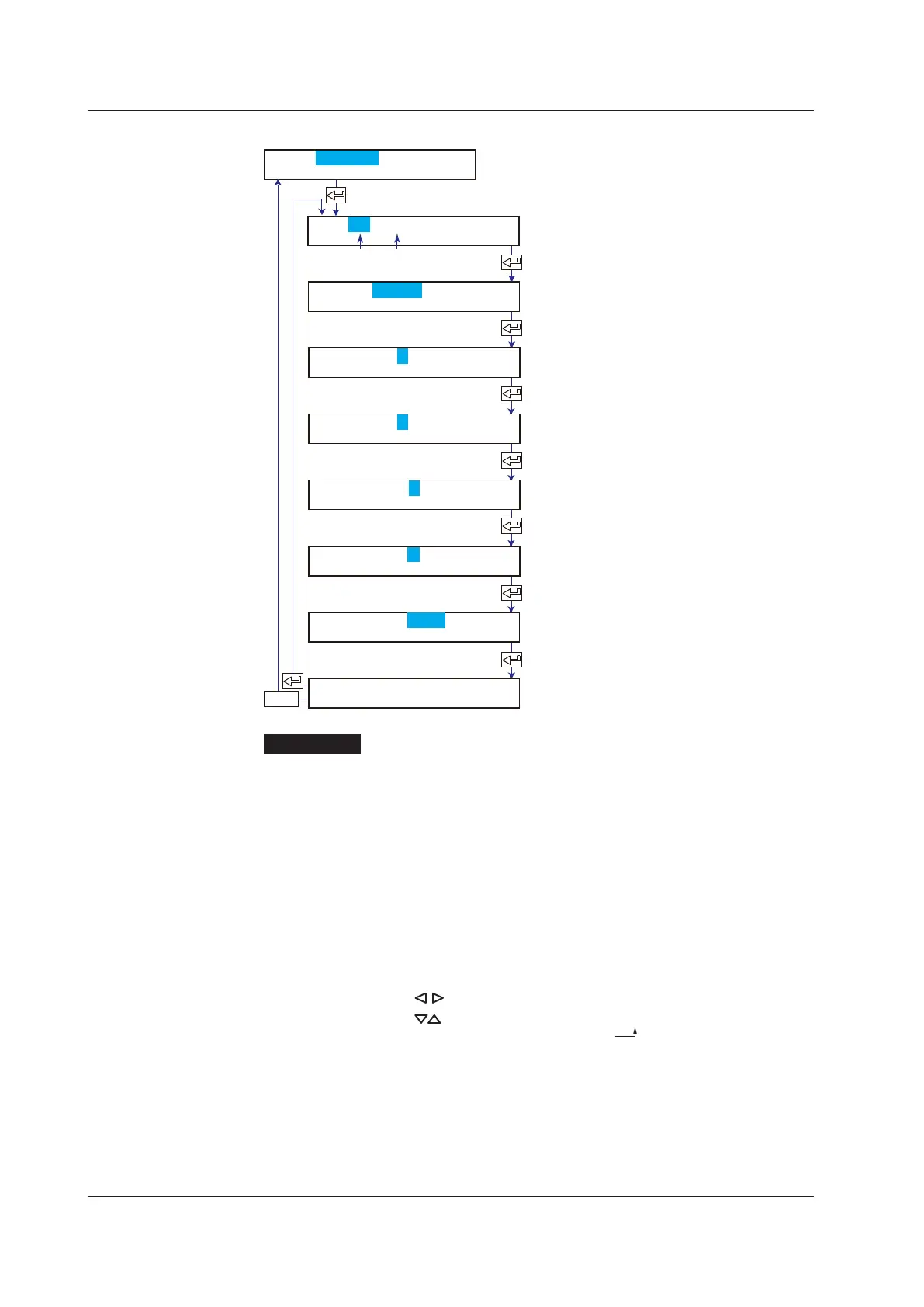

5.1 Setting the Input Range
1-5V Input
Select 1-5V.
Set the channel range.
Set the left span value.
Set the right span value.
Set the decimal place
and left scale value.
Set the right scale value.
Turn On or Off the low-cut function.
The new setting takes effect.
First channel
(When low-cut is set to Use)
Last channel
ESC/?
Set=Range
CH=01-01
Mode=1-5V
Span_L= 1,000
Span_R= 5,000
Scale_L= 0.00
Scale_R= 200.00
Low-cut=Off
01-01 Channel
Setting complete
Description
Span Left and Span Right
Selectable span left range: 0.8 to 1.2 V
Selectable span right range: 4.8 to 5.2 V
Scale Left, Scale Right, and Decimal Place
Selectable range (mantissa): –20000 to 30000
Example: Thevalueintherangeof–100.00to350.00cannotbespecied.The
mantissa of Scale_R is 35000, which exceeds the upper limit of 30000. Set
in the range of –100.0 to 350.0.
Decimal place: XXXXX, XXXX.X, XXX.XX, XX.XXX, X.XXXX
The decimal place is set using Scale_L. It cannot be set using Scale_R.
Example: Change 0.00 to 0.0.
Press the
key to move the cursor to the last digit of 0.00.
Space
Press the key to change the value to 0.0 .
Make sure that scale left is less than scale right.
Low-cut
On: Cuts values below 0% of the recording span (set to 0% (scale left value)).
O󰀨:Doesnotapplythelow-cutfunction.
<Related Topics> Setting the unit: Section 5.3
Enab
ling the low-cut function: Section 7.15
