IM 04P01B01-01E
7-10
7.7 Turning Printouts ON/OFF
(Selecting the Channel/Tag Printout and Turning ON/OFF the Channel No.,
Alarm, Recording Start, New Chart Speed, Scale, and Pen Color Printouts)
This section explains the details of turning ON/OFF the printouts of various items.
Basic Setting mode cannot be entered when recording is in progress or when
computation is in progress on models with the computation function (/M1 option).

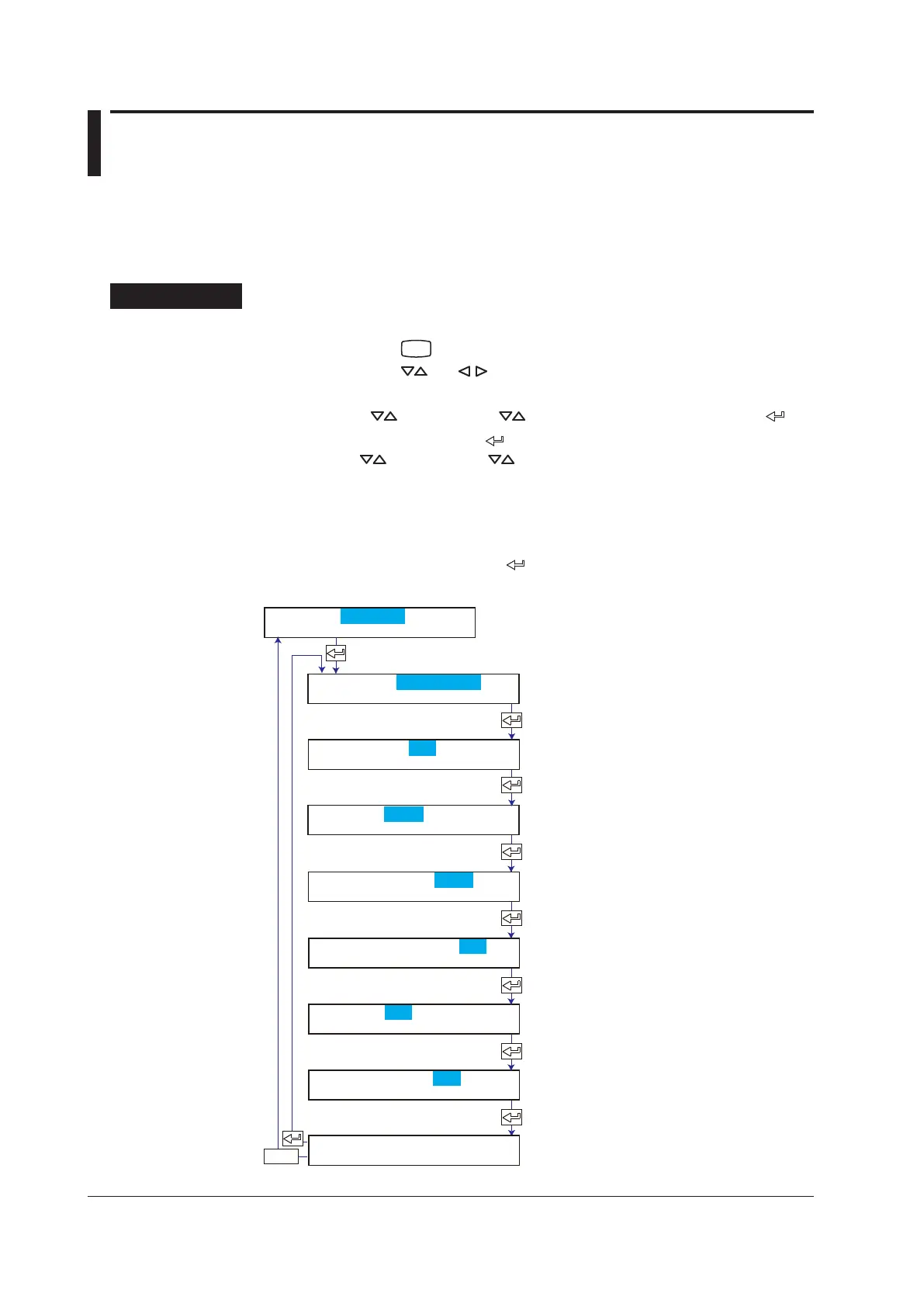

Procedure
Changing the Settings
1.
Hold down the
key for 3 seconds to enter Setting mode.
2.
Hold down the and keys simultaneously for 3 seconds to enter Basic
Setting mode.
3.
Press the key or SHIFT + key to select Print and then press the key.
4.
Set each item and press the key.
Use the
key or SHIFT + key to select values.
For the procedure on how to enter values or characters, see section 4.2.
If you press the ESC key in the middle of the operation, the settings entered up to
then are cancelled, and the display returns to a higher level menu.
5.
When the Setting complete screen appears, do either of the following:
To correct the setting, press the
key.
If you are done, press the ESC key.
Select whether to print the channel
number or tag beside the trend
recording.
Select whether to use the channel
number or tags for the printout.
Select whether to print the alarm
occurrence/release.
Select On to enable recording start
printout.
Select On to print when the chart
speed is changed.
Select On to print the channel scale in
periodic printout.
Select On to print the pen color in
periodic printout.
The new setting takes effect.
ESC/?
(Dot model)
(Pen model)
Printout
Setting complete
CH/Tag=Channel
Alarm=On1
Channel=On
Record On=Off
Chart speed=On
Scale=On
Pen color=On
To Next Page
