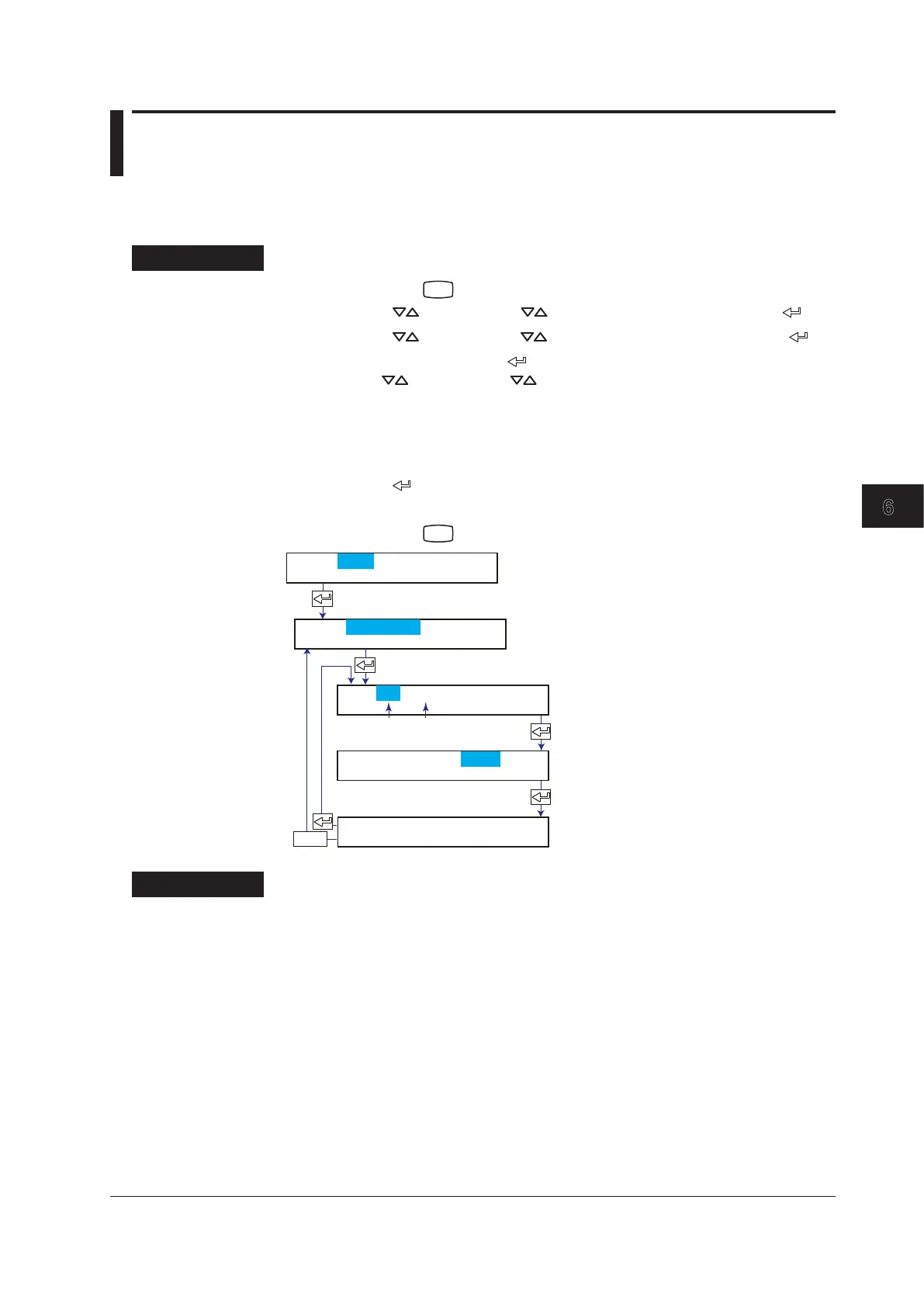

6.2 Setting the Filter (Pen Model)
This section explains the details of setting a filter on the measurement channels on the
pen model.
Procedure
1.
Hold down the
MENU
key for 3 seconds to enter Setting mode.
2.
Press the key or SHIFT + key to select Aux and then press the key.
3.
Press the key or SHIFT + key to select Filter and then press the key.
4.
Set each item and press the key.
Use the
key or SHIFT + key to select values.
For the procedure on how to enter values or characters, see section 4.2.
If you press the ESC key in the middle of the operation, the settings entered up to
then are cancelled, and the display returns to a higher level menu.
5.
When the Setting complete screen appears, do either of the following:
Press the
key to set other channels.
If you are done, press the ESC key.
6.
Hold down the
MENU
key for 3 seconds to return to Operation mode.
Set the channel range.
Set the filter time constant.
The new setting takes effect.
ESC/?
First channel Last channel
Set=Aux
Aux=Filter
CH=01-01
Resp.Time=Off
01-01 Channel
Setting complete
Explanation
Filter Time Constant
The time constant is selectable from 2 s, 5 s, and 10 s. Select Off when not using the
filter.
<Related Topics> Enabling the filter function: Section 7.12
