3.2 Installing or Replacing the Chart Paper
CAUTION
• Do not install or remove the chart cassette with the chart paper guide open. This
may damage the stopper.
• Continuing to record or print without the chart paper on the dot model can cause
damage to the chart cassette platen (the cylindrical section that holds the paper
during the recording operation). Be sure to replace the chart paper ahead of
time.
• When attaching the chart cassette, push it in until you hear the left and right
stoppers click into place. Recordings will be inaccurate if the chart cassette is
not fixed in place with stoppers.

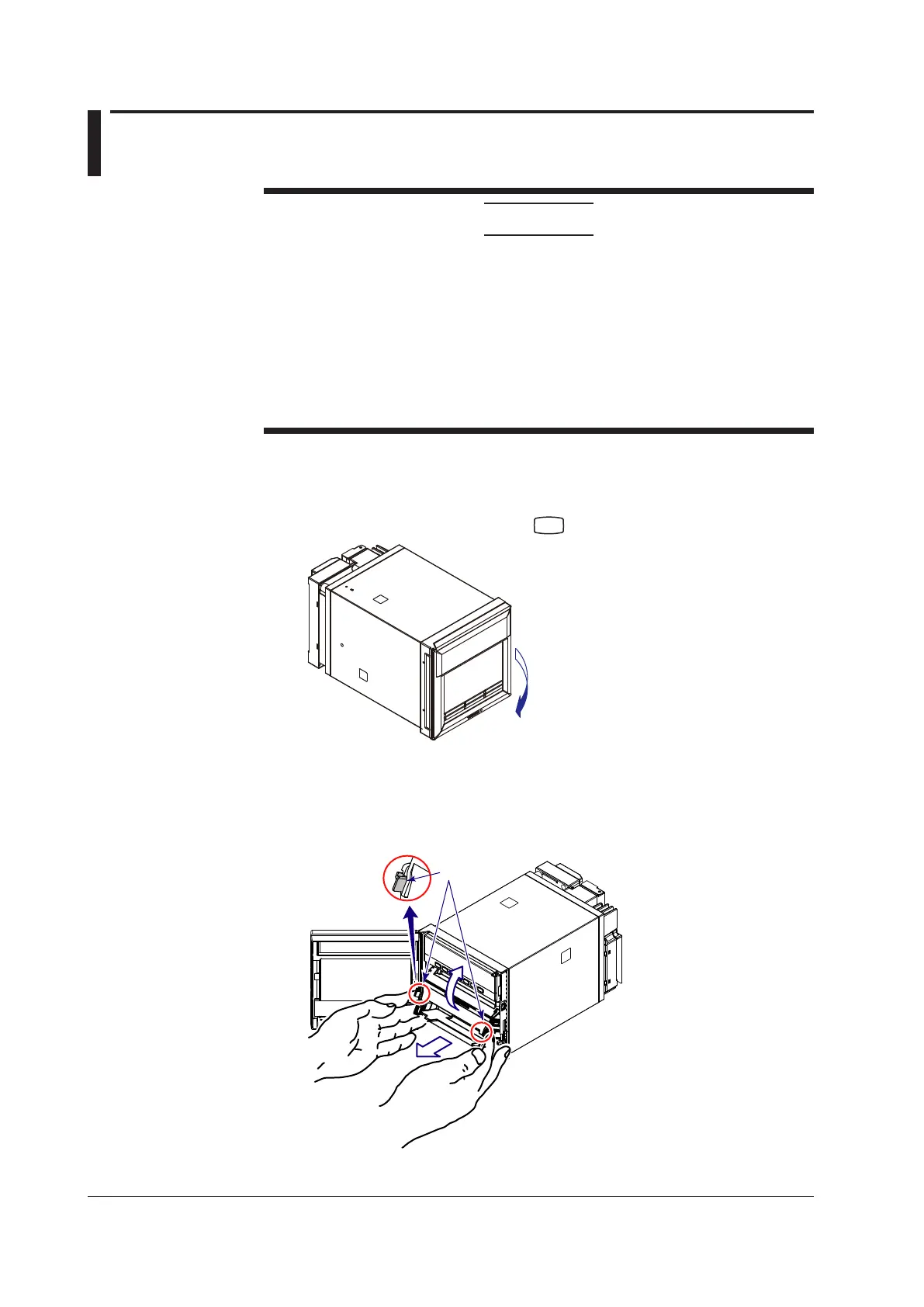

Loading the Chart Paper
1.
Open the door.
If recording is in progress, press the
RCD
key to stop the recording.
2.
Remove the chart cassette.
Gently pressing the left and right stoppers inward. The bottom section of the chart
cassette comes out. Gently lift the chart cassette and pull it out from the recorder
case.
Stopper
To Next Page
