YOKOGAWA MuR10000 User Manual

3-5
IM 04P01B01-01E
Names of Parts and Run Operations
1
2
3
4
5
6
7
8
9
10
11
12
App
Index
3.

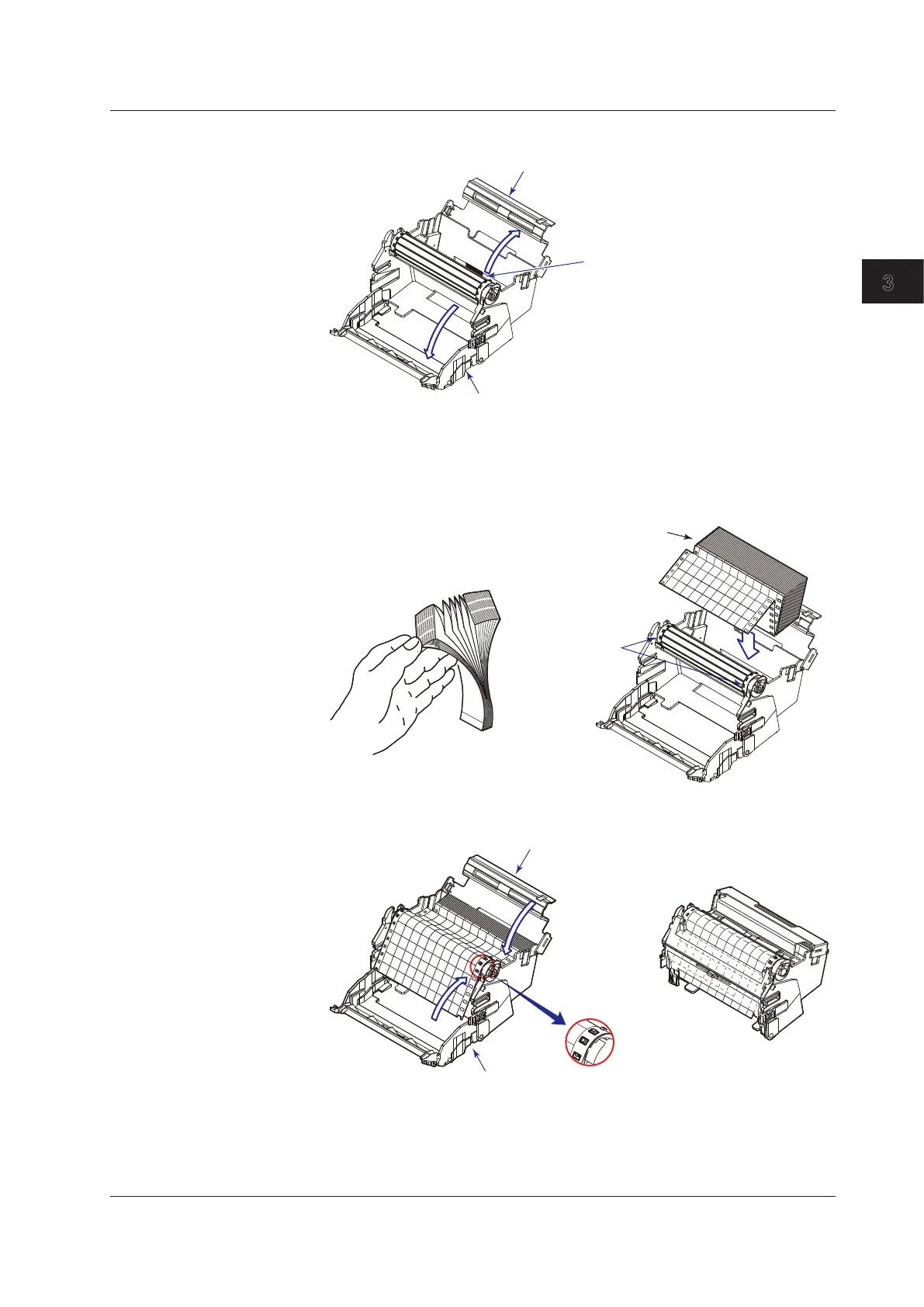

Open the chart holder and the chart paper guide.
Chart holder
This sheet is provided on models
with the chart end detection
function (/F1 option).
Do not remove or bend this sheet.
Chart paper guide
4.
Load the chart paper.
Ri󰀪ethechartthoroughlybeforeloading.
Make sure that the sprocket teeth of the chart drives are properly engaged in the
chart paper perforations. Make sure not to load the chart paper backwards.
Z-fold chart paper
Sprocket teeth
5.
Close the chart holder and close the chart paper guide.
Chart holder
Chart paper guide
The side with the
long rectangular
holes is the right side.
3.2 Installing or Replacing the Chart Paper
