IM 04P01B01-01E
7-20

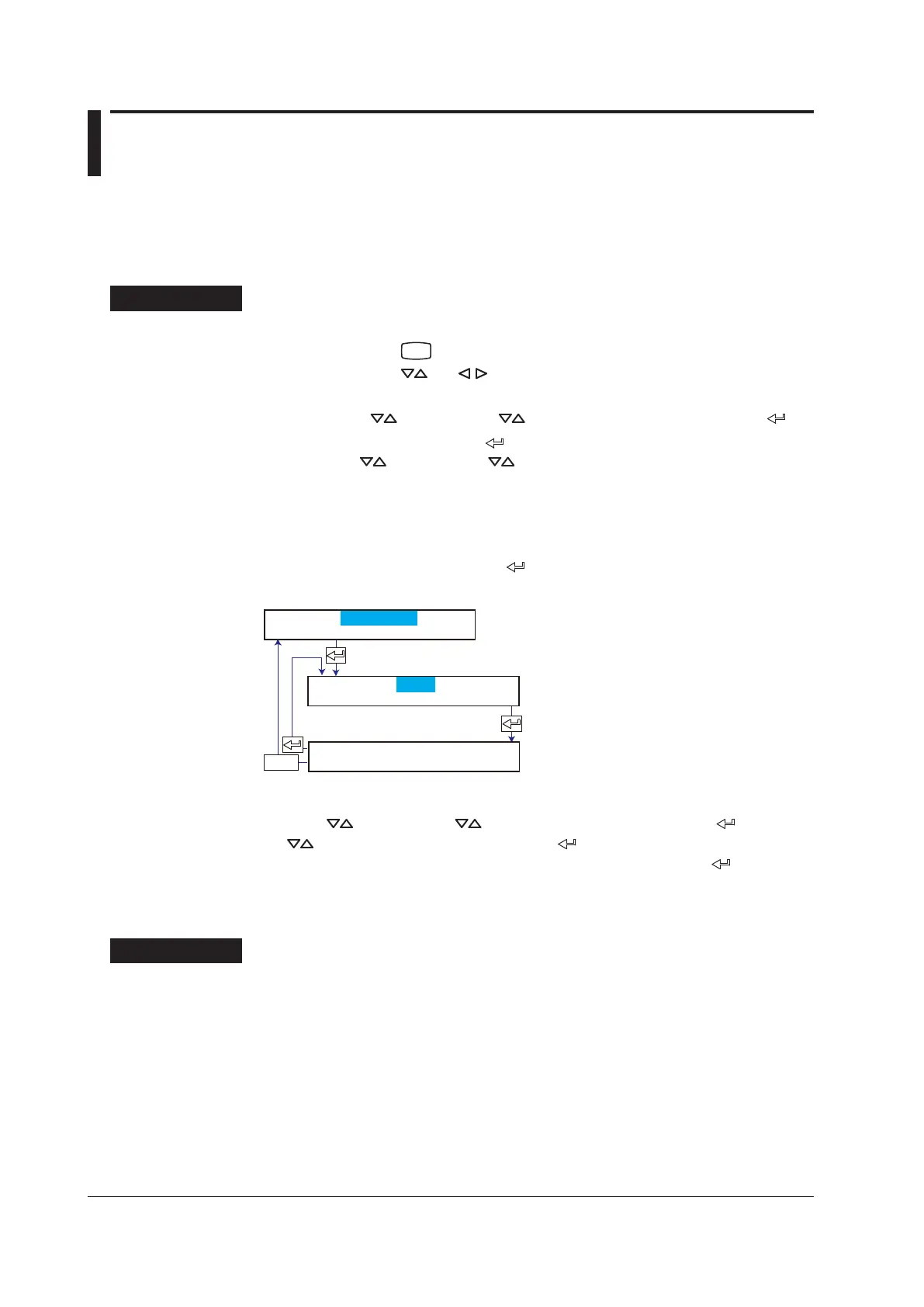

7.12 Enabling the Filter Function (Pen Model)
This section explains details of enabling/disabling the input filter function on the pen
model.
Basic Setting mode cannot be entered when recording is in progress or when
computation is in progress on models with the computation function (/M1 option).
Procedure
Changing the Settings
1.
Hold down the
key for 3 seconds to enter Setting mode.
2.
Hold down the and keys simultaneously for 3 seconds to enter Basic
Setting mode.
3.
Press the key or SHIFT + key to select Filter and then press the key.
4.
Set each item and press the key.
Use the
key or SHIFT + key to select values.
For the procedure on how to enter values or characters, see section 4.2.
If you press the ESC key in the middle of the operation, the settings entered up to
then are cancelled, and the display returns to a higher level menu.
5.
When the Setting complete screen appears, do either of the following:
To correct the setting, press the
key.
If you are done, press the ESC key.
Enable/Disable the filter function.
The new setting takes effect.
ESC/?
Filter
Filter=Not
Applying the Changes and Returning to Operation Mode
Press the key or SHIFT + key to select End and then press the key. Press
the
key to select Store and then press the key. The changes are applied, and
the screen returns to Operation mode. If you select Abort and press the
key, the
changes are discarded, and the screen returns to Operation mode. Press the ESC key to
return to the Basic= screen.
Explanation
Filter
Use: Enables the setting of the filter time constant in Setting mode.
Not: The Filter item does not appear in Setting mode.
<Related Topics> Setting the filter: Section 6.2
To Next Page
