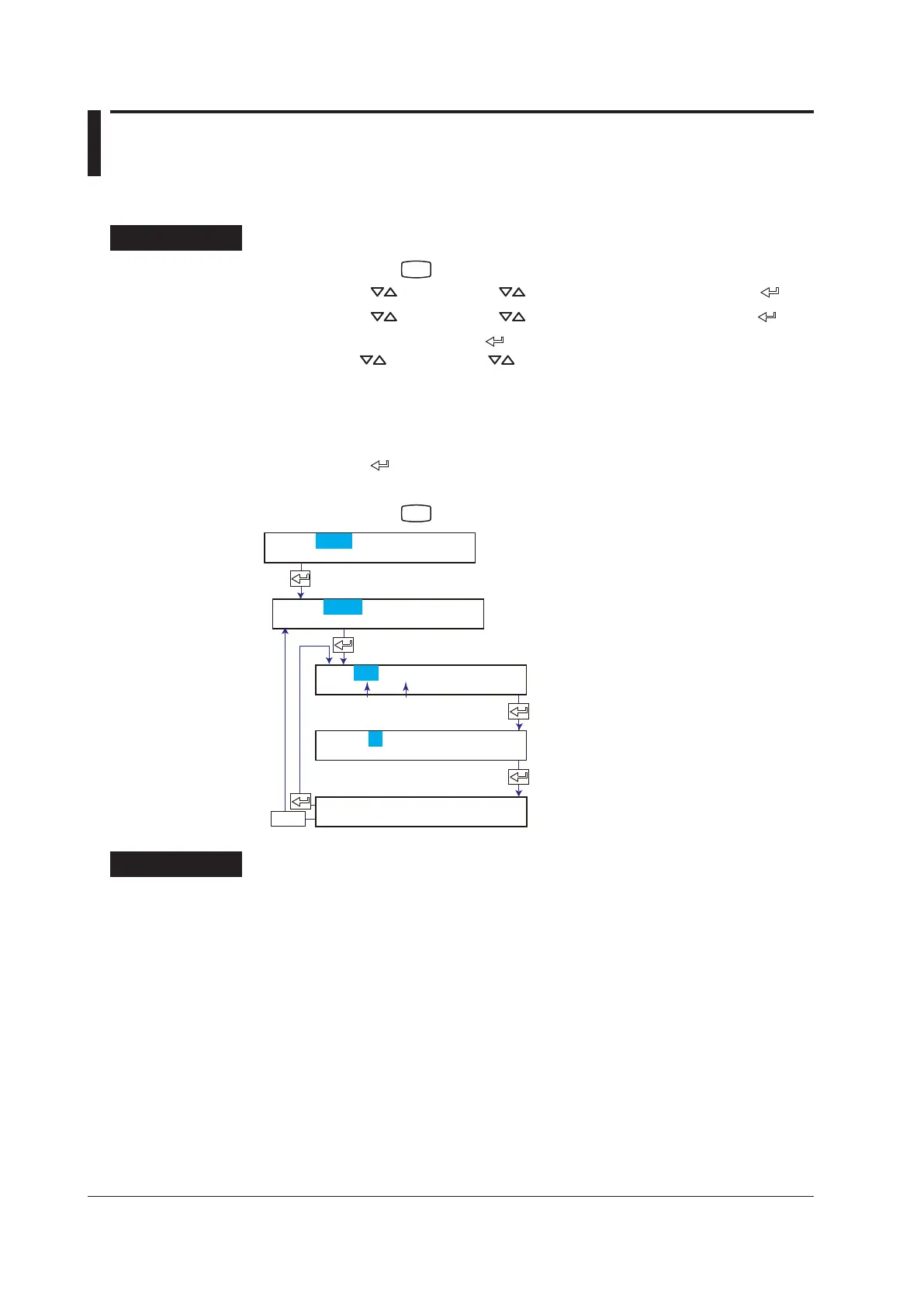

6.7 Setting Tags on Channels
This section explains the details of setting tags to measurement channels.
Procedure
1.
Hold down the
key for 3 seconds to enter Setting mode.
2.
Press the key or SHIFT + key to select Aux and then press the key.
3.
Press the key or SHIFT + key to select Tag and then press the key.
4.
Set each item and press the key.
Use the
key or SHIFT + key to select values.
For the procedure on how to enter values or characters, see section 4.2.
If you press the ESC key in the middle of the operation, the settings entered up to
then are cancelled, and the display returns to a higher level menu.
5.
When the Setting complete screen appears, do either of the following:
Press the
key to set other channels.
If you are done, press the ESC key.
6.
Hold down the
key for 3 seconds to return to Operation mode.
Set the channel range.
Set the tag.
The new setting takes effect.
ESC/?
First channel Last channel
Aux=Tag
CH=01-01
Tag=
01-01 Channel
Explanation
Characters That Can Be Used for Tags
Set the tag using up to 7 characters.
The available characters are as follows:
Alphabet,numbers,symbols(%,#,°,@,+,–,*,/,(,),µ,Ω,
2
,
3
, .), and space
<Related Topics> Printing tags in place of channel numbers: Section 7.7
Displaying tags in place of channel numbers: Section 8.2
