9.2 Setting the Computing Equation
The computing equation cannot be entered when the computation is in progress. If you
change the computing equation or the recording span, set the alarm and the partial
expanded recording again.
Procedure

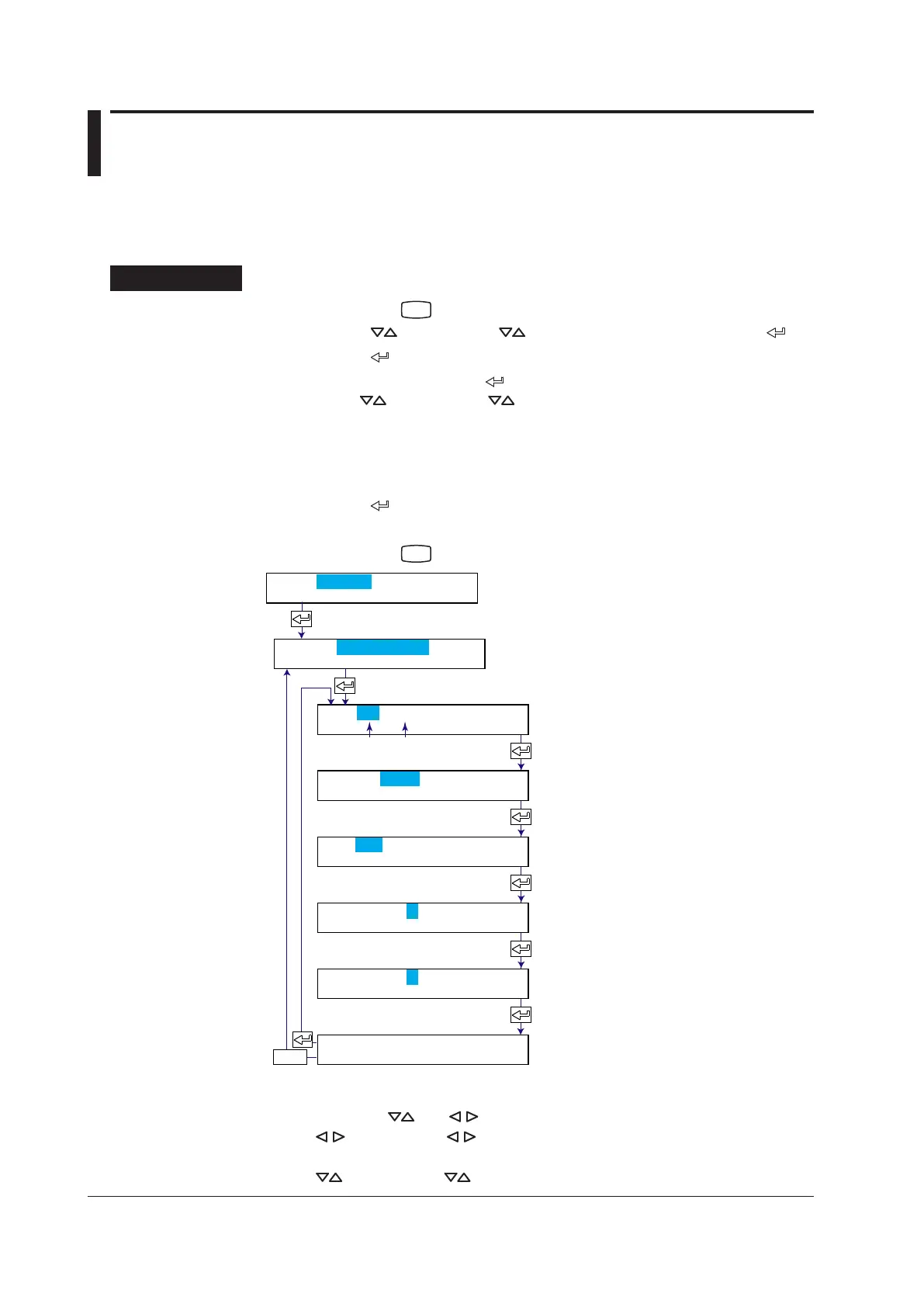

1.
Hold down the
key for 3 seconds to enter Setting mode.
2.
Press the key or SHIFT + key to select Math and then press the key.
3
Press the key with Formula shown on the screen.
4.
Set each item and press the key.
Use the
key or SHIFT + key to select values.
For the procedure on how to enter values or characters, see section 4.2.
If you press the
key in the middle of the operation, the settings entered up to
then are cancelled, and the display returns to a higher level menu.
5.
When the Setting complete screen appears, do either of the following:
Press the
key to set other channels.
If you are done, press the
key.
6.
Hold down the
key for 3 seconds to return to Operation mode.
The new setting takes effect.
ESC/?
Select On to use the computing equation.
Set the channel range.
Set the equation.
Set the left span value.
Set the right span value.
First channel Last channel
Math=Formula
CH=0A-0A
Mode=Off
f.=01
Span_L= -200.00
Span_R= 200.00
0A-0A Channel
Setting the Computing Equation
The CHARACTER, , and keys are used to set the computing equation.
Use the
key or SHIFT + key to select the position for entering a character.
Use the CHARACTER key or SHIFT + CHARACTER key to select the character type.
Use the
key or SHIFT + key to select the character.
To Next Page
