6-1
IM 04P01B01-01E
Setup Operations for Convenient Functions (Setting Mode)
6

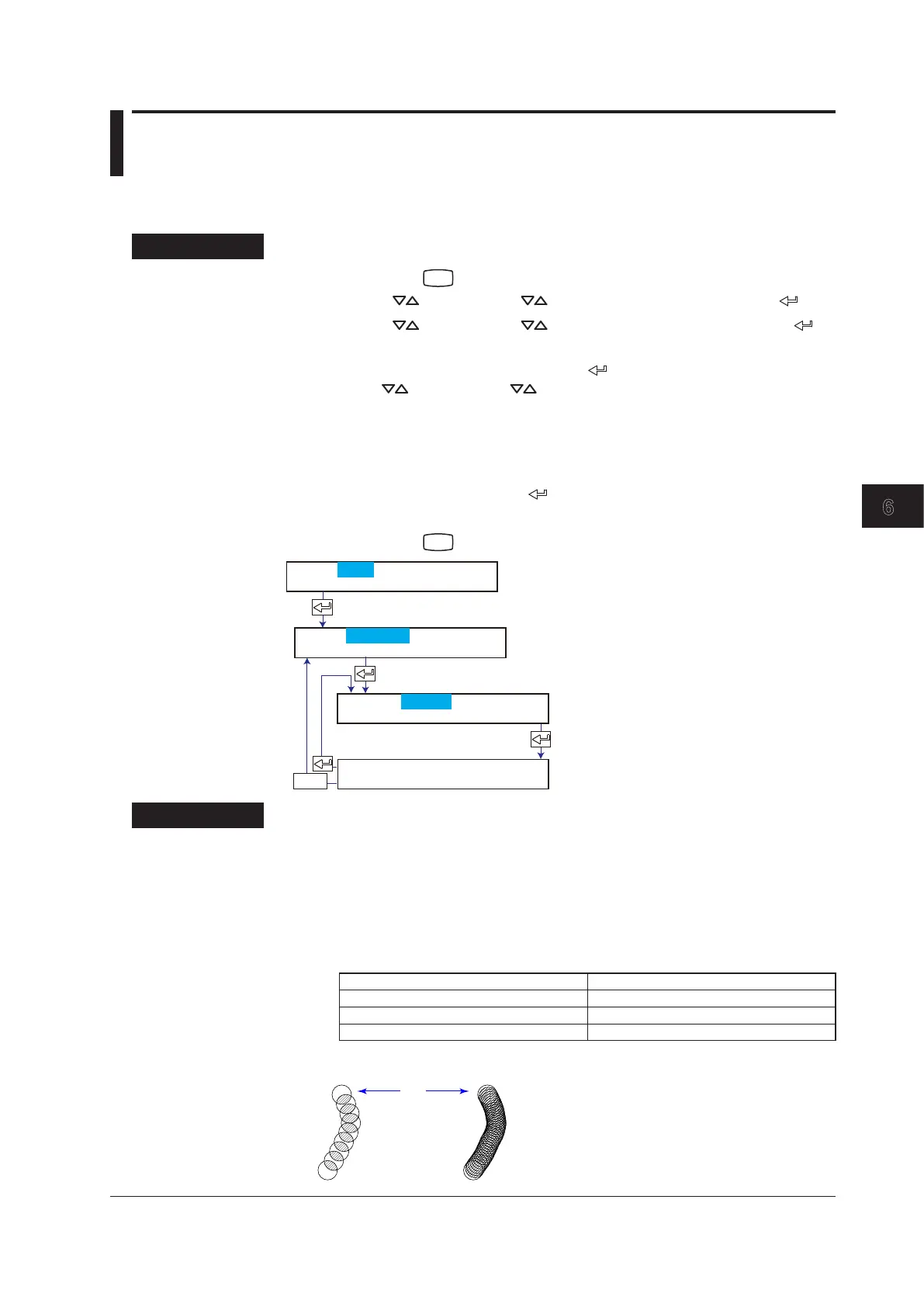

6.1 Setting the Trend Recording Interval (Dot
Model)
This section explains the details of setting the trend recording interval (dot printing
interval) on the dot model.
Procedure
1.
Hold down the
MENU
key for 3 seconds to enter Setting mode.
2.
Press the key or SHIFT + key to select Aux and then press the key.
3.
Press the key or SHIFT + key to select Trend and then press the
key.
4.
Set the dot printing interval and press the key.
Use the
key or SHIFT + key to select values.
For the procedure on how to enter values or characters, see section 4.2.
If you press the ESC key in the middle of the operation, the settings entered up to
then are cancelled, and the display returns to a higher level menu.
5.
When the Setting complete screen appears, do either of the following:
To correct the setting, press the
key.
If you are done, press the ESC key.
6.
Hold down the
MENU
key for 3 seconds to return to Operation mode.
Select the trend recording interval
mode.
The new setting takes effect.
ESC/?
Aux=Trend
Mode=Auto
Trend Interval
Explanation
Mode
Auto: The trend recording interval is set according to the chart speed in the range of
10 s to 90 s so that the dots do not overlap many times. The interval is displayed
on the System display (see page 12-9).
Fix: The trend recording interval is fixed to 10 s/6 dots. On models with the
computation function (/M1 option), the trend recording interval varies depending
on the number of measurement and computation channels to be trend recorded.
Number of channels to be recorded Trend recording interval
6 or less 10 s
7 to 12 15 s
13 to 18 20 s
When set to Auto When set to Fix
Dot
The distance between dots printed on the chart
paper varies depending on the chart speed.
Chapter 6 Setup Operations for Convenient Functions (Setting Mode)
To Next Page
