YOKOGAWA MuR10000 User Manual

9-11
IM 04P01B01-01E
Operations Related to the Computation Function (/M1 Option)
1
2
3
4
5
6
7
8
9
10
11
12
App
Index

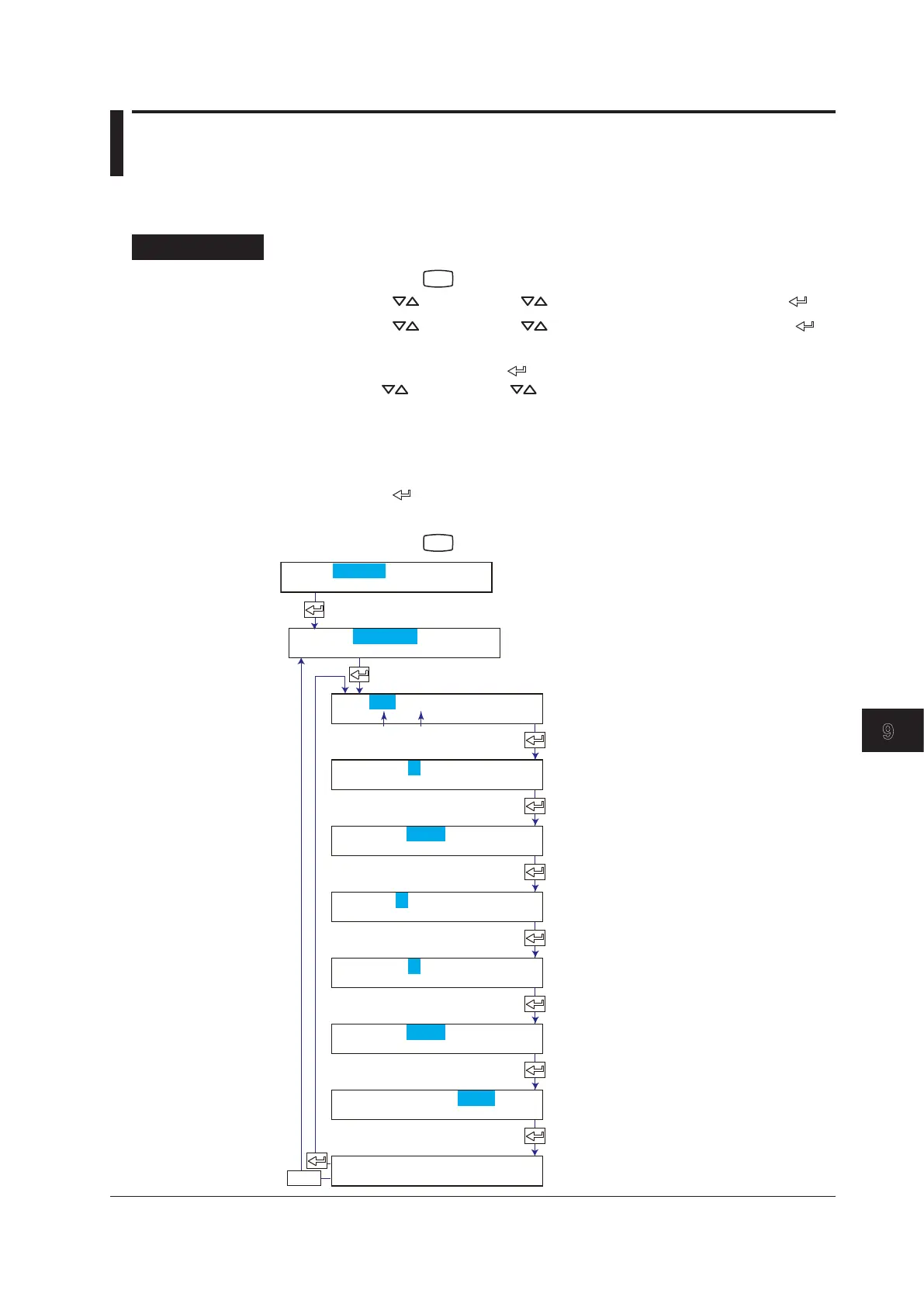

9.5 Setting the Alarm
This section explains the details of setting alarms for each computation channel.
If you change the computing equation or the recording span, set the alarm again.
Procedure
1.
Hold down the
MENU
key for 3 seconds to enter Setting mode.
2.
Press the key or SHIFT + key to select Math and then press the key.
3.
Press the key or SHIFT + key to select Alarm and then press the
key.
4.
Set each item and press the key.
Use the
key or SHIFT + key to select values.
For the procedure on how to enter values or characters, see section 4.2.
If you press the ESC key in the middle of the operation, the settings entered up to
then are cancelled, and the display returns to a higher level menu.
5.
When the Setting complete screen appears, do either of the following:
Press the
key to set other channels.
If you are done, press the ESC key.
6.
Hold down the
MENU
key for 3 seconds to return to Operation mode.
Set the channel range.
The new setting takes effect.
ESC/?
Select the level number between 1 and 4.
Select On to set the alarm. When set
to On, the settings below can be entered.
Select the alarm type.
Select the value used to turn On the alarm.
Turn relay On when outputting alarms on
the relay. This setting is valid only on
models with the /A1, /A2, or /A3 option.
Specify the alarm output relay No.
First channel Last channel
0A-0A CH/level 1
Setting complete
Set=Math
CH=0A-0A
Math=Alarm
Level=1
Alarm=Off
Type=H
Value= 0.00
Relay=Off
Relay No.=I01
