YOKOGAWA MuR10000 User Manual

9-15
IM 04P01B01-01E
Operations Related to the Computation Function (/M1 Option)
1
2
3
4
5
6
7
8
9
10
11
12
App
Index

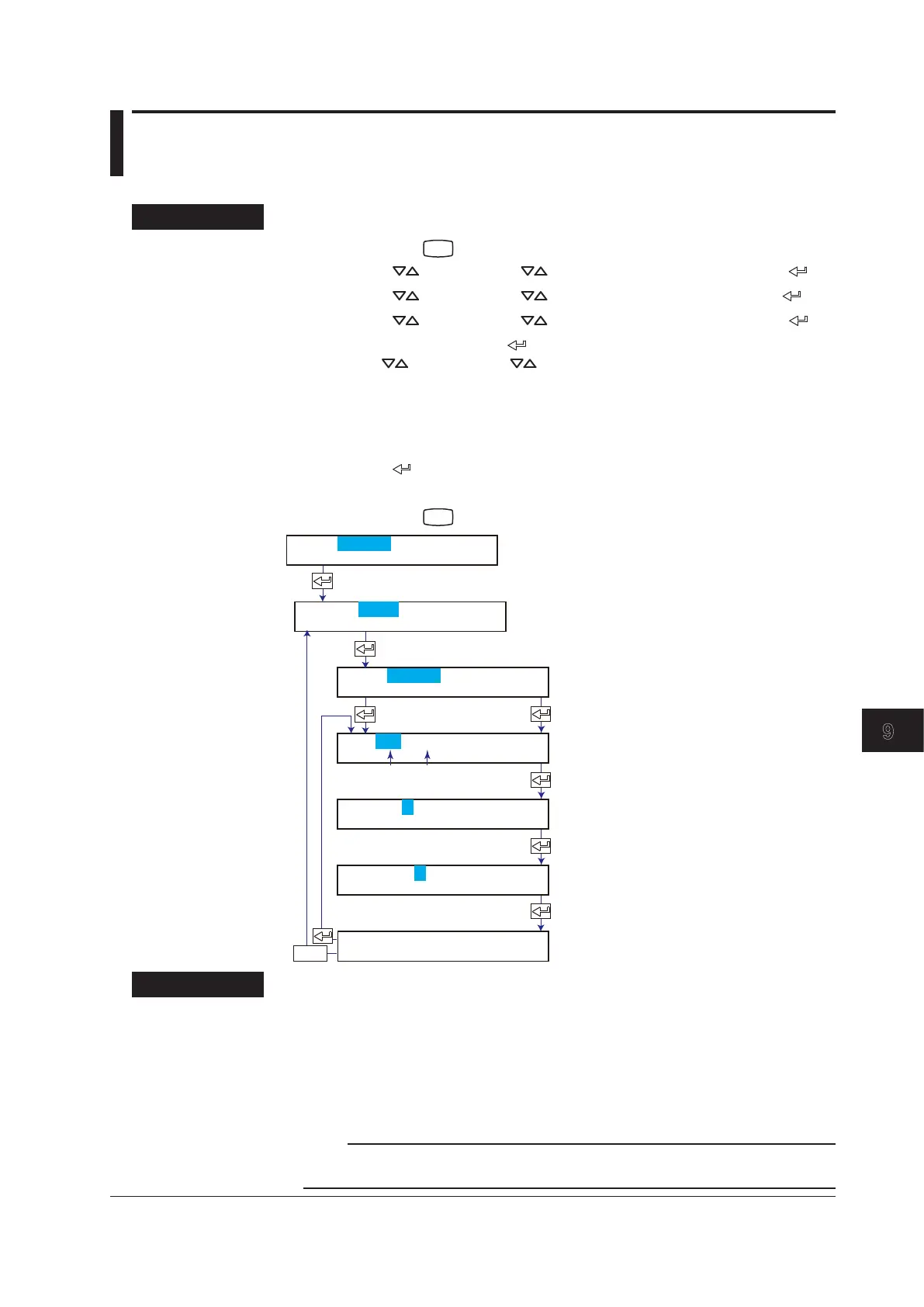

9.7 Setting Recording Zones for Each Channel
(Zone Recording)
This section explains the details of setting the recording zone for each computation channel.
Procedure
1.
Hold down the
MENU
key for 3 seconds to enter Setting mode.
2.
Press the key or SHIFT + key to select Math and then press the key.
3.
Press the key or SHIFT + key to select Aux and then press the key.
4.
Press the key or SHIFT + key to select Zone and then press the key.
5.
Set each item and press the key.
Use the
key or SHIFT + key to select values.
For the procedure on how to enter values or characters, see section 4.2.
If you press the ESC key in the middle of the operation, the settings entered up to
then are cancelled, and the display returns to a higher level menu.
6.
When the Setting complete screen appears, do either of the following:
Press the
key to set other channels.
If you are done, press the ESC key.
7.
Hold down the
MENU
key for 3 seconds to return to Operation mode.
Set the channel range.
The new setting takes effect.
ESC/?
Set the leftmost value of the recording
zone.
Set the rightmost value of the recording
zone.
First channel Last channel
0A-0A Channel
Setting complete
Set=Math
Math=Aux
Aux=Zone
CH=0A-0A
Left= 0
Right=100
Explanation
Zone
The recording zone can be set in the following range.
Leftmost position: 0 mm to 95 mm
Rightmost position: 5 mm to 100 mm
Set a larger value for the rightmost position than the leftmost position.
Set at least 5 mm for the zone width.
Note
If the zone is set to a value less than 40 mm, scale printout of periodic printout cannot be
executed.
