YOKOGAWA MuR10000 User Manual

IM 04P01B01-01E
6-10

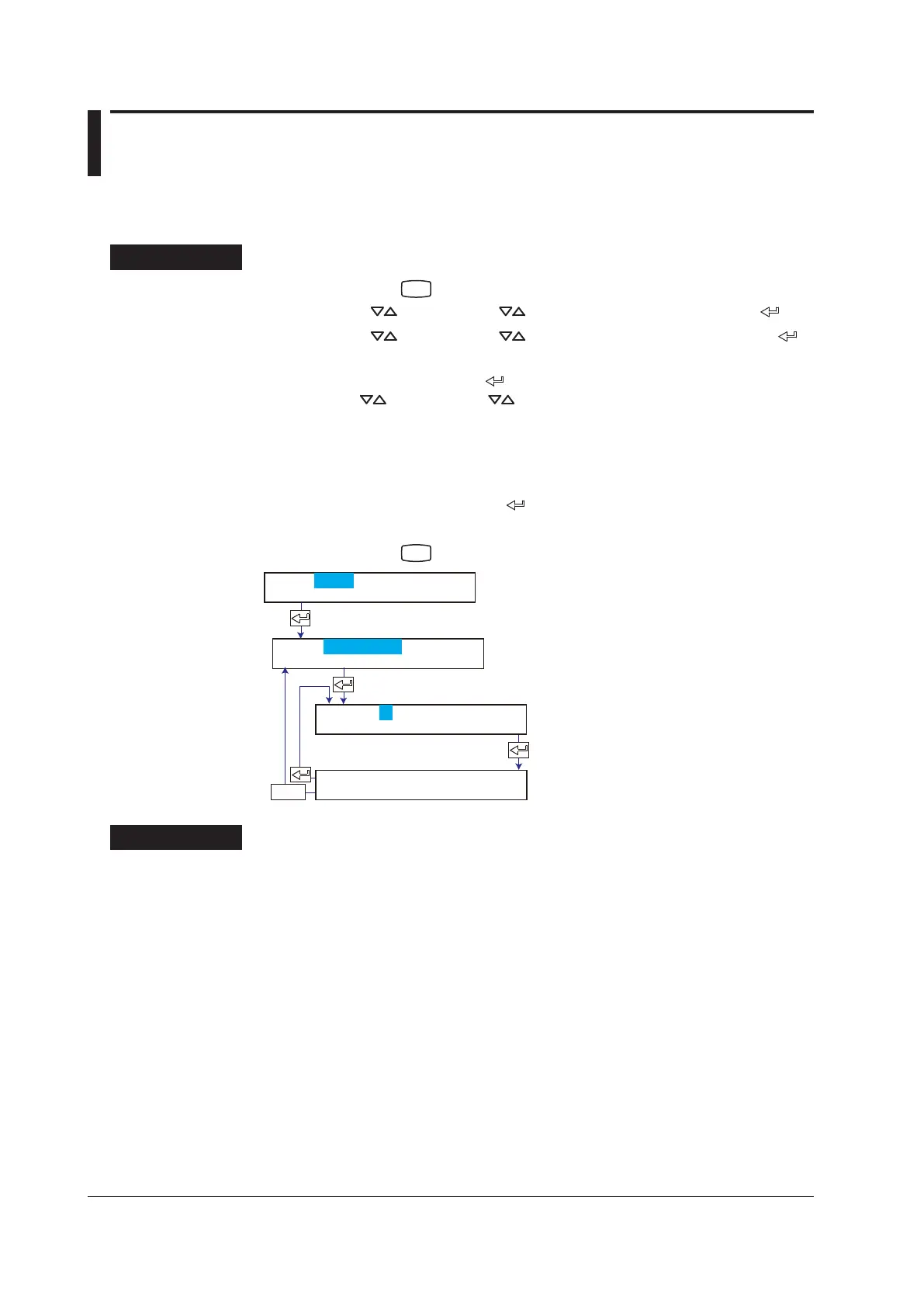

6.9 Setting the Secondary Chart Speed (Remote
Control Function, /R1)
This section explains the details of setting the secondary chart speed when the chart
speed is to be switched using the remote control function (/R1 option).
Procedure
1.
Hold down the
MENU
key for 3 seconds to enter Setting mode.
2.
Press the key or SHIFT + key to select Aux and then press the key.
3.
Press the key or SHIFT + key to select Chart2 and then press the
key.
4.
Set each item and press the key.
Use the
key or SHIFT + key to select values.
For the procedure on how to enter values or characters, see section 4.2.
If you press the ESC key in the middle of the operation, the settings entered up to
then are cancelled, and the display returns to a higher level menu.
5.
When the Setting complete screen appears, do either of the following:
To correct the setting, press the
key.
If you are done, press the ESC key.
6.
Hold down the
MENU
key for 3 seconds to return to Operation mode.
Set the chart speed.
The new setting takes effect.
ESC/?
Set=Aux
Aux=Chart2
mm/h= 20
Chart speed2
Setting complete
Explanation
Chart Speed
See section 5.4.
<Related Topics> Setting the remote control function: Section 7.18
