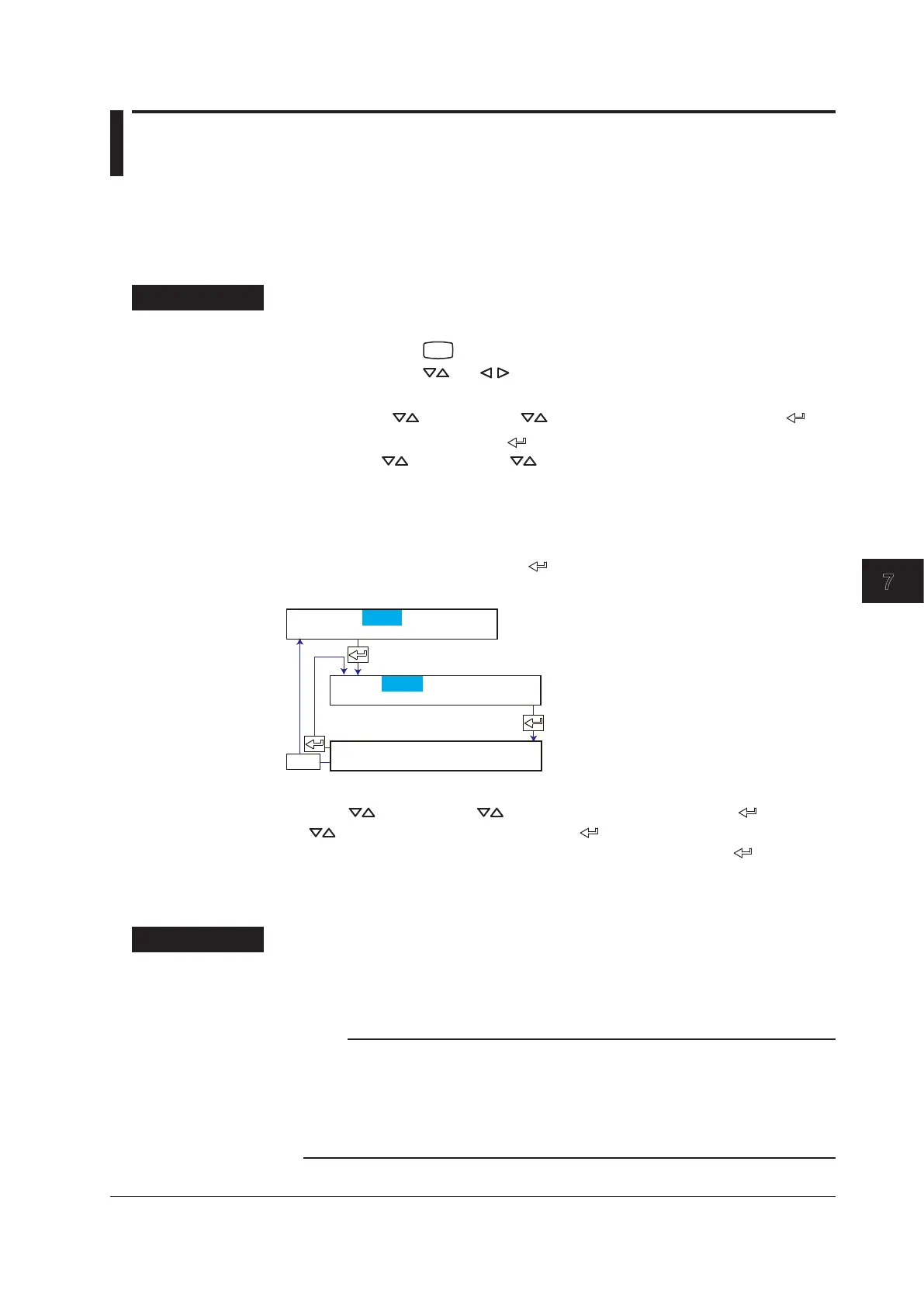

7.6 Recording by Compensating for the Pen Offset
along the Time Axis (Pen Model)
This section explains the details of setting the compensation for the pen offset along the
time axis (pen model).
Basic Setting mode cannot be entered when recording is in progress or when
computation is in progress on models with the computation function (/M1 option).
Procedure
Changing the Settings
1.
Hold down the
MENU
key for 3 seconds to enter Setting mode.
2.
Hold down the and keys simultaneously for 3 seconds to enter Basic
Setting mode.
3.
Press the key or SHIFT + key to select POC and then press the key.
4.
Set each item and press the key.
Use the
key or SHIFT + key to select values.
For the procedure on how to enter values or characters, see section 4.2.
If you press the ESC key in the middle of the operation, the settings entered up to
then are cancelled, and the display returns to a higher level menu.
5.
When the Setting complete screen appears, do either of the following:
To correct the setting, press the
key.
If you are done, press the ESC key.
Select On to record by compensating
for the pen offset along the time axis.
The new setting takes effect.
ESC/?
POC
Setting complete
POC=Off
Basic=POC
Applying the Changes and Returning to Operation Mode
Press the key or SHIFT + key to select End and then press the key. Press
the
key to select Store and then press the key. The changes are applied, and
the screen returns to Operation mode. If you select Abort and press the
key, the
changes are discarded, and the screen returns to Operation mode. Press the ESC key to
return to the Basic= screen.
Explanation
POC (Pen Offset Compensation)
On: Enables pen offset compensation.
Off: Disables pen offset compensation.
Note
When pen offset compensation is enabled, all pens are aligned with the reference pen (pen that
is furthest to the back: pen 2 on the 2-pen model, pen 3 on the 3-pen model, and pen 4 on the
4-pen model) for recording. When recording is started, only the reference pen moves until the
offset is compensated. This is not a malfunction.
When pen offset compensation is enabled, an asterisk is printed by the time on the periodic
printout.
