6.15 Setting the Message Format (/BT1 Option)
In the 5 message printouts, up to 35 characters can be printed out including the date/time
and measured values.*
• Under Message format, you can specify the printout contents of date/time, message
string, measured values,* and the order of these.
• Messages including measured values* can be printed out even when Start printout or
End printout is disabled.
• For entering message strings, see section 6.8.
* Computed values can also be included on models with the /M1 option.

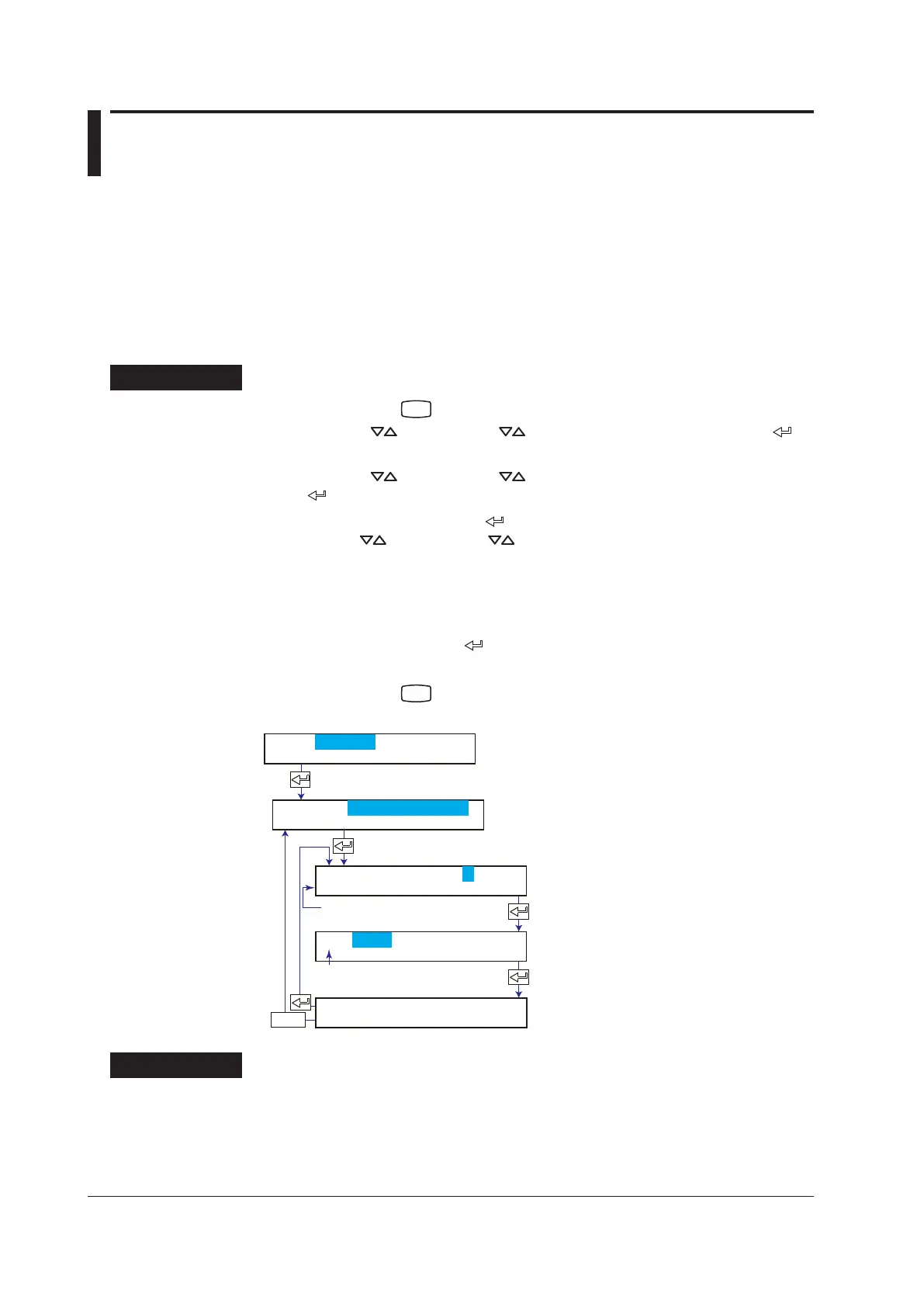

Procedure
1.
Hold down the
MENU
key for 3 seconds to enter Setting mode.
2.
Press the key or SHIFT + key to select Batch and then press the
key.
3.
Press the key or SHIFT + key to select MSG format and then press the
key.
4.
Set each item and press the key.
Use the
key or SHIFT + key to select values.
For the procedure on how to enter values or characters, see section 4.2.
If you press the ESC key in the middle of the operation, the settings entered up to
then are cancelled, and the display returns to a higher level menu.
5.
When the Setting complete screen appears, do either of the following:
To correct the setting the
key.
If you are done, press the ESC key.
6.
Hold down the
MENU
key for 3 seconds to return to Operation mode.
Entering message format
Set=Batch
Message1 format
Setting complete
Select message number.
The new setting takes effect.
Batch=MSG format
13:H:M L16
Set the message format.
ESC/?
Remaining number of characters
that can be printed out.
String entered for the message
Message No.=1
Process-1
Explanation
Message No.
Select from 1 to 5.
