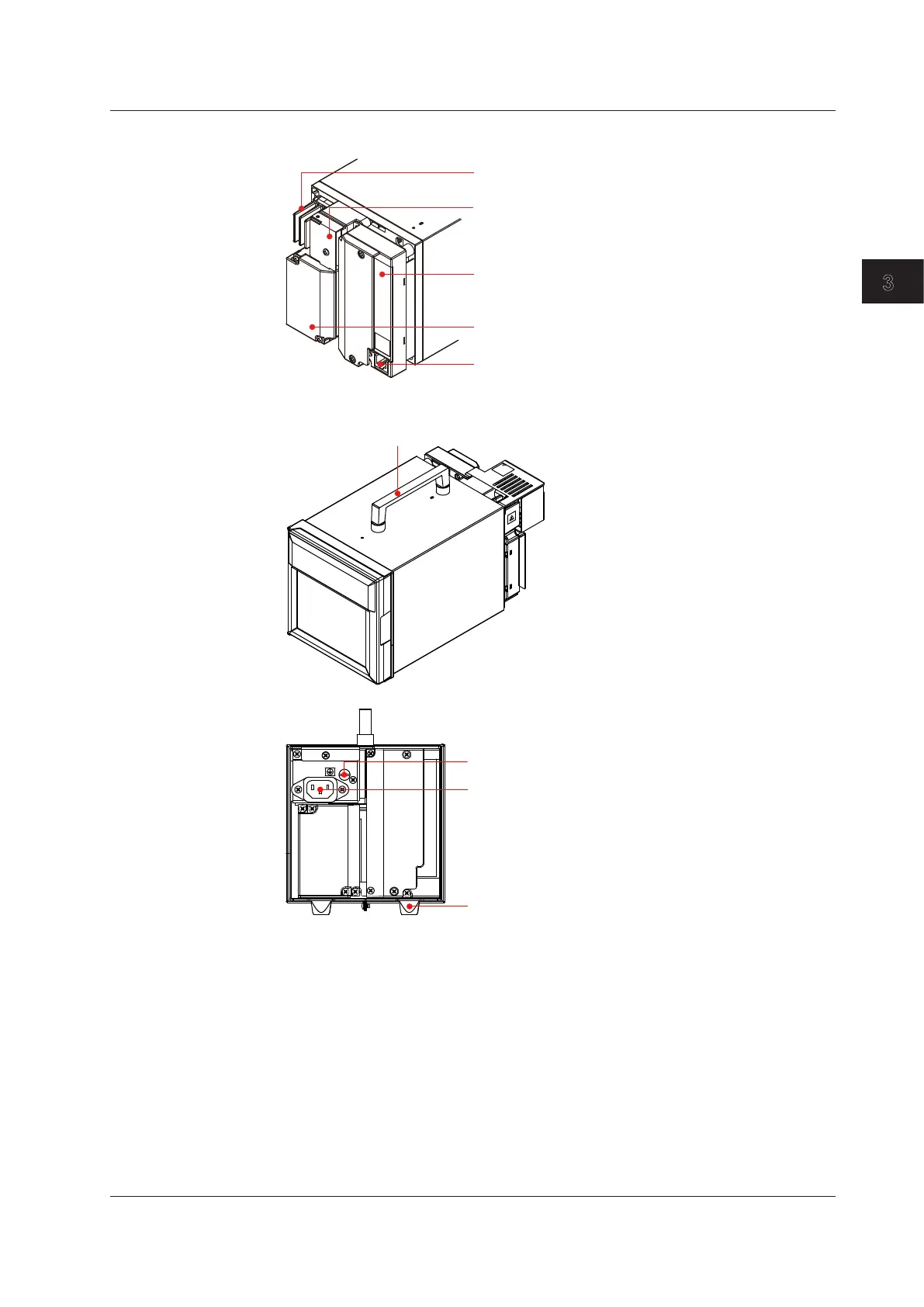

Rear Panel
Measuring input terminal block
Measuring input terminals
Heatsink
Dissipates the internal heat.
Optional terminal block
This is where terminals or ports used by options such
as alarm output relays and communication interface
are installed.
Ethernet port (/C7 option)
Power terminal block
The power terminal and protective ground terminal.
Portable Type (/H5x Option)
Carrying handle
Feet (4 pieces)
100-240V~
50/60Hz
40VA MAX
Protective ground terminal (spare)
Power terminal
With protective ground terminal
(attach the specified power cord)
