4-1

IM 04P01B01-01E

Common Operations for Setting Functions and Setup Menu

Chapter 4 Common Operations for Setting Functions and Setup Menu

App

Index

4.1 Run Modes

The recorder has three run modes.

Operation Mode

This mode is used for normal recording operation. The recorder enters this mode

when the power is turned ON. The operations that can be carried out in this mode are

described in chapter 3. The details on the data display setup screen are explained in

chapter 8.

Setting Mode

This mode is used to set the input range, alarms, chart speed, and other parameters.

These settings can be changed while recording is in progress. However, the input

range of measurement channels and the computing equation, unit, constant, and TLOG

setting of computation channels cannot be changed while computation (/M1 option) is in

progress. The operations that can be carried out in this mode are described in chapter 5

and 6.

Basic Setting Mode

This mode is used to set the basic specifications of the recorder such as the

thermocouple burnout detection function and the alarm output relay operation. This mode

cannot be entered while the recorder is recording or while computation is in progress

on the computation function (/M1 option). Measurement, recording, and alarm detection

cannot be carried out in this mode. The operations that can be carried out in this mode

are described in chapter 7.

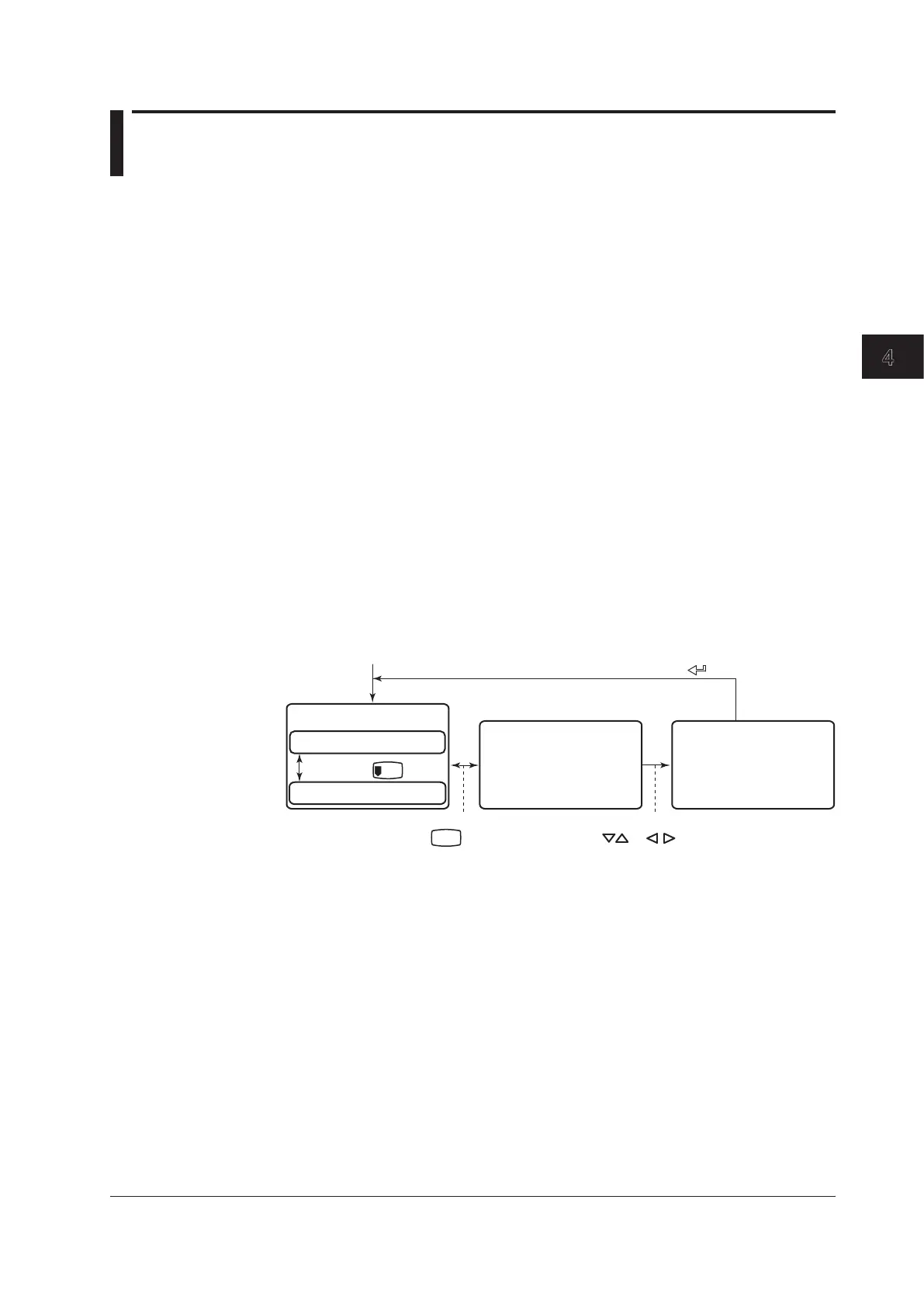

Operation mode

Power ON

Setting mode

Data display setup screen

Basic Setting mode

Display “End=Store” and press

Hold down

for 3 s

Hold down

for 3 s

Data display screen
