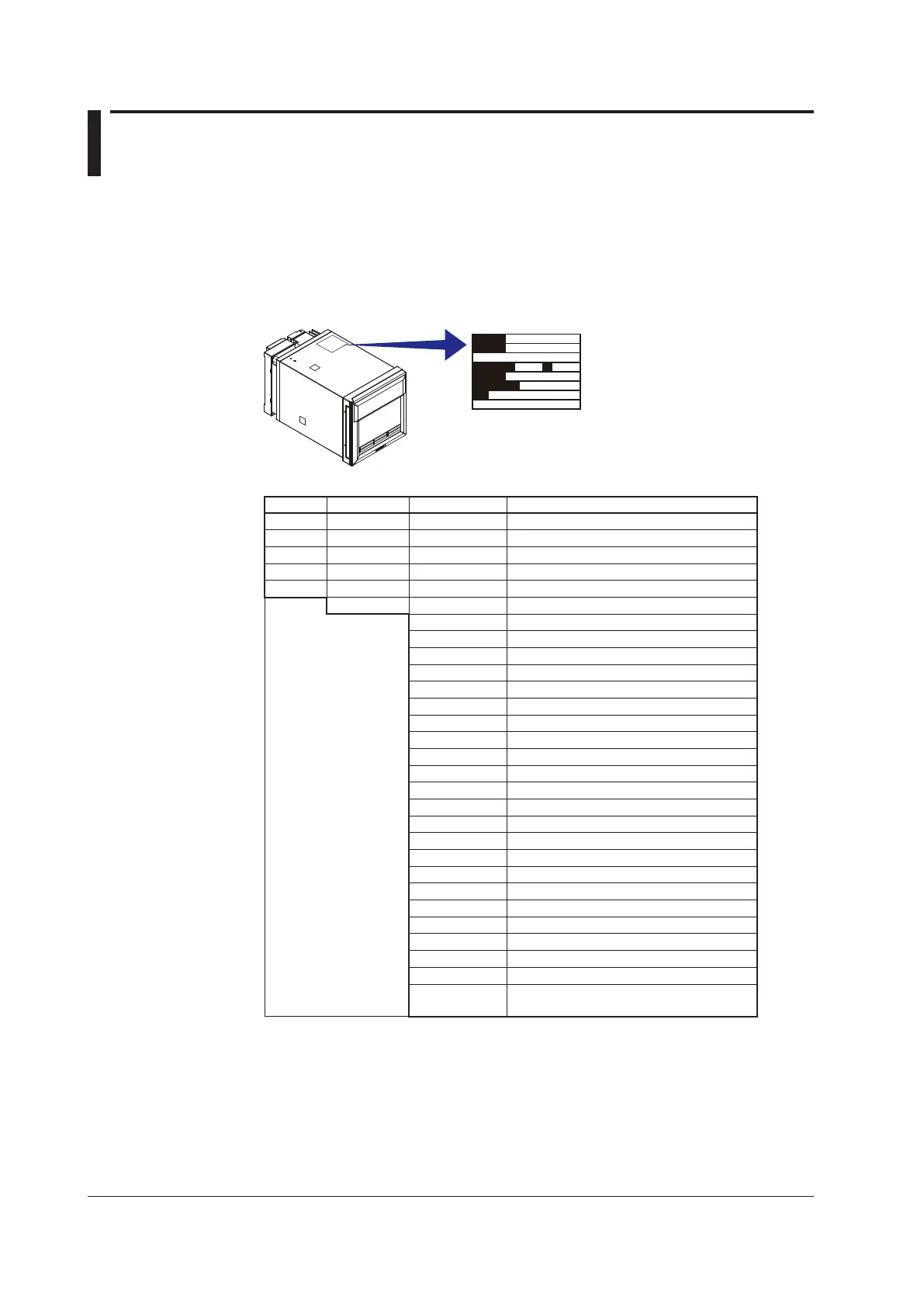

Checking the Contents of the Package
Unpack the box and check the contents before operating the recorder. If some of the
contents are not correct or missing or if there is physical damage, contact the dealer from
which you purchased them.
Checking the Model
A name plate is affixed to the recorder. Check that the model name and suffix code given
on the name plate on the rear panel match those on your order.
MODEL
SUFFIX
STYLE
FREQUENCY
NO.
SUPPLY
SH
MODEL and SUFFIX Code
Model Suffix Code Optional Code Description
436101 µR10000 1 pen recorder
436102 µR10000 2 pen recorder
436103 µR10000 3 pen recorder
436104 µR10000 4 pen recorder
436106 µR10000 6 dot recorder
-2 English/German/French & deg F/DST
/A1 Alarm output relay 2 points
1
/A2 Alarm output relay 4 points
1
/A3 Alarm output relay 6 points
1, 2
/C3 RS-422A/485 interface
3
/C7 Ethernet (10BASE-T) interface
3
/F1 Fail/Chart end detection and output
2
/H2 Clamped input terminal
4
/H3 Non-glare door glass
/H5D Portable type Power cord UL, CSA st’d
7
/H5F Portable type Power cord VDE st’d
7
/H5R Portable type Power cord AS st’d
7
/H5J Portable type Power cord BS st’d
7
/H5H Portable type Power cord GB st’d
7
/M1 Mathematical function
/N1 Cu10, Cu25 RTD input
/N2 3 legs isolated RTD
4, 5
/N3 Expansion inputs
6
/P1 24 VDC/AC power supply
7
/R1 Remote control 5 points
/CC1 Calibration Correction
/BT1 Header printout
/EM1 SD memory card
8
/S#
Customized Product; for more detail, please
see IM 4361-S# or IM 4371-S#
9
1 /A1, /A2, and /A3 cannot be specified simultaneously.
2 /A3 and /F1 cannot be specified simultaneously.
3 /C3 and /C7 cannot be specified simultaneously.
4 /H2 and /N2 cannot be specified simultaneously.
5 Valid only on the model 436106.
6 14 types of input including Pt50 RTD, PR40-20, and Platinel TC.
7 /H5x and /P1 cannot be specified simultaneously.
8 /C3 and /EM1 cannot be specified simultaneously.
9 For customized product, the product is identified by the option code of /S# (where ‘#’ is a
number). Contact your supplier in case your instrument has option /S#, and you are not in
the possession of IM 4361-S# or IM 4371-S#.
