7-15
IM 04P01B01-01E
Setup Operations for Changing/Adding Functions (Basic Setting Mode)
7

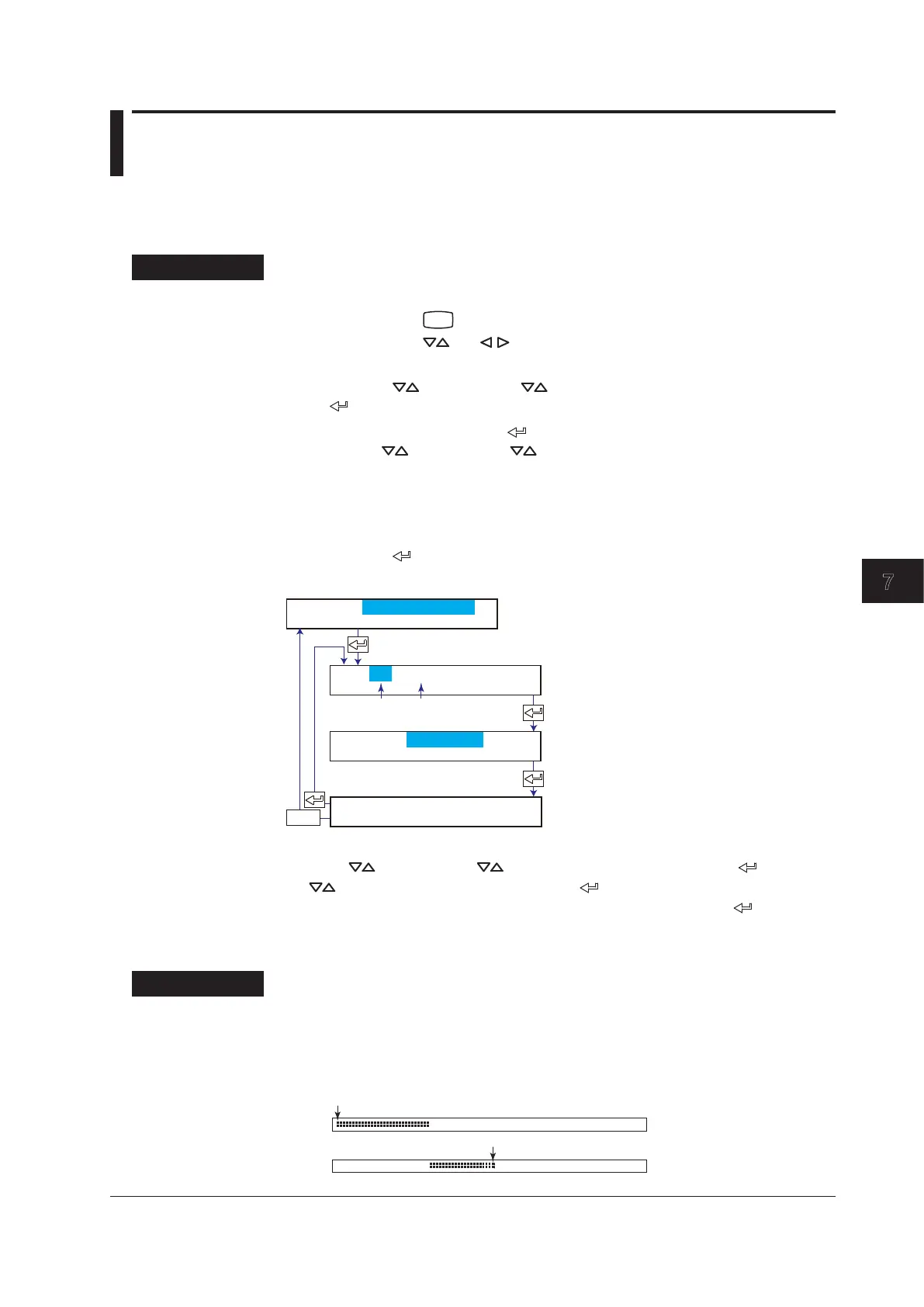

7.9 Setting the Bar Graph Display Mode
This section explains the details of setting the bar graph display mode.
Basic Setting mode cannot be entered when recording is in progress or when
computation is in progress on models with the computation function (/M1 option).
Procedure
Changing the Settings
1.
Hold down the
key for 3 seconds to enter Setting mode.
2.
Hold down the and keys simultaneously for 3 seconds to enter Basic
Setting mode.
3.
Press the key or SHIFT + key to select Bar graph and then press the
key.
4.
Set each item and press the key.
Use the
key or SHIFT + key to select values.
For the procedure on how to enter values or characters, see section 4.2.
If you press the ESC key in the middle of the operation, the settings entered up to
then are cancelled, and the display returns to a higher level menu.
5.
When the Setting complete screen appears, do either of the following:
Press the
key to set other channels.
If you are done, press the ESC key.
Set the channel range.
Select the display mode of the bar graph.
The new setting takes effect.
ESC/?
First channel Last channel
01-01 Channel
Setting complete
Basic=Bar graph
Graph=Normal
CH=01-01
Applying the Changes and Returning to Operation Mode
Press the key or SHIFT + key to select End and then press the key. Press
the
key to select Store and then press the key. The changes are applied, and
the screen returns to Operation mode. If you select Abort and press the
key, the
changes are discarded, and the screen returns to Operation mode. Press the ESC key to
return to the Basic= screen.
Explanation
Graph
Normal: Sets the base point of the bar graph to the left or right of the recording span
whichever is smaller in value.
Center:
Sets the base point of the bar graph to the 50% position of the recording span.
Normal
Starting point of the bar graph
Starting point of the bar graph
Center
