IM 04P01B01-01E

5-8

5.1 Setting the Input Range

• Scale Left, Scale Right, and Decimal Place

Selectable range (mantissa): –20000 to 30000

 Example: Thevalueintherangeof–100.00to350.00cannotbespecied.The

mantissa of Scale_R is 35000, which exceeds the upper limit of 30000.

Set in the range of –100.0 to 350.0.

Decimal place: XXXXX, XXXX.X, XXX.XX, XX.XXX, X.XXXX

The decimal place is set using Scale_L. It cannot be set using Scale_R.

Example: Change 0.00 to 0.0.

Press the

key to move the cursor to the last digit of 0.00.

Space

Press the key to change the value to 0.0 .

• Low-cut and Low-cut Point

If low-cut is set to On, set the low-cut point.

Selectable range of the low-cut point: 0.0 to 5.0% of the recording span

Values below the low-cut point is set to 0% (scale left value) of the recording span.

Note

• The displayable/printable range of scale values is –19999 to 30000 excluding the decimal.

• If the leftmost value of the scale is set to –20000 (excluding the decimal) and the low-cut

value is set to –20000, the value when the low-cut function is applied is displayed as “–

Over.”

<Related Topics> Setting the unit: Section 5.3

Enabling the low-cut function: Section 7.15

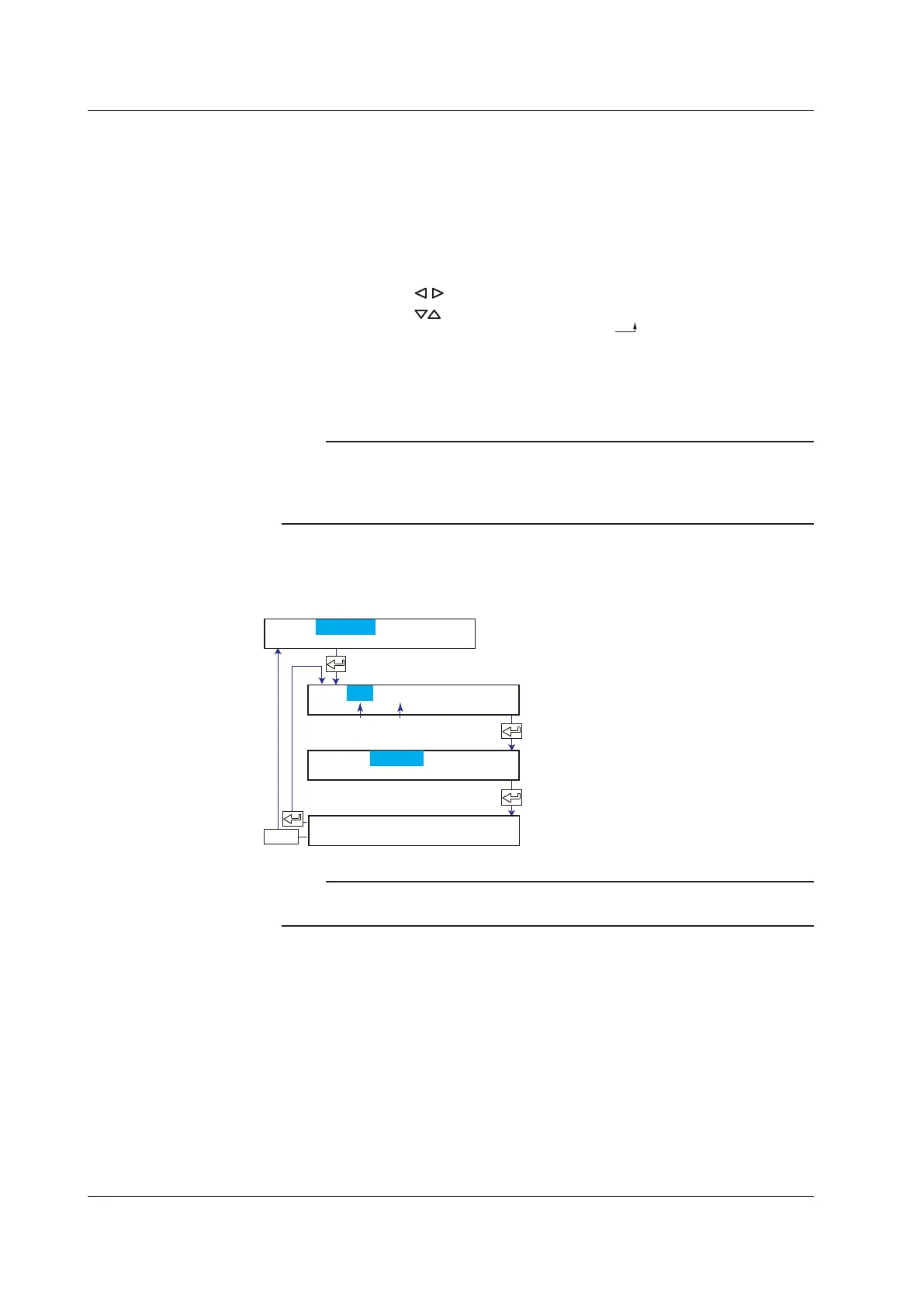

Skip (Unused Channels)

Select Skip.

Set the channel range.

The new setting takes effect.

First channel Last channel

ESC/?

Set=Range

CH=01-01

Mode=Skip

01-01 Channel

Setting complete

Note

Do not use channels set to skip as a reference channel of delta computations or in computing

equations of the computation function (/M1 option).
