1-3
IM 04P01B01-01E
Functional Explanation and Setup Guide
For the procedure to set the functions, see section 1.10, “Function Setup Guide.”
1

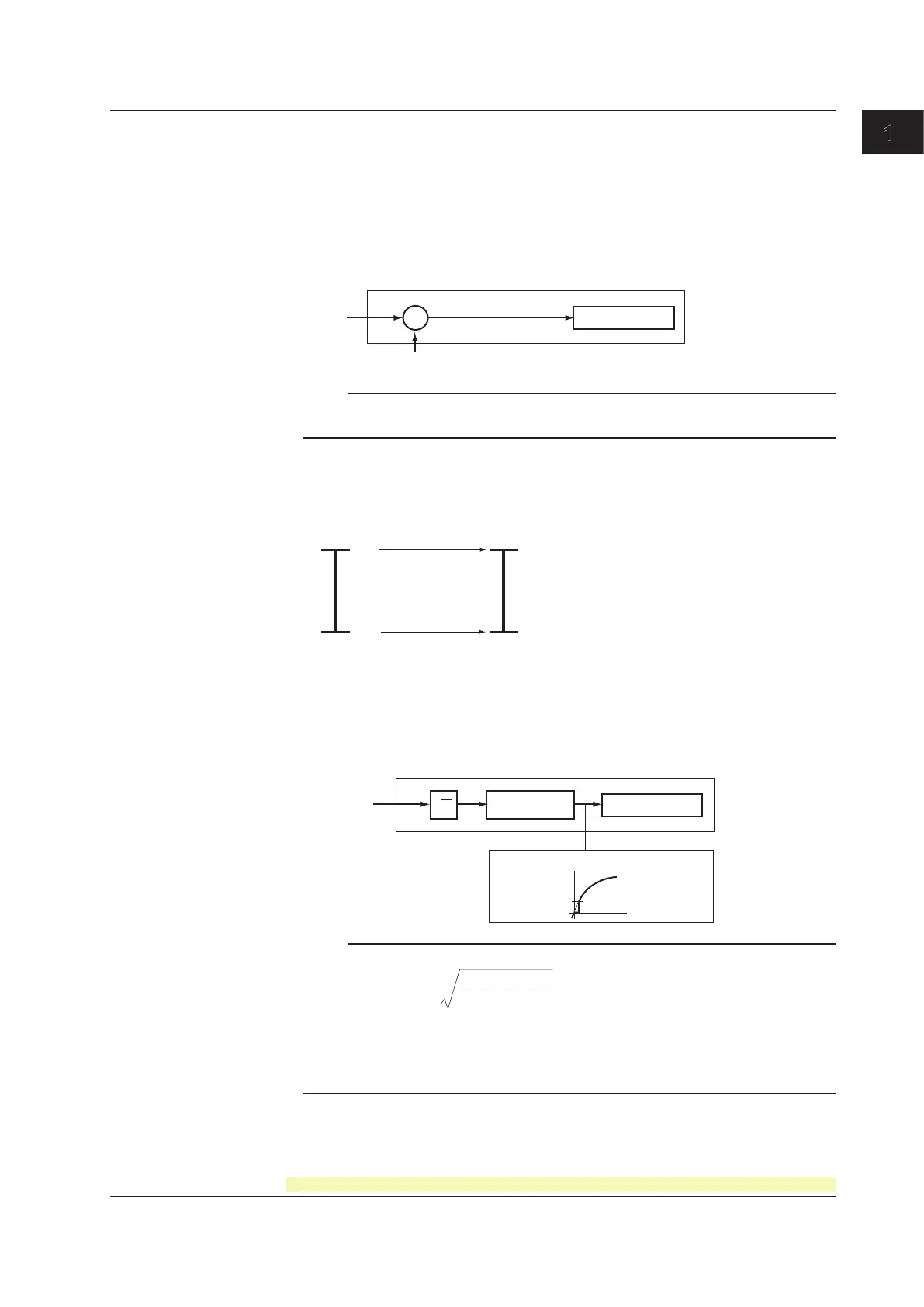

• Delta Computation
The value obtained by subtracting the measured value of another channel (called
the reference channel) from the input value of the channel set to delta computation is
used as the measured value of that channel. The reference channel must be assigned
to a channel whose channel number is less than that of the channel on which delta
computationisspecied.Thechannelonwhichdeltacomputationisspeciedis
automatically set to the same range type as the reference channel.
Input
value
Measured value on the reference channel
Channel set to delta computation
Measured value
–
Note
A channel whose input type is set to DC voltage, TC, or RTD can be designated as a reference
channel. However, channels set to scaling or square root computation cannot be designated.
• Scaling
The input values are scaled to values in the appropriate unit to be used as measured
values.
10 V
300.0°C
Measured valueInput value
• Square Root Computation
When the input type is DC voltage, the square root of the input value is calculated, the
result is scaled to a value in the appropriate unit, and used as the measured value of
thechannel.Also,thelow-cutfunction(inputlessthanagivenmeasuredvalueisxed
to 0% (scale left value)) can be used.
Low-cut value
Result of square
root computation
Measured value
Input value
Channel set to square root computation
Measured value
√
Scaling
Note
The square root computation on the recorder uses the following formula.
V - V
V - V
+ F
x
x
max
max min
min
min
where Vmin (leftmost value of span) < Vmax (rightmost value of span)
Fmin (leftmost value of scale after scaling) < Fmax (rightmost value of scale after
scaling)
Vx is the input voltage and Fx is the scaled value
<Related Topics> Setting the input range: Section 5.1
1.2 Measuring Input Section
