YOKOGAWA MuR10000 User Manual

App-7
IM 04P01B01-01E
Appendix
Appendix 2 Periodic Printout Interval
1
2
3
4
5
6
7
8
9
10
11
12
App
Index
When the Interval Is Set to Manual
If you select Manual, you can set the interval.
• Chart Speeds That Allows Periodic Printout
Pen Model Dot Model
Chart Speed Printout Availability Chart Speed Printout Availability
Up to 9 mm/h No Up to 9 mm/h No
10 to 1500 mm/h Yes 10 to 100 mm/h Yes
1600 mm/h or higher No 101 mm/h or higher No
• Interval Settings
Select from 10, 12, 15, 20, 30 minutes, 1, 2, 3, 4, 6, 8, 12, and 24 hours.
• Printout Items
Item Number of Lines Initial Setting Notes (Ref. Section)
Date/Time 2 - Always printed.
Measured value and
alarm status
1 line/channel Printed Print or not print selectable for
each channel (section 6.6).
Scale 2 Printed Print or not print selectable
(section 7.7).
Pen color
(Pen model only)
1 Printed Print or not print selectable
(section 7.7).
Chart speed 1 - Always printed.

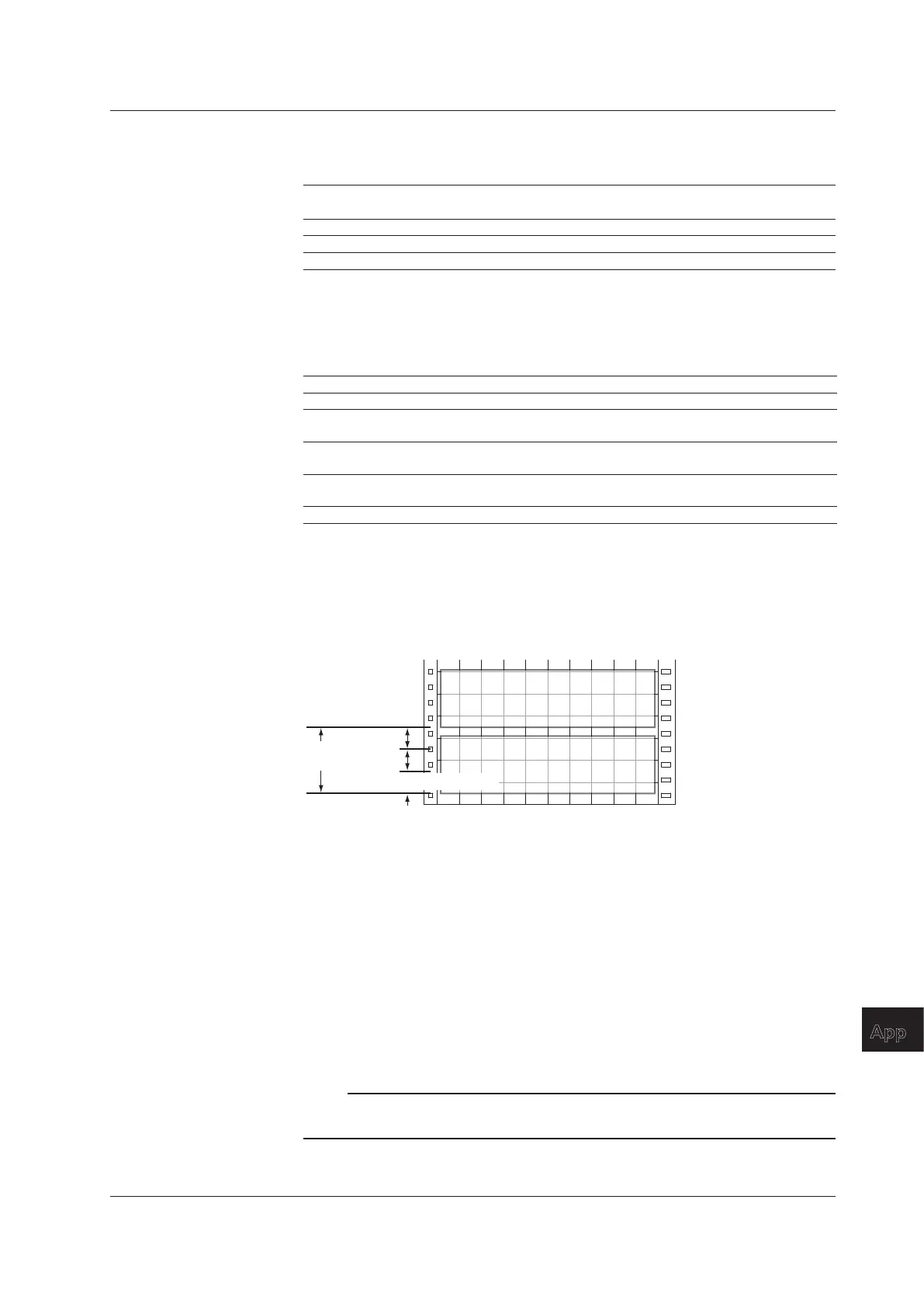

• Relationship between the Printout Items and Interval
The next periodic printout does not start until all items of the previous periodic printout
are printed.
 Ifallitemscannotbeprintedinthespeciedinterval,theprintoutintervalincreasesby
anintegermultipleofthespeciedinterval.
Periodic printout
Periodic printout
Actual
interval
Specified interval
Example: Dot model, chart speed: 20 mm/h, interval: 30 minutes, all other settings at
default.
• This setting requires 11 lines to be printed which is equivalent to
approximately 28 mm* of chart paper.
• The length of chart paper that is fed within the interval is 10 mm.
* The length of chart paper needed in the printout varies depending on the chart
speed and dot printing interval.
 Notallitemscanbeprintedinthespeciedintervalof30minutes.
The actual interval is 1 hour and 30 minutes.
If you want to print at a shorter interval, change the settings as follows:
• Reduce the number of printed items.
• Increase the chart speed within the printable range.
Note
Measurement, display, periodic printout, and trend recording (dot model) are not performed by
setting unused channels to Skip (see section 5.1).
