YOKOGAWA MuR10000 User Manual

1-25
IM 04P01B01-01E
Functional Explanation and Setup Guide
For the procedure to set the functions, see section 1.10, “Function Setup Guide.”
1
2
3
4
5
6
7
8
9
10
11
12
App
Index

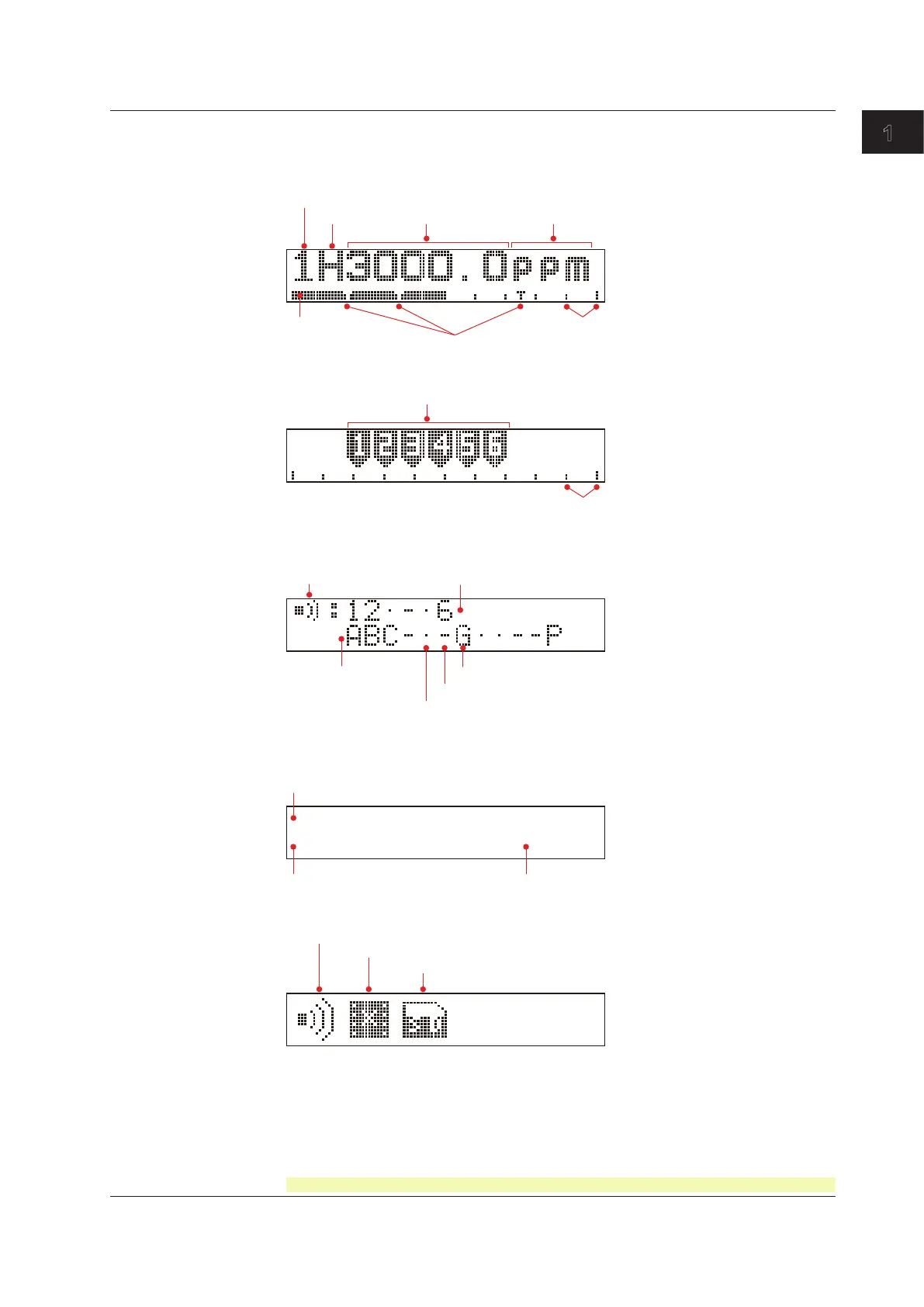

Several display examples are shown below. For details on the display types, see “Display
Function Specifications” in section 12.4.
1 Channel Digital + 1 Bar Graph Display
Channel number
Alarm point mark
Scale
Bar graph
UnitMeasured valueAlarm status
Flag Display
Scale
Flag (the number indicates the channel No.)
Alarm Status Display
Measurement channel
Symbol indicating
an alarm
Computation
channel
Channel on which an alarm is occurring
Channel on which an alarm is not occurring
Channel on which an alarm is not set
Date/Time and Chart Speed
The date format can be specified (see page 1-19).
Date
Chart speedTime
Aug.31.2005 12000
11:26:37 mm/h
Status Display
Remaining amount of chart paper is less than approx. 2 cm (/F1 option)
Alarm status
SD memory card status (/EM1 option)
<Related Topics> Assigning display types to screens: Chapter 8
Switching displays: Section 3.6
Setting the bar graph display mode: Section 7.9
Changing the date format: Section 7.19
Setting the display brightness: Section 6.11
Displaying measured values: Section 12.4.
1.5 Display
