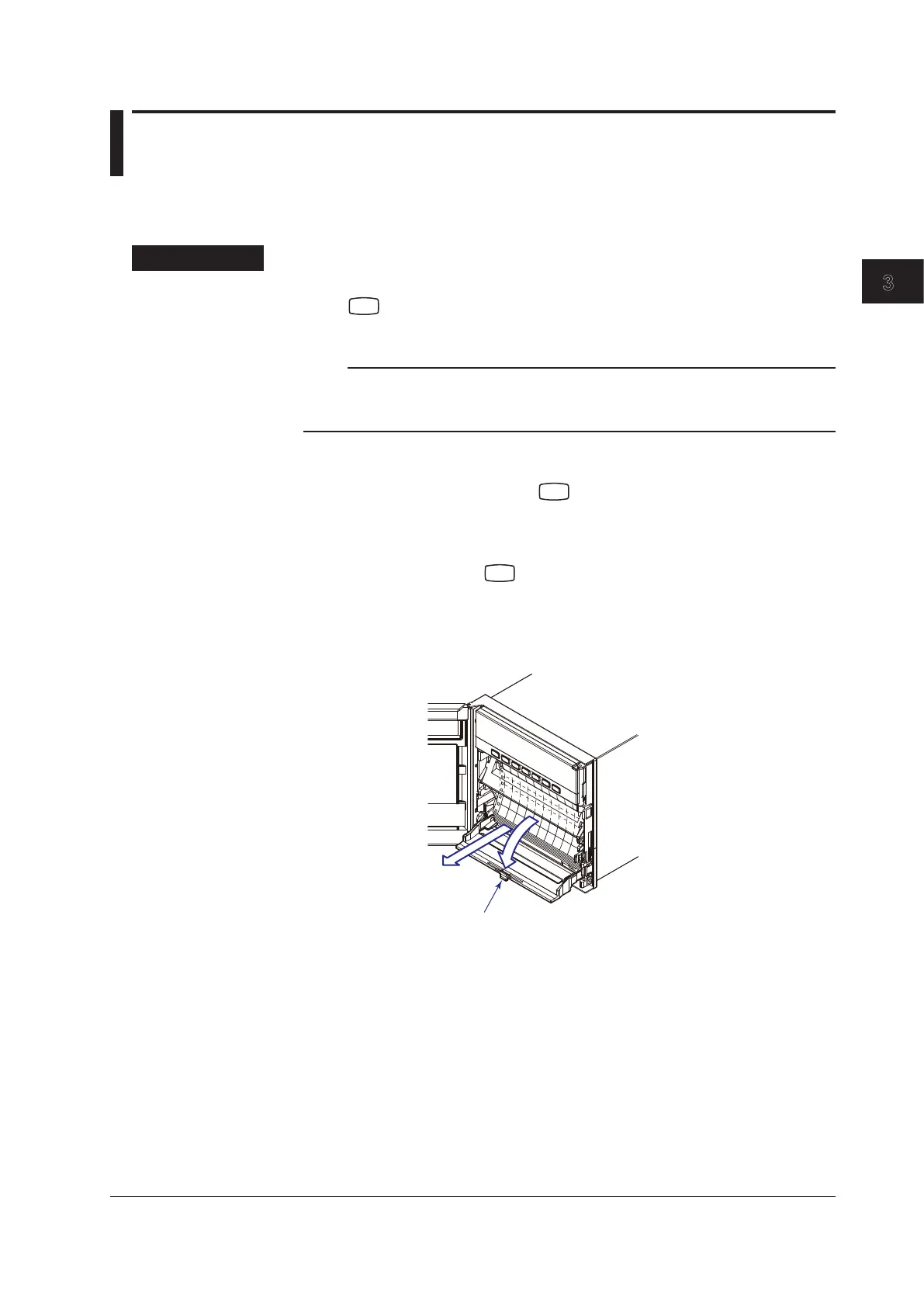

3.5 Starting/Stopping the Recording
This section describes the procedures for starting/stopping the chart feed and checking
the recorded result.
Procedure
Starting the Recording
Press the
RCD
key to start the chart feed.
The status display shows the word “RECORD.”
Note
For models with the FAIL/chart end detection and output function (/F1 option), the chart feed
will not start even when pressing the RCD key if the chart paper is empty or almost out. Insert
new chart paper before pressing the RCD key.
Stopping the Recording
While recording is in progress, press the
RCD
key to stop the chart feed.
The word “RECORD” on the status display clears.
Feeding the Chart Paper Manually
The chart paper is fed while the
FEED
key is held down.
Viewing the Recorded Results
Pull the front cover tab of the chart cassette to open the front cover. The recorded chart
paper can be pulled out for viewing.
Front cover tab
Recorded chart paper can
be pulled out.
<Related Topics> Changing the chart speed: Section 5.4
