Troubleshooting, Maintenance, and Inspections

15.1 Troubleshooting

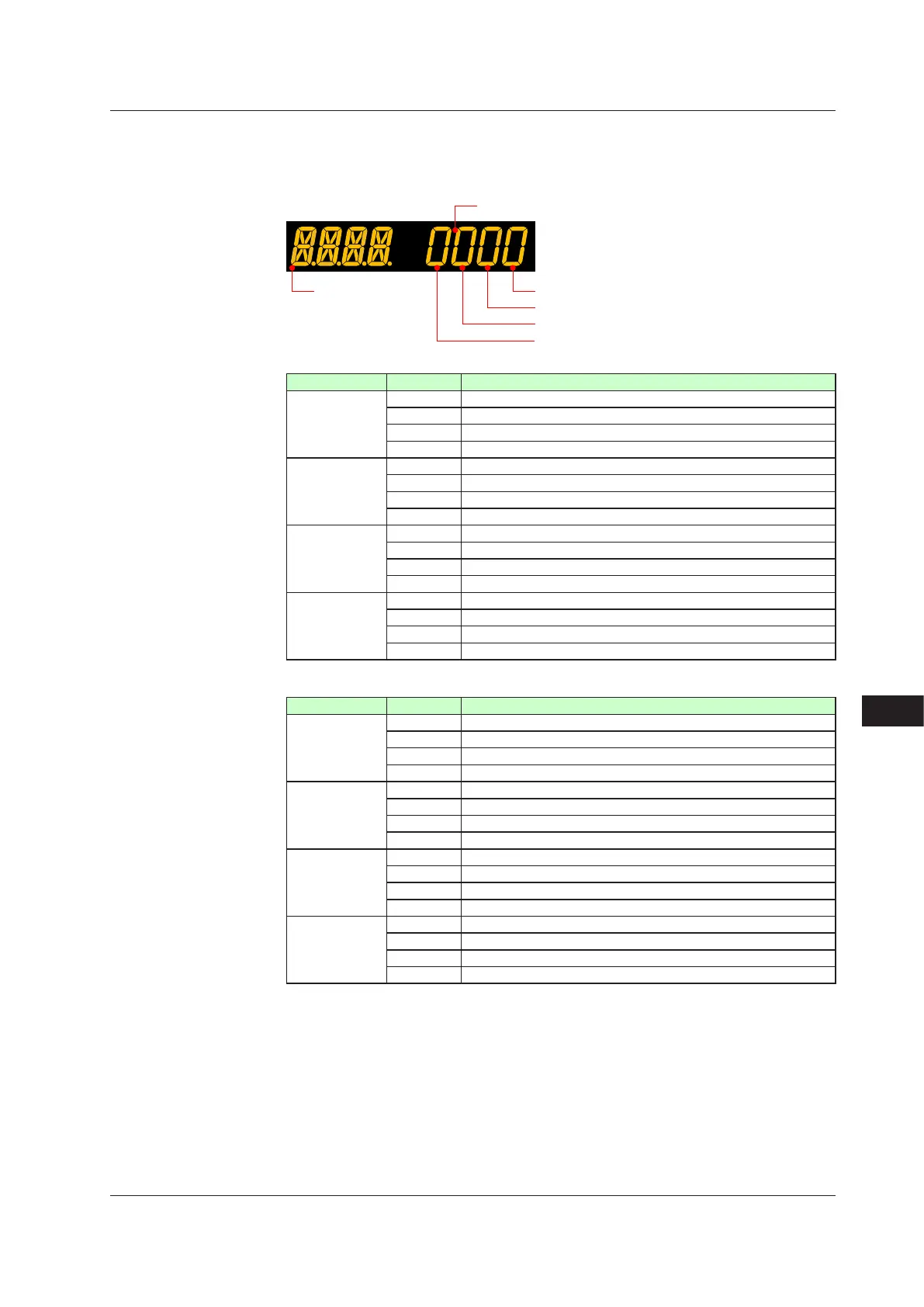

HexadecimalDisplayoftheParameterwhichShowstheErrorDetails

Error confirmation parameters are displayed in hexadecimal.

When the error occurs, "1" is set on the bit of corresponding error.

Data display

1st digit (hexadecimal)

2nd digit (hexadecimal)

3rd digit (hexadecimal)

4th digit (hexadecimal)

Symbol display

Parameter PA.ER

Displayeddigit bit Description

1st digit 0 System data error

1 Calibration value error

2 User (parameter) default value error

3 –

2nd digit 4 Setup parameter error

5 Operation parameter error

6 –

7 –

3rd digit 8 Faulty FRAM

9 –

10 Control parameter error

11 –

4th digit 12 –

13 –

14 –

15 –

Parameter OP.ER

Displayeddigit bit Description

1st digit 0 Non responding hardware in E1-terminal area

1 –

2 –

3 –

2nd digit 4 –

5 –

6 –

7 –

3rd digit 8 Communication error in E1-terminal area

9 –

10 –

11 –

4th digit 12 –

13 –

14 –

15 –
