16-10
IM 05P03D21-01EN

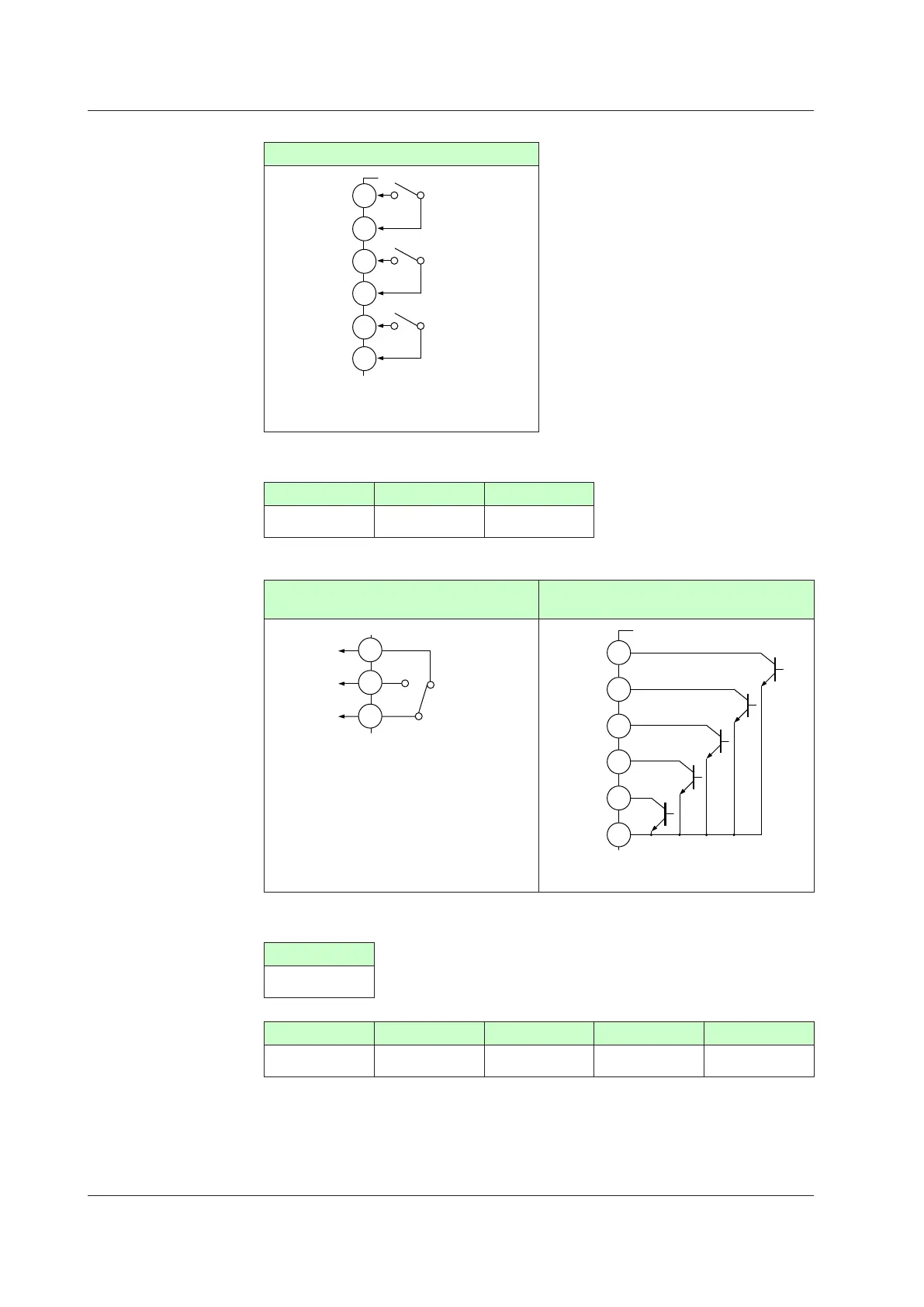

ContactOutputEquippedasStandard
Relaycontact
AL3
AL2
AL1
COM
COM
COM
Contact rating: 240 V AC, 1 A
30 V DC, 1 A (resistance load)
104
105
106
107
108
109
ALM
Factory default: Function is not assigned to the additional contact outputs.
► Contact output function registration: 11.2 Setting Contact Output Function
AL1 terminal AL2 terminal AL3 terminal
Alarm 1
(PV high limit)
Alarm 2
(PV low limit)
Alarm 3
(PV high limit)
AdditionalContactOutputAccordingtotheUM33ASuffixCodes
Sufxcode:Type2=1,2,3 Sufxcodes:Type2=3
NC
NO
COM
101
102
103
ALM4
AL4
Contact rating: 250 V AC, 3 A
30 V DC, 3 A (resistance load)
Transistor contact rating: 24 V DC, 50 mA
DO12
DO11
DO13
DO14
DO15
COM
301
302
303
304
305
306
DO
Factory default: Function is not assigned to the additional contact outputs.
► Contact output function registration: 11.2 Setting Contact Output Function
AL4 terminal
Alarm 4
(PV low limit)
DO11 terminal DO12 terminal DO13 terminal DO14 terminal DO15 terminal
Alarm 5
(PV low limit)
Alarm 6
(PV high limit)
Alarm 7
(PV low limit)
Alarm 8
(PV high limit)
FAIL
16.4 Wiring
