12-2
IM 05P03D21-01EN

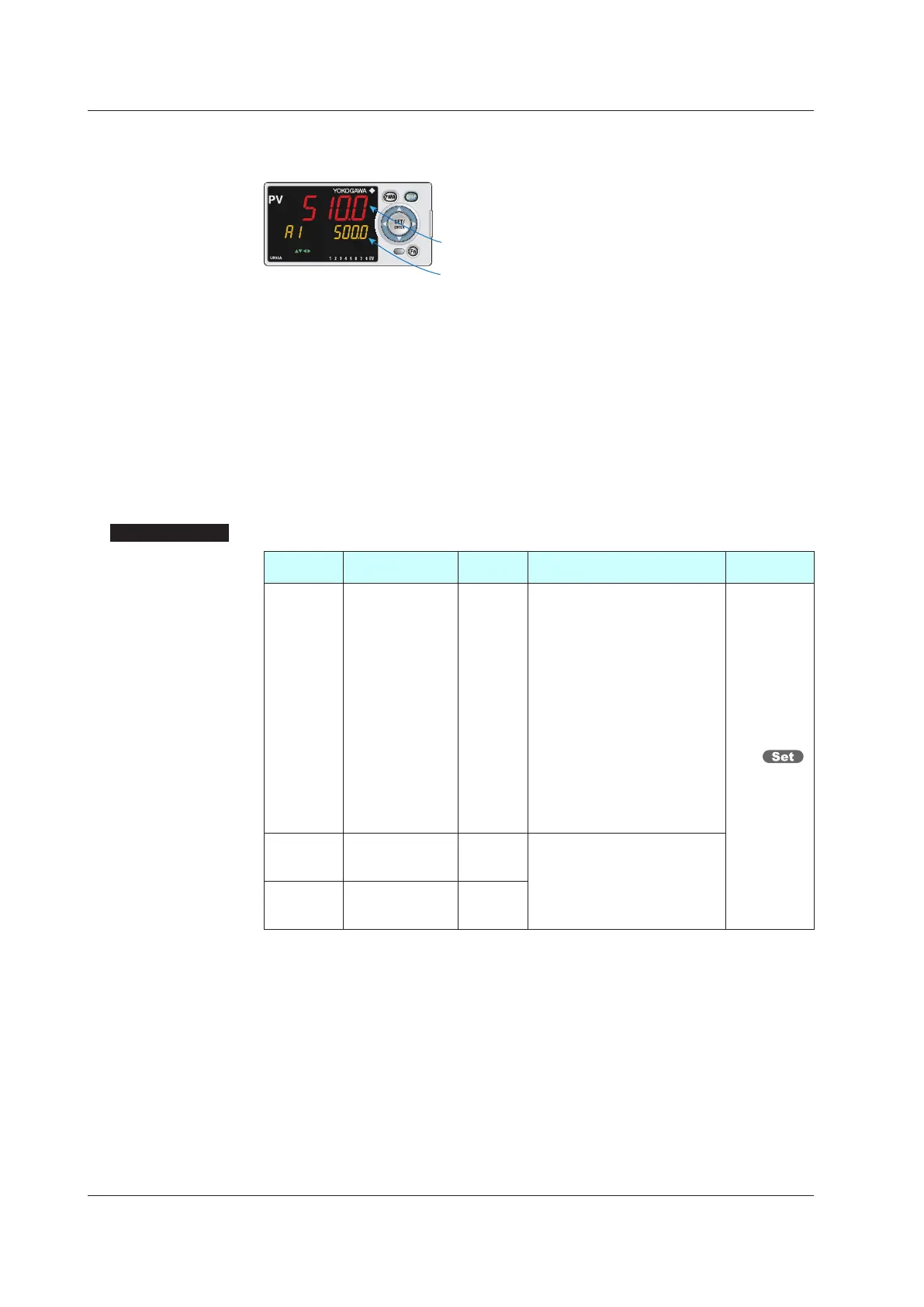

UseinFixedColor
PV display color can be fixed in red. It can also be fixed in white.
PV color: red
A1 color: orange
(A1 color cannot be changed.)
8
Link to DI
The PV display color changes by linking to DI (ON/OFF).
The following is an example for changing the display color by a state of DI1.
Set the parameter PCMD=10, and PVRW=5025.
PV display color is red when DI1=ON, and is white when DI1=OFF.
PVRW: PV red/white switch (Menu: DI.SL)
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
PCMD
Active color PV
display switch
EASY
0: Fixed in white
1: Fixed in red
2: Link to alarm 1 (Alarm OFF:
white, Alarm ON: red)
3: Link to alarm 1 (Alarm OFF:
red, Alarm ON: white)
4: Link to alarm 1 or 2 (Alarm
OFF: white, Alarm ON: red)
5: Link to alarm 1 or 2 (Alarm
OFF: red, Alarm ON: white)
6: PV limit (Within range: white,
Out of range: red)
7: PV limit (Within range: red, Out
of range: white)
10: Link to DI (ON: red, OFF:
white)
DISP
PCH
PV color change
high limit
EASY
Set a display value when in PV
limit.
-19999 to 30000 (Set a value
within the input range.)
Decimal point position depends on
the input type.
PCL
PV color change
low limit
EASY
12.1SettingDisplayFunctions
