4 - 6 TC51 User Guide

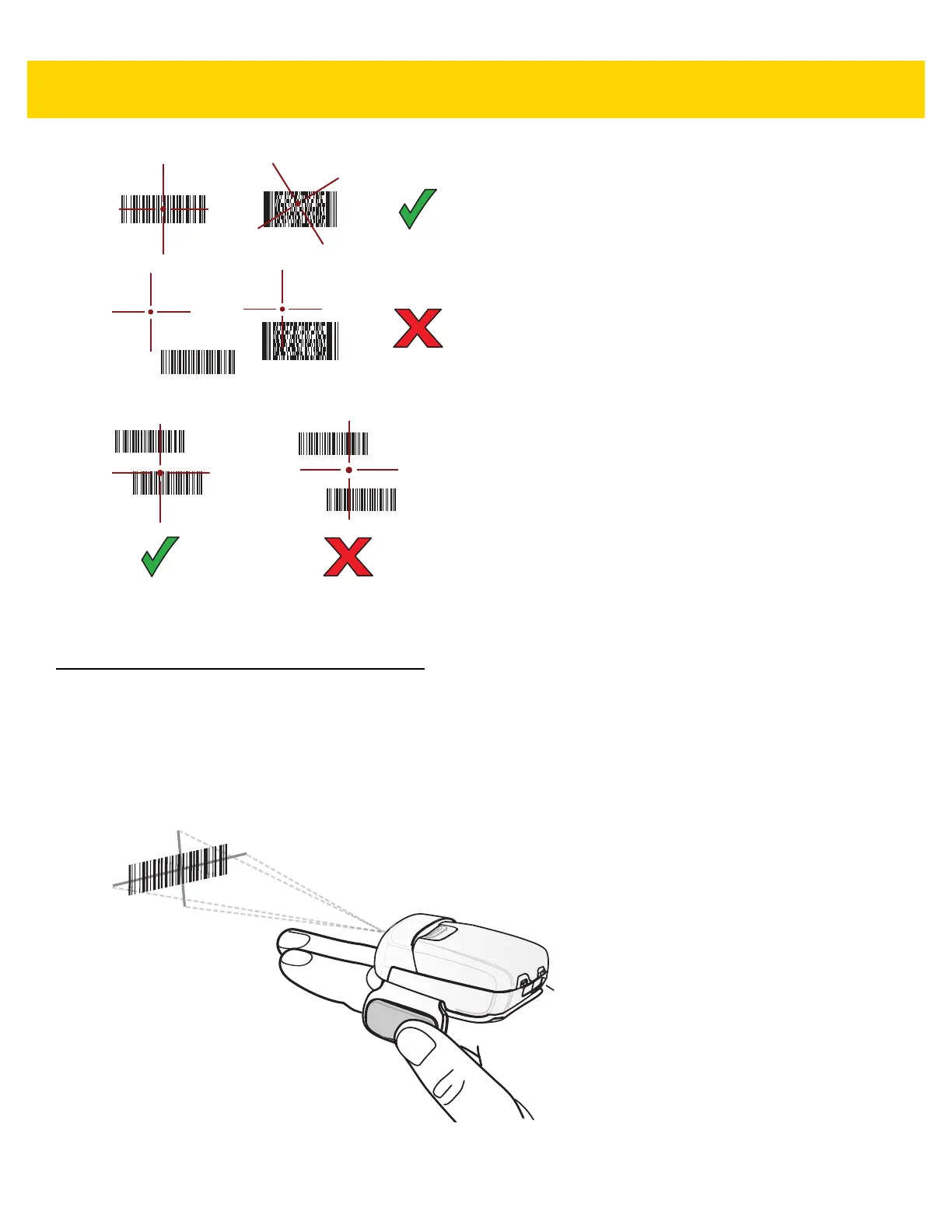

Figure 4-8 Aiming Pattern
Figure 4-9 Pick List Mode with Multiple Bar Codes in Aiming Pattern
4. The captured data appears in the text field.
Bar Code Capture with RS507 Hands-Free Imager
Pair the RS507 with the TC51. See Pairing Using Simple Serial Interface on page 4-11 or Pairing Using Bluetooth
Human Interface Device on page 4-11
for more information.
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the RS507 at a bar code.
Figure 4-10 Bar Code Scanning with RS507

Zebra TC51 Specifications

General

RFID reader	-
Scanner type	2D
Product color	Black, Silver
Phone function	Yes
International Protection (IP) code	IP68
Display diagonal	5 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	32 GB
Internal memory	4 GB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum memory card size	128 GB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	4300 mAh
Number of cores	8
Processor model	650
Processor family	Snapdragon
Processor frequency	1.8 GHz
Processor manufacturer	Qualcomm
Operating system version	6.0
Operating system installed	Android
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
Security algorithms	AES, EAP-TTLS, FIPS 140-2, LEAP, MSCHAPv2, PEAP, TKIP, WEP, WPA, WPA2, WPA2-Enterprise
Rear camera aperture number	2.4
Rear camera resolution (numeric)	13 MP
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	18.6 mm
Width	75.5 mm
Height	155 mm
Weight	249 g
